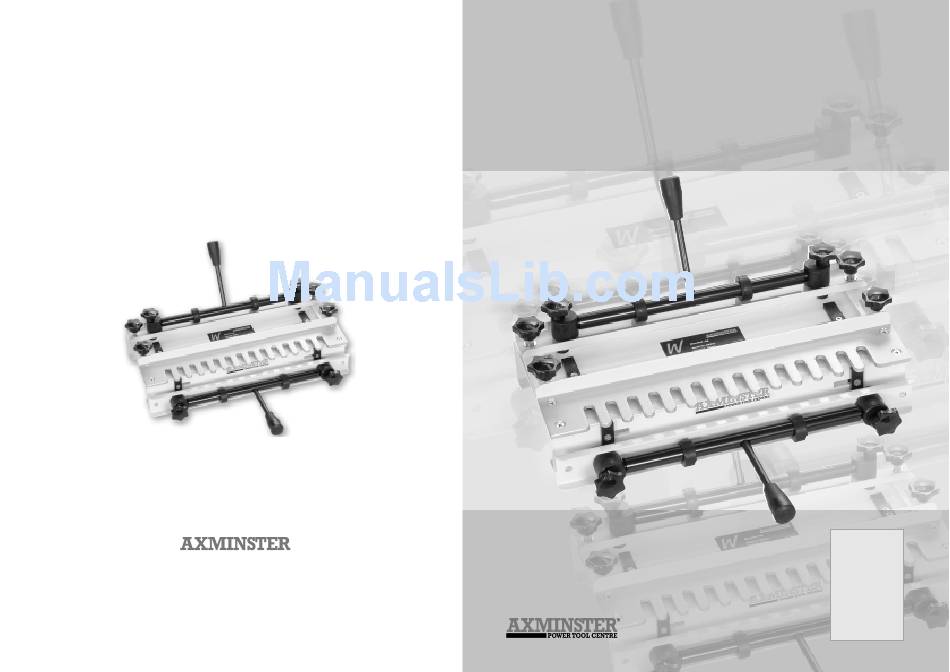

- Page 1 AWDTJ AWDTJ 12" Dovetail Jig Axminster Devon EX13 5HU UK 01297 33656 (International Dialling +44 1297 33656) A X M I N S T E R w w w . a x m i n s t e r . c o . u k...
- Page 2 There is also a fine comb jointing cutter for use with TCT Router Cutter (P217011) the same template. (Order from Axminster Power Tool Centre under the following numbers): DTJFDS Fine Dovetail Set SFJC Fine Comb Joint Cutter...
- Page 3 7. Cutting the Joint Illustration and Parts Description of Dovetail Jig Because there may be a need to alter one or more of the settings in order to get the joint to fit correctly it is wiser to carry out the initial cuts on two trial pieces of timber of the same width and thickness as the final components.
- Page 4 6. Setting the Dovetail Cutter Fit the bearing guided cutter securely into the router collet and then set the cutter depth, Axminster No preferably using a fine height adjuster, until the bottom face of the cutter protrudes below the Maximum Material Width 12"...
- Page 5 5. Assembling Timber into the Jig 3. Setting the End Stops Start by temporarily removing the front clamp bar from the jig. Now draw a pencil line across the Adjust the top and front clamp bars via the hand screws at either end of each bar so that the template, halfway across the first finger and square to the edges of the template.(see Fig 3).
- Page 6 (see Fig 5). 1/16"-1/8" Example:- Using an Axminster AW635R router with a base width of 110mm, a drawer side 15mm thick and the standard cutter supplied with its tip diameter of 14.8mm, the distance from the tips of the template fingers to the vertical face of the backstop should be set at (110/2) +(2 x15) –...
