EMAIL:
Info@auroraaudio.net
Web Site: http://www.auroraaudio.net
Introduction:
Well done for purchasing a hand-built, all discrete class A circuitry GTQ2 stereo microphone pre-
amplifier! It is designed to give you years of superb sounds and service. Improvements on the Mark 3
include an extra mid frequency (1600Hz) to provide choices of 400, 1600 and 3200Hz, and impedance
switching (300Ω and 1200Ω) on the XLR inputs.
Unpacking Instructions:
Carefully remove the unit from the custom foam packing and fit the fuse into the fuse-holder. The
GTQ2 uses a power supply that automatically senses the local voltage so no setting is required. For best
noise performance always use a grounded 3 core / 3 pin a.c. cord. If you connect the GTQ2 to an
unbalanced destination, either use the ¼" rear jack or wire to the XLR pins 2 and 3 only. Leave pin 1
high. This will help prevent ground loops.
The rear jack sockets are mono and should be connected with a mono jack. If a balanced TRS jack is
plugged in, there will be a 6dB loss as there would be no signal on the ring contact.
Operating Guide:

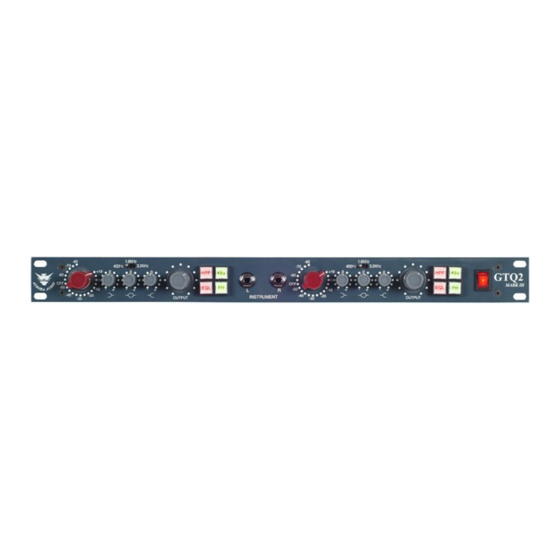

The GTQ2 front panel is shown above. In order for the equalizer to work, the "EQL" button must be
selected and the high pass filter, which rolls off frequencies below 80Hz, is selected when both "EQL"
and "HPF" buttons are pressed.
The "48v" button applies 48 volts dc to the mic input XLR in order to power condenser microphones.
Despite urban legends to the contrary, 48v does not harm ribbon or dynamic microphones but damaged
microphone cables might... so always check that your cables are in good condition!
The "PH" button inverts the phase 180 degrees and should be used to correct any phase issues created
by the mic position or any outboard equipment. Press the button and, if the stereo image sounds weird
with it pressed, you know the phasing is OK and to leave the switch off!
AURORA AUDIO INTERNATIONAL
GTQ2 Mark 3 Instruction Sheet
1520 NORTH CAHUENGA BOULEVARD
HOLLYWOOD, CA90028
Telephone: 323 462 6136
Fax :
323 462 6137
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Aurora Audio GTQ2 MKIII
Summary of Contents for Aurora Audio GTQ2 MKIII
- Page 1 AURORA AUDIO INTERNATIONAL 1520 NORTH CAHUENGA BOULEVARD HOLLYWOOD, CA90028 EMAIL: Info@auroraaudio.net Telephone: 323 462 6136 Web Site: http://www.auroraaudio.net Fax : 323 462 6137 GTQ2 Mark 3 Instruction Sheet Introduction: Well done for purchasing a hand-built, all discrete class A circuitry GTQ2 stereo microphone pre- amplifier! It is designed to give you years of superb sounds and service.
- Page 2 The GTQ2 can accommodate any signal you care to throw at it, including high-level line inputs. The sensitivity switch provides gain adjustment from +80dB to –10dB and the level pot allows for fine adjustments. The level pot has an audio taper and is –20dB at half rotation. I would recommend using the level pot between ¾...
- Page 3 Warranty: ONE YEAR PARTS AND LABOR LIMITED WARRANTY Aurora Audio International warrants this GTQ2 unit against defects in workmanship for a period of one year and parts for a period of one year from receipt by the original end user. This warranty shall not...
- Page 4 Please contact us at the address below and we will provide you with the necessary information to return the unit to us for proper disposal. Aurora Audio, 1520 North Cahuenga Boulevard, Hollywood CA90028 Phone +1 323 462 6136 Fax +1 323 462 6137 Email info@auroraaudio.net...
