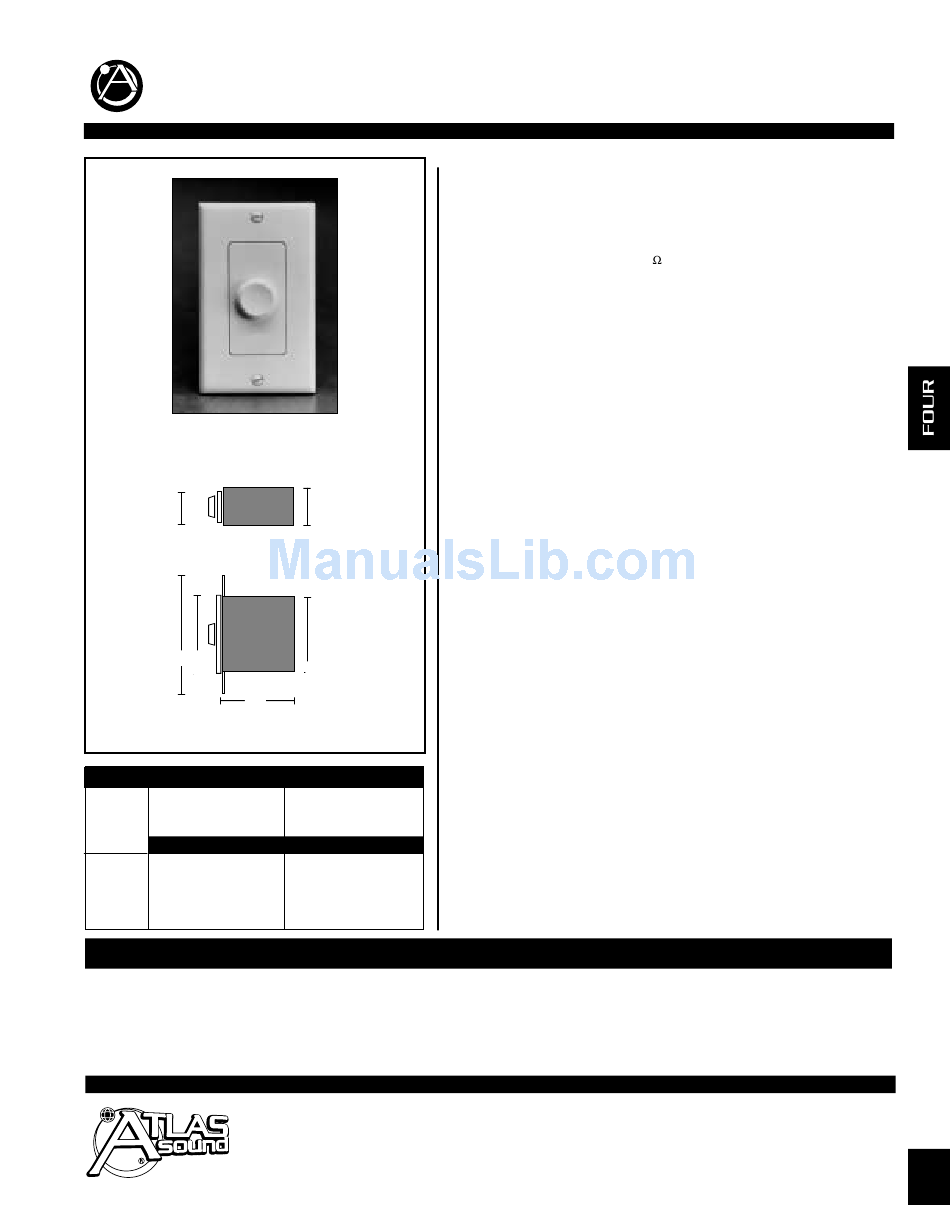

Atlas WhisperTouch DWT-8 Series Installation Instructions

DWT-8 Series
Shown with Decora-style subplate (Supplied)
1 5 ⁄ "
1 6
Top View
4 1 ⁄ "
8
2 5 ⁄ "
8
2 1 ⁄ "
2
Side View

IMPEDANCE JUMPER SETTINGS

MAX. QTY. 8-OHM
REQUIRED
LOUDSPEAKER PAIRS
AMPLIFIER
OUTPUT JUMPER SETTING
IMPEDANCE
@1X @2X @4X @8X @1X @2X @4X @8X
8-Ohm 1 2 4
4-Ohm 2 4 8 16
2-Ohm 4 8 16 32
1-Ohm 8 16 32 64
a
MODEL POWER INSERTION
SERIES* RATING IMP.
DWT-8 50 Watts 8 Ohm
* uffix model with color: ivory(-I), white (-W).
***E.O. Box by others. Carlon Model B120A or equivalent recommended for all 8-ohm models.
1601 JACK MCKAY BLVD. / ENNIS, TEXAS 75119 U.S.A. / TELEPHONE: (800) 876-3333 / FAX (800) 765-3435
© 2001 Atlas Sound LP
"ORIGINAL" WHISPERTOUCH
8-OHM STEREO VOLUME CONTROLS
1 11 ⁄ "
1 6
2 13 ⁄ "
1 6
MAX. QTY.4-OHM
LOUDSPEAKER PAIRS
JUMPER SETTING
a
8 0 1 2 4
1 2 4 8
2 4 8 16
4 8 16 32
FREQUENCY
LOSS RESPONSE STEPS
.5dB 20 Hz - 6 @ 3dB
20 kHz 3 @ 6dB
(-3dB, +0) 1 @ 9dB
1@ 28dB
(11 Steps Total, plus "off")
Specifications subject to change without notice
Printed in U.S.A.
®

FEATURES

• Provides Precision Level Control in 3dB Increments (Lowest 6 Steps)
• 50-Watt Rating Achieves Clear, Stereo Music Reproduction in 8-Ohm Applications
• Impedance-Matching Capability of 2X, 4X & 8X Provides Flexibility in System Design
• Low Profile Styling is a Favorite for Architects and Designers
• 1x Setting Allows Use As A Standard 8 Non-Impedance Matching Volume Control
• Decora-Style Plate Available in White or Ivory

APPLICATION

Superior styling of WhisperTouch controls combined with their fine-tune level
capability make them ideal for residential/custom installation and professional
applications of all kinds including: private homes, medical and legal offices,
dental groups, studios, and high-profile businesses that demand clear music
reproduction and precise level control.

GENERAL DESCRIPTION

WhisperTouch volume controls provide for clear, distortion-free stereo music
reproduction when one or multiple loudspeaker pairs are powered by a single
amplifier. Model DWT-8 is an 8 ohm device with a decora-style wall plate.
Frequency response is 20Hz - 20kHz (-3dB, +0). Attenuation is accomplished
in ten steps plus positive off. The first six steps are 3dB for fine tune control at
low listening levels, the next three steps are 6dB, followed by one 9dB step
and finally one 28dB step before "off".
The low-profile knob is pleasant to the touch and adjusts easily. It measures
15 ⁄ " Dia. and projects a mere 1 ⁄ " for unobtrusive yet functional operation. The
1 6 2
control operates smoothly with fine detents and make-before-break contacts
for gradual and un-interrupted transition when changing volume settings. High
quality units require 12 to 18-gauge wire and terminate with convenient plug-in
connectors. Assemblies measure 2
E.O. Box (by others). Specify plate color: suffix (-I) for ivory or (-W) for white.

ARCHITECT AND ENGINEER SPECIFICATIONS

Attenuator for stereo, 8-ohm application shall be Atlas Sound
WhisperTouch Model _______. Attenuation shall be accomplished in ten
steps with a positive off position. The first six steps shall be 3dB, the next
three steps shall be 6dB, followed by one 9dB step and one 28dB step for
a total attenuation of 73dB. Insertion loss shall be no greater than .5dB.
Unit shall mount to a standard 20 cu. in. E.O. box. The wall plate shall be
decora-style, finished in ______ (ivory or white) with a matching
low-profile knob.
PLATE
TYPE STYLE
Stereo Decora**
1 5 ⁄ " x 2 5 ⁄ "
1 6 8
** Decora ® is a registered Trademark of Leviton Corporation.
000801
3 ⁄ " deep and mount into a standard 20 cu.in.
4
REQUIRES
(ORDER SEPARATELY)
12-18 Gauge Wire &
20 cu. in. E.O. Box (by others***)
PN 389516
DWT-8
WEIGHT
1 lb
(.45 Kg)
265
SL4-1570
