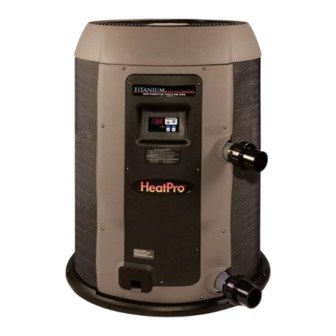

Hayward HeatPro® Owner's Manual

Pool / spa heaters
Hide thumbs Also See for HeatPro®:
Table of Contents

Advertisement

Quick Links

See also: Installation Manual
OWNER'S MANUAL
Installation, Operation and Service
HEAT PUMP STYLE
POOL / SPA
HEATERS
Jan. 2004
TA2267

Advertisement

Table of Contents
loading

Related Manuals for Hayward HeatPro®

Summary of Contents for Hayward HeatPro®

  • Page 1 OWNER’S MANUAL Installation, Operation and Service HEAT PUMP STYLE POOL / SPA HEATERS Jan. 2004 TA2267...

  • Page 2: Table Of Contents

    Owner’s Manual Operating Principles How a heat pump works…………...………………………………………………….2 Get familiar with your heat pump ………………………………………………...….3 Temperature control systems for each model……………………….………...……4-9 Installation Specifications and Procedures eceipt inspection of unit……………………………………………………...……10 Determining optimum location…………………………………………………..….10 o Clearance…………………………………………………………….………….11 o Placement………………………………………………………………………..11 o Drainage…………………………………………………………………………11 Other Precautions………………………………………………………………..12 III.

  • Page 3: How A Heat Pump Works

    How a Heat Pump Works Hayward Heat Pumps take heat from the environment and use it to heat your pool water. During heat pump operation, liquid freon from inside the unit is pumped through the system (A) and is turned into a heated gas. This happens when heat is taken from the surrounding air (B) as it is drawn through the evaporator by the fan.

  • Page 4: Temperature Control Systems For Each Model

    Heat Pump Pool / Spa Heater Owner’s Manual Get Familiar with Your Heat Pump Safety Features Hayward heat pumps are equipped with safeguards that will stop operation to protect your unit in case of the following events: Excessively high refrigerant pressure...
  • Page 5 Analog Thermostat Power Indicator Light: Shows that proper power is supplied. Heater Indicator Light: Shows the unit is operating normally and the thermostat is making a demand for heat. Temperature Control Knob: Adjust knob to desired range, using the diagram on the left as a guide. The 105 F thermostat has a temperature range from 60 F –...
  • Page 6 Heat Pump Pool / Spa Heater Owner’s Manual Dual Mechanical Thermostat Approx. 83 F 105 F 60 F Power Indicator Light: Shows that power is supplied. Heat Indicator Light: Shows that the unit is operating normally and the thermostat is making a demand for heat.
  • Page 7 PST-1 Power Indicator Light: Indicates that power supplied to the heat pump but does not indicate that the unit is in operation. Heating Indicator Light: Shows the unit is operating normally and the thermostat is making a demand for heat. Display: When power is supplied to the unit, the display will...
  • Page 8 Heat Pump Pool / Spa Heater Owner’s Manual PST-4 The PST-4 temperature control is similar to the PST-1 shown above, with two differences. (1) The PST-4 has a Time Clock Override. (2) The PST-4 has no power indicator light. Please read the data for the PST-1 on the previous page before continuing. It will provide you with descriptions of button functions and setpoint programming.
  • Page 9 PST-5 Heat/Cool The PST-5 is an upgrade of the PST-4 with the addition of an AUTO function. This allows the heat pump to heat or cool the water automatically to maintain the setpoint. The PST-5 also has an optional Time Clock Override (TCO-This feature must be connected by an electrician to operate.) Read the instructions for the PST-1 and PST-4 fully before continuing.

  • Page 10: Receipt Inspection Of Unit

    Means of draining condenser and rainwater. Insulation of long water lines (over 25 ft.) from heater to pool. The installation of the unit in a fully enclosed area (i.e. garage, shed, etc.) is not recommended. Consult HAYWARD for indoor pool application analysis.

  • Page 11: Clearance

    Clearance A minimum of two feet of clearance from walls, shrubbery, equipment, etc. is required around the entire pump circumference. This allows for ample air intake. No less than 6 feet clearance above the heat pump is required to prevent re-circulation of air. We recommend not placing the unit underneath eaves, decks, or porches, as this causes recirculation of discharged air.

  • Page 12: Other Precautions

    Heat Pump Pool / Spa Heater Owner’s Manual Other Precautions The heat pump should not be placed near sprinkler systems, especially those where fertilizer is added. This is very corrosive and, over time, will severely damage the unit. If you live in an oceanfront area, the heat pump should be placed out of direct spray of sand and salt.

  • Page 13: Efficient Practices

    Efficient Practices Using A Pool Cover POOL COVERS ARE STRONGLY RECOMMENDED. A pool loses heat in several ways but testing shows that evaporative cooling (the cooling effect created by water evaporating from the surface of the pool) accounts for approximately 75% of a pool’s heat loss. However, if a pool is covered when it is not in use, most evaporative cooling can be prevented.

  • Page 14: Cleaning Procedures

    Heat Pump Pool / Spa Heater Owner’s Manual Cleaning Procedures Fan Guard Disconnect power to the unit (usually at the circuit breaker in your house). Verify that power is Acorn Nut off by checking the display for lights. If no lights are present, proceed to the next step.

  • Page 15: Occasional / Weekend Use

    Allow the heat pump pool heater and the pool filter pump It will take several to operate continuously until the desired pool water temperature is reached. This is best accomplished by days of continuous removing the pool pump timer cogs (stops). This prevents operation for your the pump from cycling off and allows for continuous pool to heat up to...

  • Page 16: Service Procedures

    4. Is the heat pump thermostat set at a high enough level to enable the system to turn on? Adjust the thermostat to a higher setting. 5. Check the outside temperature. HAYWARD heat pumps will not turn on when the outside air temperatures drop near 45 degrees.

  • Page 17: Troubleshooting Guide

    Turn off the filter pump. If the unit is still running after 2 minutes, Electrical component failure turn off the power to the unit and contact HAYWARD for service. Check valve settings and ensure water flow is sufficient Bad valve or improper water flow (is the filter pump running continually?) If heat pump continues to cycle, turn unit off to prevent compressor damage.
  • Page 18 Check breaker and insure that the unit is properly No power to heat pump power supply installed. Faulty electrical component Call HAYWARD service department for info. Call HAYWARD service department for info. • • Outside temperature too Check ambient temperature, if lower than 50 F, High / Low Pressure Switch •...

  • Page 19: Warranty

    Energy Utilization Systems, Inc. (HAYWARD) warrants to the original installed location, the HAYWARD heat pump pool heater to be free of defects in materials and workmanship for a period of five years. The compressor part has a limited ten-year warranty, a pro rata basis for years 6-10. This warranty covers the cost of parts and labor for five years and starts from the date of purchase or within six months of date of manufacture, whichever is first.

  • Page 20: Installation Guide

    Heat Pump Pool / Spa Heater Owner’s Manual Installation Guide Receipt Inspection of Unit………………………………………………………10 Determining Optimum Location……………………………………………….10 Refer to Section II in the Owners’ Manual………………………10-12 Electrical Connections…………………………………………….…………….21 Model Specifications………………………………………………...21 Wiring Recommendations…………………………………………...22 Wiring Diagrams…………………………………………………23-25 Plumbing Specifications………………………………………………….……..26 Typical Installation Layout………………………………...……..27 Flow Rate…………………………………………………………28 External By-pass………………………………………………….28 Unions…………………………………………………………….28 Installation of Pool Heater Above Pool Surface……………………….………28...

  • Page 21: Electrical Connections

    Electrical Connections All units are equipped with an electrical wiring schematic inside the electrical panel. If one is not provided, please contact the factory at 1-800-432-8387 to obtain one. Warning! Disengage main power disconnect before attempting installation. Power connections supplied to the unit must be in accordance with national and local electric code.

  • Page 22: Wiring Recommendations

    Heat Pump Pool / Spa Heater Owner’s Manual Wiring Recommendations 42** 52** Min Wire Min. Wire Ga. For runs over 50 ft. Wire alloy Copper Copper Copper Copper Fuse- HACR or Time Delayed Power 3450 5800 3450 5800 consumption –Watts Note: It is not necessary to remove the entire front panel to make electrical connections.

  • Page 23: Wiring Diagrams

    This wiring diagram is for use with all units that have digital thermostats. It is also for use with units that have the optional TCO. FA N M O TO R B R O W N Y ELLO W R ED R E D TH ER M O S TA T A M B ER...
  • Page 24 Heat Pump Pool / Spa Heater Owner’s Manual This wiring diagram is for use with all units that have mechanical single thermostats. This wiring diagram is for use with H/C units.
  • Page 25 This wiring diagram is for use with all units that have mechanical dual thermostats.

  • Page 26: Plumbing Specifications

    Heat Pump Pool / Spa Heater Owner’s Manual Plumbing Specifications Typical Installation Layout PIPING CONNECTIONS Note: A detachable connection (union) must be utilized immediately adjacent the heater to facilitate servicing and winterizing the unit. (See example on next page) The heat pump pool heater is designed for easy piping connections into the pool water filtering system. The pool heater condenser (heat exchanger) is provided with 1 ½”...

  • Page 28: Flowrate

    Heat Pump Pool / Spa Heater Owner’s Manual FLOWRATE MODELS: PE 42** / PE22** / HP-4* / PE 32** The 3 ¼ HP is designed for nominal water flow of 45 gpm through the condenser. A minimum flow of 20 gpm is required to insure sufficient heat removal from the condenser, thus avoiding overheating the unit.

  • Page 29: Installation Of Multiple Heat Pumps

    Series plumbing reduces efficiencies of each heat pump downstream. The diagram below shows installation of two units in parallel. Contact HAYWARD for additional information if installing more than two units.

  • Page 30: Installation In Combination With Solar Or Gas Heaters

    INSTALLATION IN COMBINATION WITH SOLAR OR GAS HEATERS If you are installing a heat pump in combination with any other type of heating device, please call the HAYWARD service department. We will advise you of installation practices that will help keep your warranty valid.

  • Page 31: Initial Start-Up

    INITIAL START-UP - (Electronic Control Systems Only) After completing the electrical and piping connections to the pool heater, follow the procedures outlined below to insure that the pool heater is functioning properly. Before proceeding, MAKE CERTAIN there are no air or water leaks in any plumbing connections or piping and water flow is within the proper flow rate ranges: MODEL PE 42: 20 gpm min.

  • Page 32: Connecting To Remote Systems

    Heat Pump Pool / Spa Heater Owner’s Manual Connecting to Remote Systems Most HAYWARD heat pumps are compatible with one or more of the remote systems in the pool and spa industry. The single mechanical thermostat units are compatible with the Jandy AquaLink, Compool, and Hayward remote systems, but are not compatible with the Intermatic or Jandy AquaSwitch remote systems.
  • Page 33 Note: The thermostats on the heater still control the temperature of the water. The diagram below shows where to connect all of the remote systems to the HAYWARD heaters with digital thermostats. Thermostat Interface Board in the unit control box...

  • Page 34: Connecting The Tco

    Heat Pump Pool / Spa Heater Owner’s Manual Time Clock Override (TCO) Function Purpose: This function provides another way to maintain pool temperature. Most pool systems use a time clock to control the pool’s filter pump. The time clock may have the filter pump off for several hours at a time. Since the filter pump must be flowing water through the heat pump for heating of the water to occur, the Time Clock Override (TCO) function allows a user to control the pool filter pump by temporarily bypassing the time clock.
  • Page 35 A W S M O D E LS R E C O M M E N D E D W IR IN G F O R T IM E C LO C K O V E R R ID E - C A U T IO N !!! TH IS M O D EL IS N O TE: TH E...

  • Page 36: Troubleshooting Guide

    Heat Pump Pool / Spa Heater Owner’s Manual Troubleshooting Guide First check the installation of the unit to assure it is installed following the recommendations detailed in the installation guide. Check the electrical hook-up. Make sure the breaker or disconnect is sized correctly and is on.
  • Page 37 Unit is running but not heating: Is the fan turning? Is the air coming out of the top cooler than ambient air temperature? Check the thermostat. Make sure it is turned up high enough. If the heat pump does not appear to be heating because it is not detectable to the touch, remember the difference at any given flow rate may be only a degree or two.

  • Page 38: Obtaining Service

    4. Is the Heat Pump Thermostat set at a high enough level to enable the system to turn on? Adjust the thermostat to a higher setting. 5. Check the outside temperature. HAYWARD Heat Pumps will not turn on when the outside air temperatures drop near 45 degrees.
  • Page 39 Notes:...
  • Page 40 Heat Pump Pool / Spa Heater Owner’s Manual Notes:...
  • Page 41 Notes:...
  • Page 42 1. Fill out the reverse side of this card. 2. Cut card along the edges and drop it in the mail to us. ALONG EDGES Hayward Pool Products 1 Hayward Industrial Drive Clemmons, NC 27012 ATTN: HEAT PUMP WARRANTY DEPT.
  • Page 43 Celcius Fahrenheit Celcius Fahrenheit...
