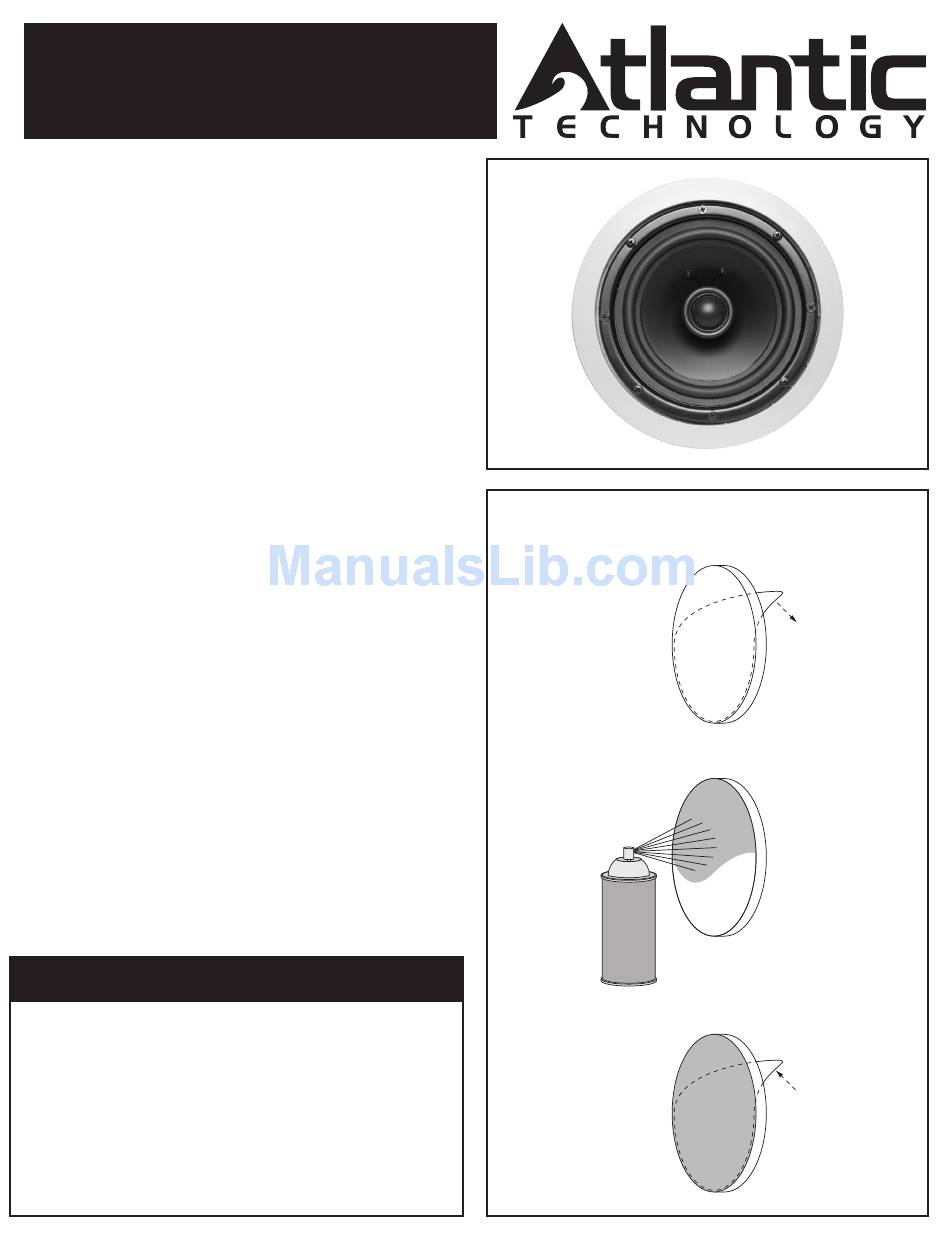

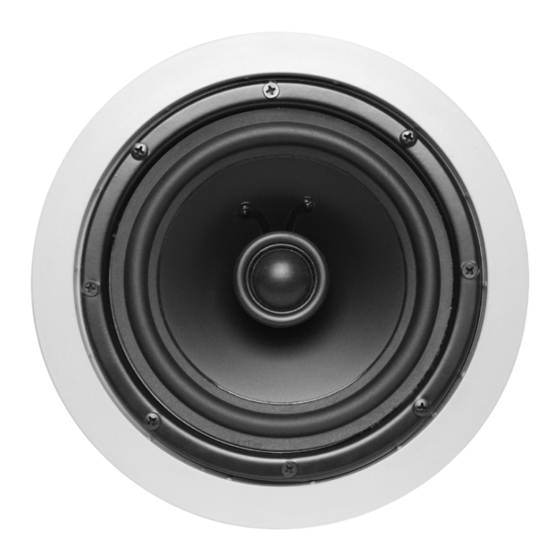

Atlantic Technology ICTS-6.1 Installation Instructions

ICTS-6.1-IP
Ceiling Speakers
™

Installation Instructions

Thank you for purchasing Atlantic Technology speaker products. These
high quality 2-way speakers solve a myriad of surround sound and
distributed audio installation problems. We work very hard to ensure
that all of our speakers consistently deliver exceptional performance
and value.
We hope you enjoy them to their fullest. Please take a moment to read
these instructions so you can get the most from your speakers.
Mounting Specifications
These speakers are intended for mounting in a ceiling, in material rang-
ing from ½ inch to 1 inch thick. They require at least 4
as measured from the front surface of the ceiling .The cutout opening
for the ICTS-6.1 is 7 ⁄ inches in diameter (3
3
8
speakers will work equally as well in a wall as in a ceiling; however note
that they require more mounting depth than is normally available in a
2x4 studded wall.

Mounting Locations

Generally, it's best to keep the speaker at least 24 inches away from any
nearby wall boundaries (wall/corner), since placing any speaker in
close proximity to other boundary surfaces will artificially reinforce
the upper bass/lower midrange sound, adversely "coloring" the sound
that the speaker produces.
The ICTS-6.1's 1-inch dome tweeter is mounted in a pivoting housing,
so it to can be directed precisely towards the listening area for best
sound.
Specifications
Dimensions
Cutout Dimensions
Mounting Depth (from front surface of ceiling)
New Construction Bracket (optional)
In-ceiling Back Box (optional)
Frequency Response
Sensitivity
Recommended Amplifier Power
Impedance
Woofer
Tweeter
Net Weight
⁄ inches of depth
5
8
⁄ inches radius). These
11
16
8 ⁄ " (220 mm)
9
16
7 ⁄ " (188 mm)
3
8
4 ⁄ " (118 mm)
5
8
IC-NC-6.1
IC-BOX-6/8
59-20kHz +/- 3dB
88dB 1Watt/1 Meter
10-100 Watts RMS
6 ohms
6 ½" Polypropylene cone
1" Pivoting soft dome
4.6 Lbs (2.1 kg)
Model ICTS-6.1
When painting the grille...
1. Remove Scrim
2. Paint Grille
3. Reapply Scrim
