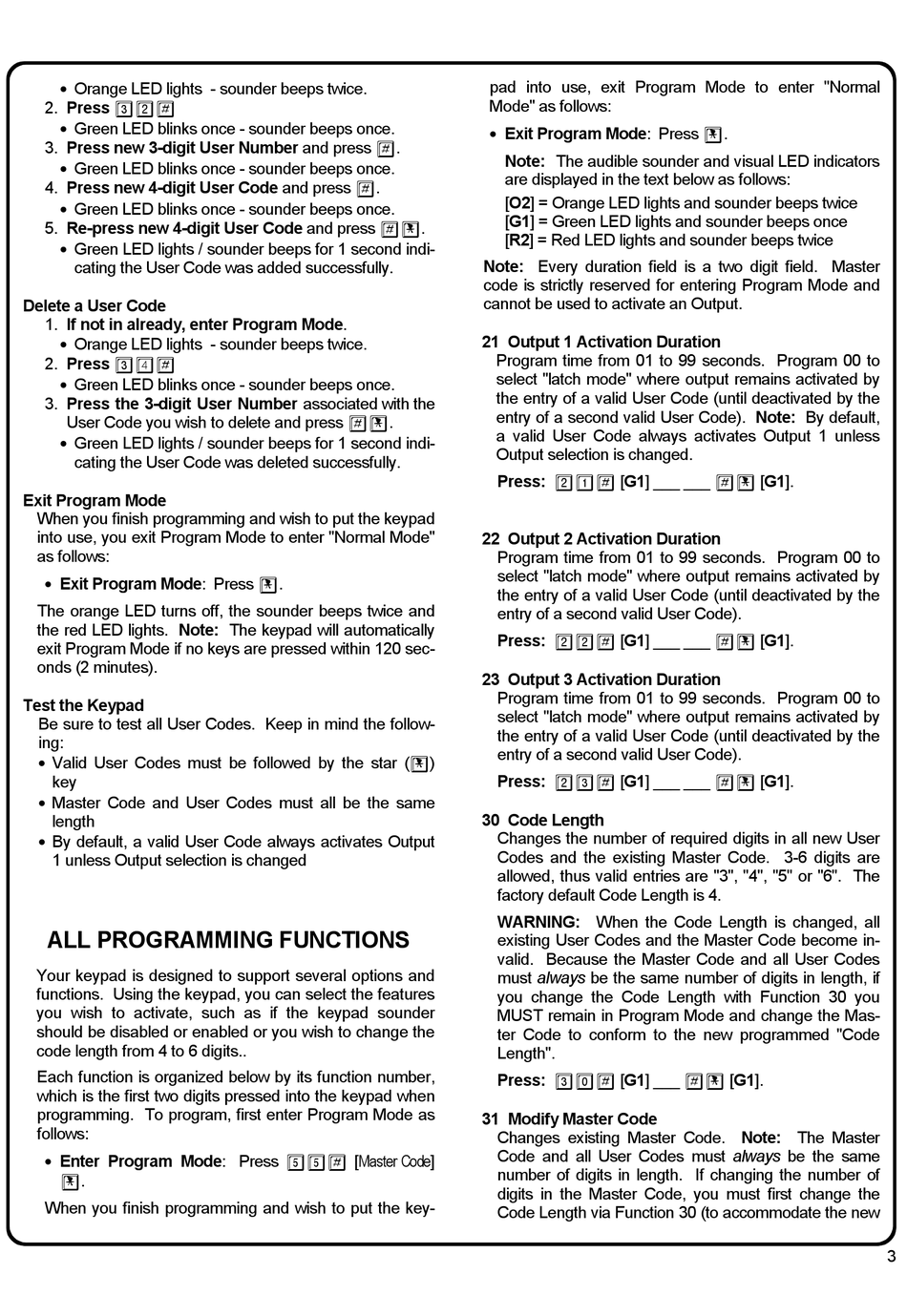

Alarm Lock A-100WP Wiring & Programming Instructions Manual page 3

• Orange LED lights - sounder beeps twice.
32#
2. Press
• Green LED blinks once - sounder beeps once.
3. Press new 3-digit User Number and press
• Green LED blinks once - sounder beeps once.
4. Press new 4-digit User Code and press
• Green LED blinks once - sounder beeps once.
5. Re-press new 4-digit User Code and press
• Green LED lights / sounder beeps for 1 second indi-
cating the User Code was added successfully.
Delete a User Code
1. If not in already, enter Program Mode.
• Orange LED lights - sounder beeps twice.
34#
2. Press
• Green LED blinks once - sounder beeps once.
3. Press the 3-digit User Number associated with the
User Code you wish to delete and press
• Green LED lights / sounder beeps for 1 second indi-
cating the User Code was deleted successfully.
Exit Program Mode
When you finish programming and wish to put the keypad
into use, you exit Program Mode to enter "Normal Mode"
as follows:
• Exit Program Mode: Press
The orange LED turns off, the sounder beeps twice and
the red LED lights. Note: The keypad will automatically
exit Program Mode if no keys are pressed within 120 sec-
onds (2 minutes).
Test the Keypad
Be sure to test all User Codes. Keep in mind the follow-
ing:
• Valid User Codes must be followed by the star (
key
• Master Code and User Codes must all be the same
length
• By default, a valid User Code always activates Output
1 unless Output selection is changed
ALL PROGRAMMING FUNCTIONS
Your keypad is designed to support several options and
functions. Using the keypad, you can select the features
you wish to activate, such as if the keypad sounder
should be disabled or enabled or you wish to change the
code length from 4 to 6 digits..
Each function is organized below by its function number,
which is the first two digits pressed into the keypad when
programming. To program, first enter Program Mode as
follows:
• Enter Program Mode: Press
*
.
When you finish programming and wish to put the key-
#
.
#
.
#*
.
#*
.
*
.
*
55#
[Master Code]
pad into use, exit Program Mode to enter "Normal
Mode" as follows:
• Exit Program Mode: Press
Note: The audible sounder and visual LED indicators
are displayed in the text below as follows:
[O2] = Orange LED lights and sounder beeps twice
[G1] = Green LED lights and sounder beeps once
[R2] = Red LED lights and sounder beeps twice
Note: Every duration field is a two digit field. Master
code is strictly reserved for entering Program Mode and
cannot be used to activate an Output.
21 Output 1 Activation Duration
Program time from 01 to 99 seconds. Program 00 to
select "latch mode" where output remains activated by
the entry of a valid User Code (until deactivated by the
entry of a second valid User Code). Note: By default,
a valid User Code always activates Output 1 unless
Output selection is changed.
21#
Press:
22 Output 2 Activation Duration
Program time from 01 to 99 seconds. Program 00 to
select "latch mode" where output remains activated by
the entry of a valid User Code (until deactivated by the
entry of a second valid User Code).
22#
Press:
23 Output 3 Activation Duration
Program time from 01 to 99 seconds. Program 00 to
select "latch mode" where output remains activated by
the entry of a valid User Code (until deactivated by the
entry of a second valid User Code).
)
23#
Press:
30 Code Length
Changes the number of required digits in all new User
Codes and the existing Master Code. 3-6 digits are
allowed, thus valid entries are "3", "4", "5" or "6". The
factory default Code Length is 4.
WARNING: When the Code Length is changed, all
existing User Codes and the Master Code become in-
valid. Because the Master Code and all User Codes
must always be the same number of digits in length, if
you change the Code Length with Function 30 you
MUST remain in Program Mode and change the Mas-
ter Code to conform to the new programmed "Code
Length".
30#
Press:
31 Modify Master Code
Changes existing Master Code. Note: The Master
Code and all User Codes must always be the same
number of digits in length. If changing the number of
digits in the Master Code, you must first change the
Code Length via Function 30 (to accommodate the new
*
.
#*
[G1] ___ ___ [G1].
#*
[G1] ___ ___ [G1].
#*
[G1] ___ ___ [G1].
#*
[G1] ___ [G1].
3
