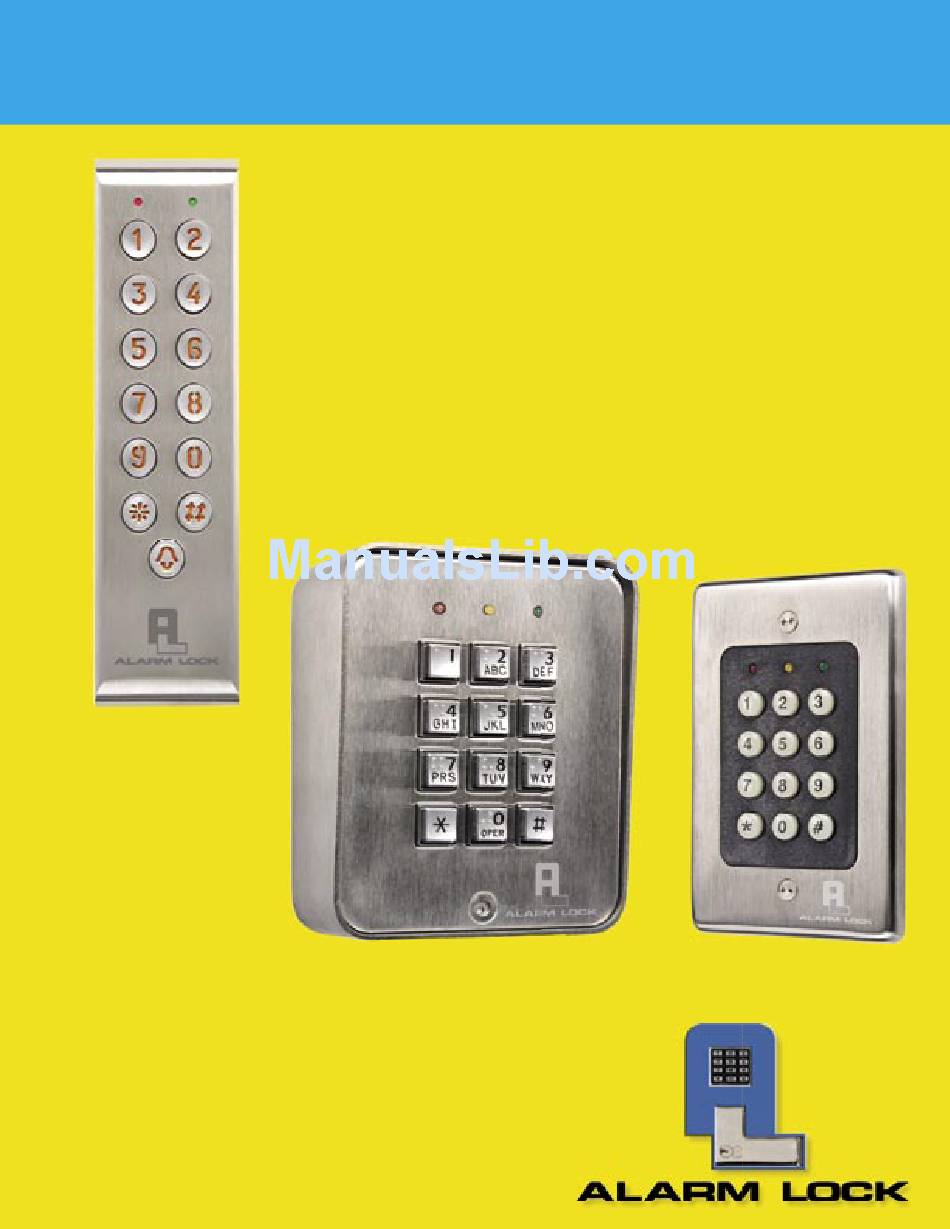

Alarm Lock A-100 - A-100IMWP Manual

A-Series: keypads
Self-contained stainless steel
keypads for single door access
control
Alarm Lock A-Series family of keypads is designed to control access of a single
entry point for facilities with up to 150 users. Three rugged stainless steel
models are available to meet most residential and commercial environments.
Each user is assigned personal identifi cation number from three to six digits
long. Audible feedback verifi es each key press and all programming is easily
accomplished from the keypad, eliminating the need for additional software
packages. The non-volatile EEPROM memory retains all programmed entry
codes. Outputs #1 and #2 are Form C relay contacts, while output #3 is an open
collector transistor. Authorized door open time can be programmed for any
duration from 1 to 99 seconds.

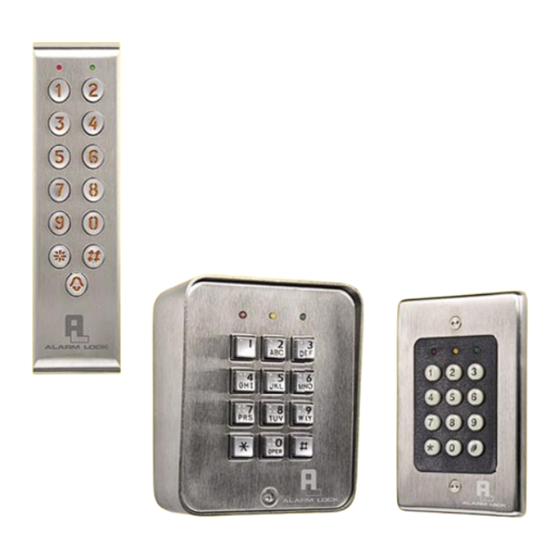

A-100IMWP
Outdoor Illuminated
Mullion Keypad
A-100WP
A-100
Outdoor Sealed Environment
Indoor Stainless Steel Keypad
Keypad
