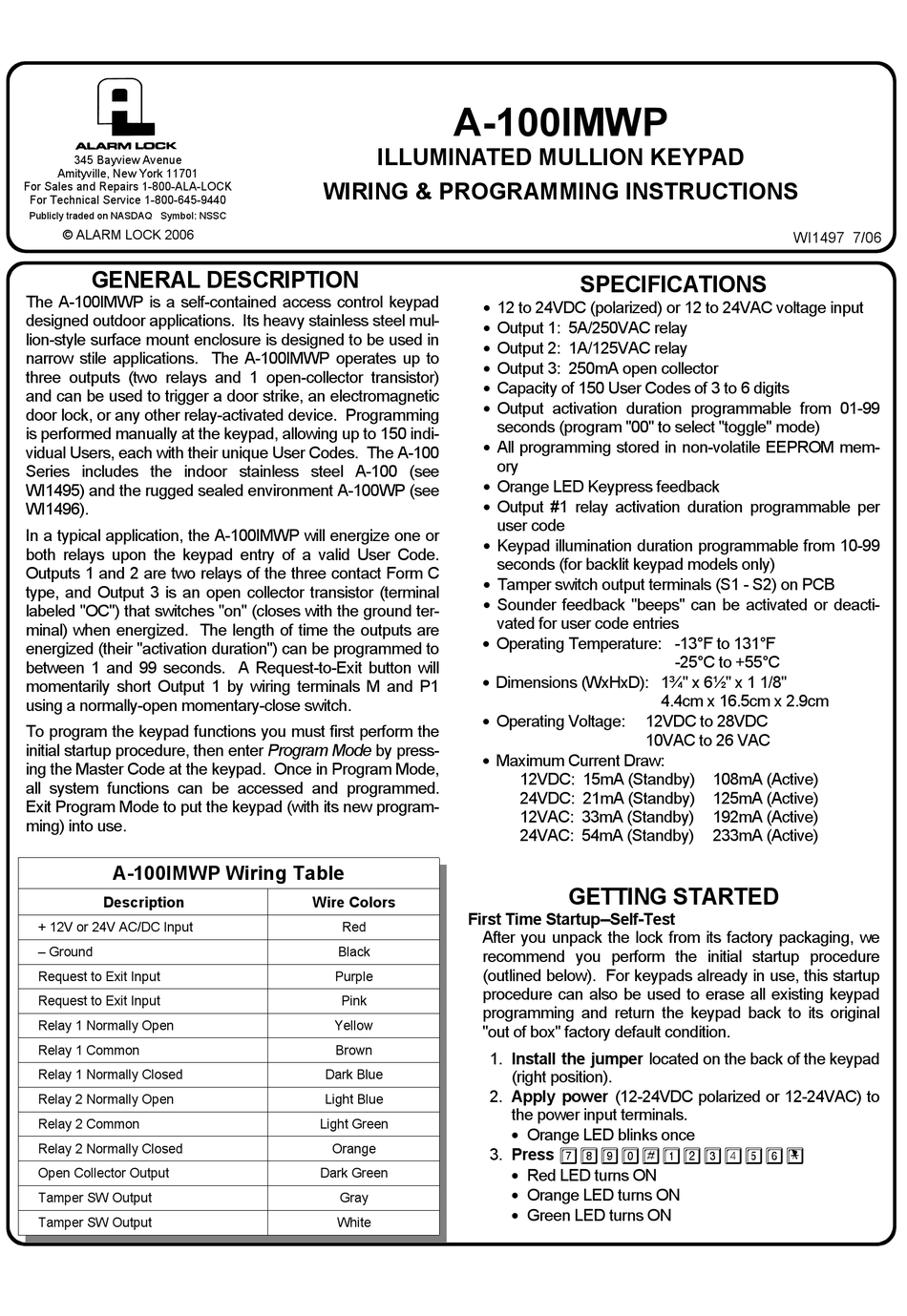

Alarm Lock A-100IMWP Wiring & Programming Instructions Manual

345 Bayview Avenue
Amityville, New York 11701
For Sales and Repairs 1-800-ALA-LOCK
For Technical Service 1-800-645-9440
Publicly traded on NASDAQ Symbol: NSSC
© ALARM LOCK 2006

GENERAL DESCRIPTION

The A-100IMWP is a self-contained access control keypad
designed outdoor applications. Its heavy stainless steel mul-
lion-style surface mount enclosure is designed to be used in
narrow stile applications. The A-100IMWP operates up to
three outputs (two relays and 1 open-collector transistor)
and can be used to trigger a door strike, an electromagnetic
door lock, or any other relay-activated device. Programming
is performed manually at the keypad, allowing up to 150 indi-
vidual Users, each with their unique User Codes. The A-100
Series includes the indoor stainless steel A-100 (see
WI1495) and the rugged sealed environment A-100WP (see
WI1496).
In a typical application, the A-100IMWP will energize one or
both relays upon the keypad entry of a valid User Code.
Outputs 1 and 2 are two relays of the three contact Form C
type, and Output 3 is an open collector transistor (terminal
labeled "OC") that switches "on" (closes with the ground ter-
minal) when energized. The length of time the outputs are
energized (their "activation duration") can be programmed to
between 1 and 99 seconds. A Request-to-Exit button will
momentarily short Output 1 by wiring terminals M and P1
using a normally-open momentary-close switch.
To program the keypad functions you must first perform the
initial startup procedure, then enter Program Mode by press-
ing the Master Code at the keypad. Once in Program Mode,
all system functions can be accessed and programmed.
Exit Program Mode to put the keypad (with its new program-
ming) into use.
A-100IMWP Wiring Table
Description
+ 12V or 24V AC/DC Input
– Ground
Request to Exit Input
Request to Exit Input
Relay 1 Normally Open
Relay 1 Common
Relay 1 Normally Closed
Relay 2 Normally Open
Relay 2 Common
Relay 2 Normally Closed
Open Collector Output
Tamper SW Output
Tamper SW Output
A-100IMWP
ILLUMINATED MULLION KEYPAD
WIRING & PROGRAMMING INSTRUCTIONS
• Operating Temperature: -13°F to 131°F
• Dimensions (WxHxD): 1¾" x 6½" x 1 1/8"
• Operating Voltage:
• Maximum Current Draw:
Wire Colors
First Time Startup--Self-Test
Red
After you unpack the lock from its factory packaging, we
Black
recommend you perform the initial startup procedure
(outlined below). For keypads already in use, this startup
Purple
procedure can also be used to erase all existing keypad
Pink
programming and return the keypad back to its original
Yellow
"out of box" factory default condition.
Brown
Dark Blue
Light Blue
Light Green
Orange
Dark Green
Gray
White

SPECIFICATIONS

• 12 to 24VDC (polarized) or 12 to 24VAC voltage input
• Output 1: 5A/250VAC relay
• Output 2: 1A/125VAC relay
• Output 3: 250mA open collector
• Capacity of 150 User Codes of 3 to 6 digits
• Output activation duration programmable from 01-99
seconds (program "00" to select "toggle" mode)
• All programming stored in non-volatile EEPROM mem-
ory
• Orange LED Keypress feedback
• Output #1 relay activation duration programmable per
user code
• Keypad illumination duration programmable from 10-99
seconds (for backlit keypad models only)
• Tamper switch output terminals (S1 - S2) on PCB
• Sounder feedback "beeps" can be activated or deacti-
vated for user code entries
12VDC to 28VDC
10VAC to 26 VAC
12VDC: 15mA (Standby)
24VDC: 21mA (Standby)
12VAC: 33mA (Standby)
24VAC: 54mA (Standby)

GETTING STARTED

1. Install the jumper located on the back of the keypad
(right position).
2. Apply power (12-24VDC polarized or 12-24VAC) to
the power input terminals.
• Orange LED blinks once
7890#123456*
3. Press
• Red LED turns ON
• Orange LED turns ON
• Green LED turns ON
WI1497 7/06
-25°C to +55°C
4.4cm x 16.5cm x 2.9cm
108mA (Active)
125mA (Active)
192mA (Active)
233mA (Active)
1
