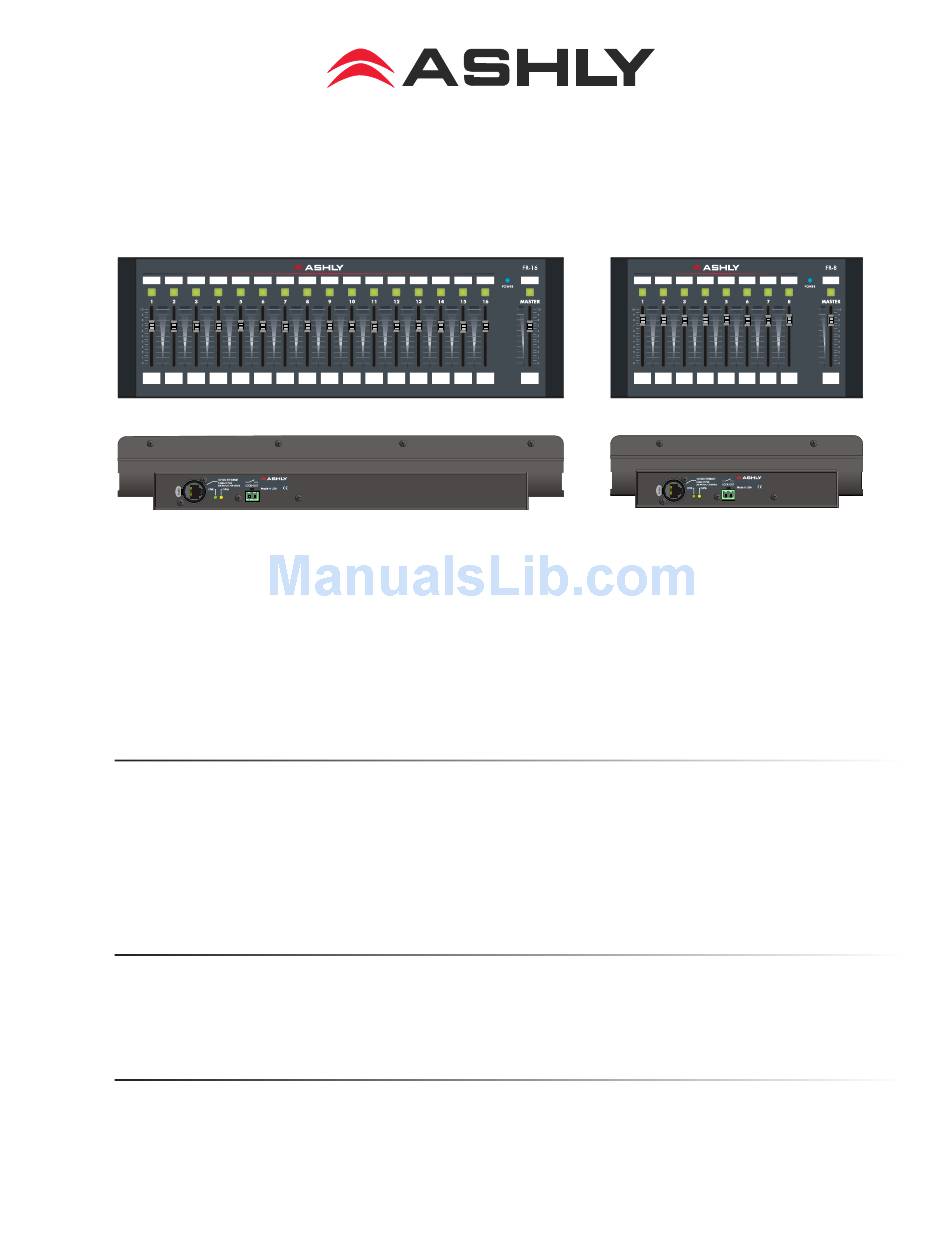

FR-8 and FR-16 Remote Control
‰ Overview
The FR-8 and FR-16 are Ethernet-based remote controllers for all Ashly NE (network enabled)
products with DSP capabilities. Each fader and it's push button LED can be programmed to adjust
signal level, select input source, or mute the signal. The FR remotes are ideal for networked sound
systems in meeting rooms, houses of worship, courtrooms, or other applications where simple but pro-
grammable real-time level control is required.
Features
• 8 or 16 Assignable Faders with Master
• Push Button Switches with LED
• Mute/Unmute per Fader
• A/B Source Select per Fader (optional)
• Two Signal Level Indicators per Fader
• User Defined Signal Level LED Threshold
Requirements
• Ethernet Network
• IEEE 802.3af Power Over Ethernet (class 2)
• Ashly NE DSP Device
Compatible Devices
• ne24.24M
• NE Two-Channel Amplifiers (with DSP)
• NE Multi-Channel Amplifiers (with DSP)
847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010
Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com
Operating Manual
ASHLY AUDIO INC.
• Assignable Fader Scaling
• Front Panel Lockout
• Communication Failure Indicator
• Automatic IP Addressing
• User Defined Label Inserts
• Wall Box, Rack, or Panel Cut-Out Mounting
• PC Running Microsoft® Windows 7,
Vista, or XP, 32 & 64 bit
• Protea
Software v5.11 or Higher
ne
• NE4800 and NE 8800 DSP Processors
• Pema Amplifiers
Advertisement
Table of Contents
Related Manuals for Ashly FR-16
Summary of Contents for Ashly FR-16
- Page 1 Operating Manual ‰ Overview The FR-8 and FR-16 are Ethernet-based remote controllers for all Ashly NE (network enabled) products with DSP capabilities. Each fader and it’s push button LED can be programmed to adjust signal level, select input source, or mute the signal. The FR remotes are ideal for networked sound systems in meeting rooms, houses of worship, courtrooms, or other applications where simple but pro- grammable real-time level control is required.
-
Page 2: Front Panel
4) Channel Fader Label Window - Insert 1) Push Button LED Label Window - Insert switch label made from template doc switch label made from Ashly template doc 5) Power LED - Shows device is powered 2) Push Button LED - Used to switch fader 6) Master Fader - Adjusts level of all Mute or fader A/B Source Select. - Page 3 Operating Manual - FR-8 and FR-16 Remote Level Controller ‰ Typical Application...
- Page 4 Protea NE Software v5.10 or higher. Maximum cable distance is 100 meters (328 ft) from the nearest router, hub, or switch. Ashly networked devices will auto detect their Ethernet network connection, and adapt (Auto- MDIX) to either a straight through pin to pin, or crossover Ethernet cable. Note that the push release tab on the back panel connector (as shown) is meant only for etherCON connectors.
-
Page 5: Mechanical Installation
The FR-8 and FR-16 are designed to be mounted to an electrical wall box or modular box array, to any flat surface using the provided cutout, to a custom Ashly rack mounting kit (sold separately), or as a freestanding desktop controller. - Page 6 - Start Protea NE Software and the FR-8/16 should appear in the network tree in the “Ashly Remotes” folder. From the factory, it should appear with the name “FR-8 (or 16) Fader Remote” in green. If it doesn’t appear, click the “Scan For Devices” button under the network tree.
-
Page 7: Global Features
Operating Manual - FR-8 and FR-16 Remote Level Controller Global Features Device Name: Up to 20 characters can be used for the device name. The name appears in the network tree in the Protea Software startup screen, as well as the main FR device screen. Target Security: When target security is left unspecified or in its default state (user name = “default”... - Page 8 Operating Manual - FR-8 and FR-16 Remote Level Controller Fader Specific Features Individual fader control parameters include assignment of the target device, fader mode, device channel, A/B mixer sub-channel source selection, fader scaling, signal level LED transition points, and assignment to master fader. An individual fader “Clear Function” button appears when editing any control point in a fader row, and returns that fader back to it’s default settings.
-
Page 9: Other Features
Network Properties tab and look under Hardware Configuration. If a newer firmware update is available on the Ashly website, download it and run the Flash Reprogram pro- cedure found in the FR Device Options menu. If the control surface is somehow unable to com-... - Page 10 NE remote controllers the ability to target the same DSP device. For example, an Ashly neWR-5 could target the same DSP device as an FR-16, if the user wanted to add remote preset or logic control in addition to FR remote gain control. Note that in this case, both the FR remote and the neWR-5 could conceivably target the same gain control on the target DSP device, however Ashly does not recommend this practice.
- Page 11 Operating Manual - FR-8 and FR-16 Remote Level Controller ‰ Panel Mount Cutout Pattern Note: This template is also available as a pdf download from the Ashly website. Look in the downloads section, then under FR-8 and FR-16 Application Notes.
- Page 12 Operating Manual - FR-8 and FR-16 Remote Level Controller ‰ Function Label Template An editable document template is available on the Ashly website for making custom labels. Text, text color, and background color can be individually defined for each label and inserted behind the front panel overlay windows as shown below.
-
Page 13: Troubleshooting Tips
To clear all inactive devices from the menu tree, right click on <Ashly Networks> at the top of the menu tree and click <Clear Inactive Devices From All Groups>. -
Page 14: Fcc Compliance
ASHLY AUDIO, INC. shall be obligated to only correct defects in the product itself. ASHLY AUDIO, INC. is not liable for any damage or injury, which may result from, or be incidental to, or a consequence of, such defects. - Page 15 Operating Manual - FR-8 and FR-16 Remote Level Controller Notes:...
- Page 16 Operating Manual - FR-8 and FR-16 Remote Level Controller Ashly Audio Inc 847 Holt Rd Webster NY 14580 585-872-0010 toll free 800-828-6308 fax 585-872-0739 www.ashly.com 2012 by Ashly Audio Corporation. All rights reserved worldwide. Printed in USA R09-12...
