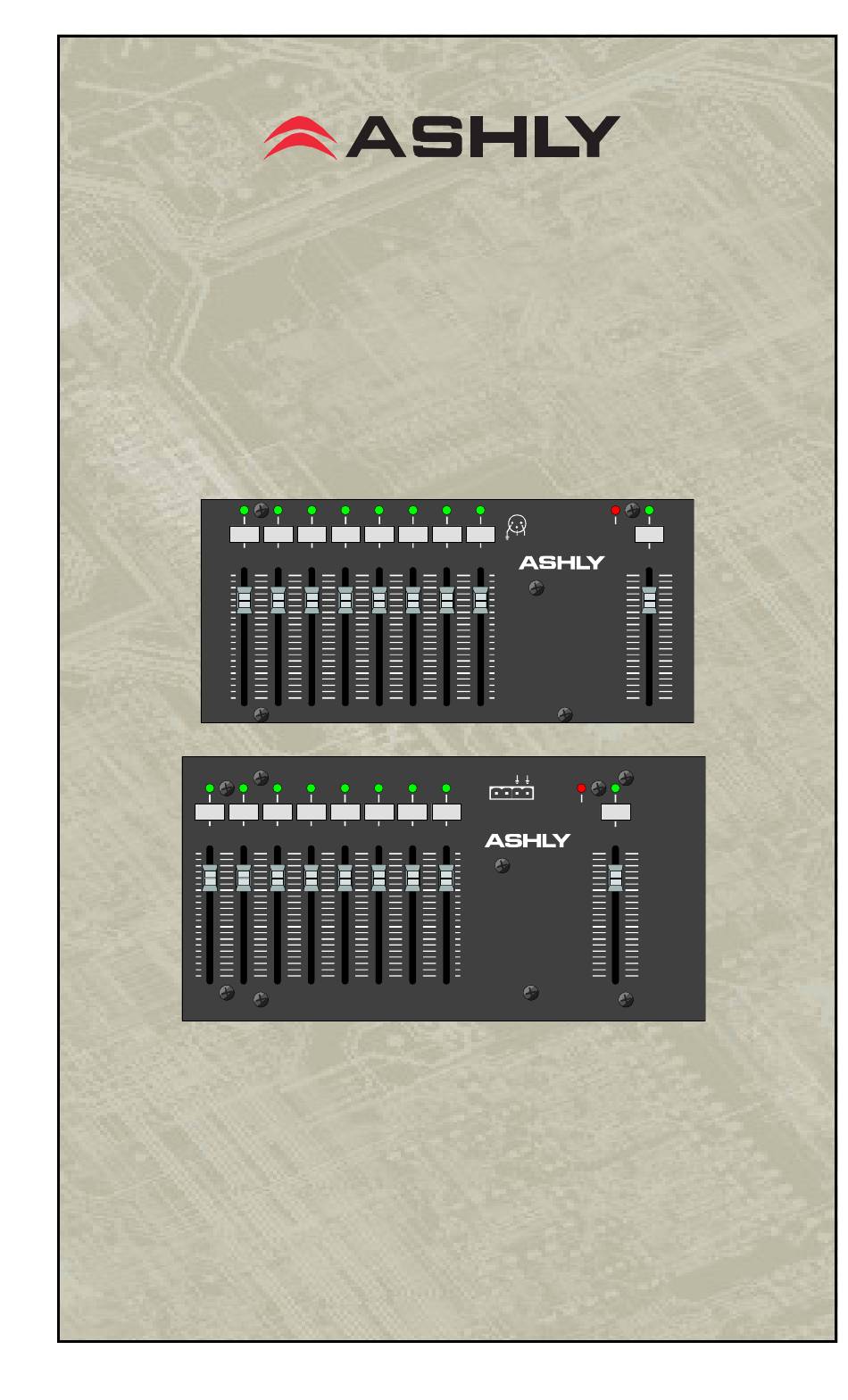

RD-8C Remote Level Control Gain Gain Data Euroblock Data Remote Connector On Back Disabled Master RW-8C Remote Level Control Gain Gain ASHLY AUDIO INC. 847 Holt Road Webster, NY 14580-9103 Phone: (585) 872-0010 Toll-Free: (800) 828-6308 Fax: (585) 872-0739 www.ashly.com...
Page 2
4- gang electrical box and uses a euroblock connector. There are eight channel faders and one master fader on the RD-8C, each with a level control and an on/off button with a green LED to indicate status.
Page 3
NE Multichannel Amp (note connector polarity) In the Protea NE software window, the RD-8C will appear in an expaned menu tree along with its host unit in the left side listing of the screen. An offline or disconnected host unit will appear in red text while an online unit appears in green.
