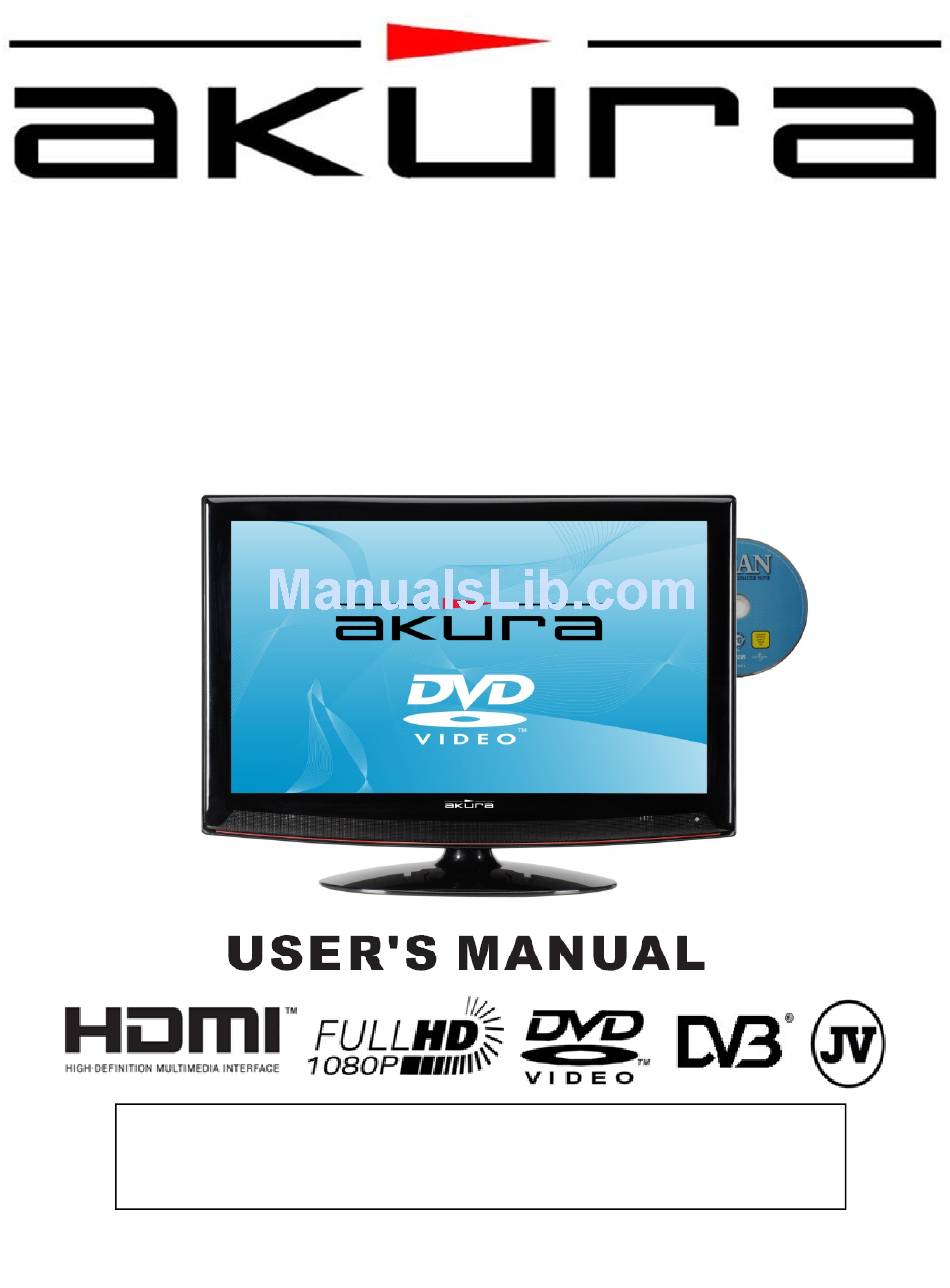

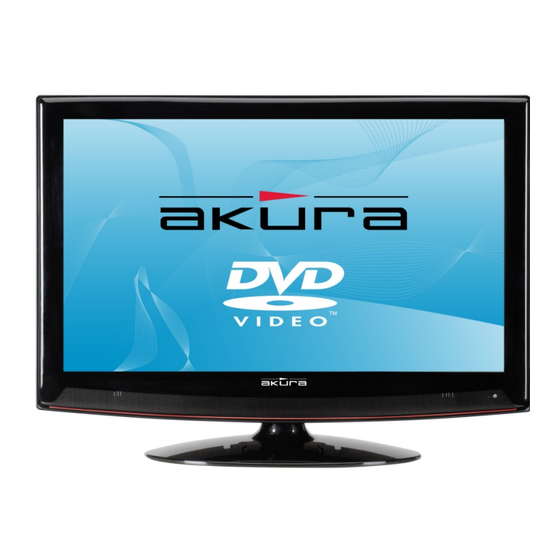

- Page 1 Model : APLDVD2YR31568FD MSD109 Digital LCD TV with DVD DVBt “Freeview” HDMI Customer Help Line : 0845 293 7698 Website : www.ekey.co.uk...
-
Page 2: Table Of Contents
Contents Safety Information Safety Instructions Accessories User Controls Remote Control Connections Menu Operation Teletext EPG (Electronic Programme Guide DVD Operation DVD Setup menu’s Trouble Shooting Guide Disc Care Wall mounting Specifications Rovi Statement... -
Page 3: Safety Information
1. Safety Information The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Safety Instructions
2. Safety Instructions CAUTION. PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS GIVEN IN THIS USER MANUAL AND MARKED ON THE APPLIANCE. RETAIN THIS BOOKLET FOR FUTURE USE. This set has been designed and manufactured to assure your personal safety. Improper use can result in Electric shock or Fire hazard. -
Page 5: Accessories
3. Accessories Please check the contents of the TV before you continue. If any item is missing please contact your point of purchase. User Manual Remote Control Mains lead... -
Page 6: User Controls
4. User Controls. Side View Rear Panel Vol + Increases Volume level. In menu mode, will shift the selection to the right, or increase level being adjusted. Vol – Reduces Volume level. In menu mode will shift the selection to the left, or decreases level being adjusted. -
Page 7: Remote Control
5. Remote Control. 1. STANDBY. Switches TV to Standby 2. MUTE. Press to mute sound, press and Operation. again to restore sound. 3. P MODE. Selects picture modes. 4. INFO. Displays information of disc contents, time playing etc. 5. S MODE. Selects sound modes. 6. - Page 8 5. Remote Control. Battery Fitting and Disposal Open the battery cover Fit two “AAA” batteries. Ensure the battery polarities are correct i.e + to + and – to -. Replace the battery cover To prevent injury, do NOT break open or throw exhausted batteries in a fire. Do not mix batteries, old and new, Carbon or Alkaline.
-
Page 9: Connections
6. Connections. IMPORTANT. When making connections ensure the TV is disconnected from the MAINS supply input, and that the appliance being connected is also disconnected from the mains supply. AC Input. 110 – 240V AC 50/60 Hz. USB. Firmware upgrades only. Not for general use. HDMI. - Page 10 6. Connections. PC connections. Disconnect TV from Antenna mains supply. or cable Connect VGA (15 pin) plug to TV and PC. Connect stereo audio lead. SCART. Re connect mains Disconnect TV from mains supply to TV and PC. supply. Use SOURCE button to Connect scart lead to TV and appliance.
- Page 11 6. Connections. Source/ Input Menu. To access the Source menu, press the SOURCE button on the Remote Control or the INPUT button on the TV. Using the ▲/▼ buttons select the Source / Input required and press OK to select.
-
Page 12: Menu Operation
7. Menu Operation. Connect the TV/DVD to the Mains supply and suitable aerial. It is advisable not to connect other apparatus until you have established that the TV is working correctly. If using the TV for DVBt (Freeview) viewing, the existing aerial may not be suitable. - Page 13 7. Menu Operation. OSD Menu. Press the LCD MENU button to display the main menu, Fig 4 will be displayed. Fig 4 To select the other menu’s press the ► button and the menu’s will rotate in the sequence :- Picture, Sound, Time, Setup, Lock, TV Setting. To enter each menu press the ▼...
- Page 14 7. Menu Operation. Sound. (Fig 7) Sound Mode. Select from :- Standard, Music, Movie, Sports and Personal. Standard. Used for general viewing. Fig 7 Music. Selected for enhanced music appreciation. Movie. A more dynamic setting suitable for movie viewing. Sports. Suitable for sports viewing. Personal.
- Page 15 7. Menu Operation. Fig 11 TV Setting. (Fig 11). Auto Tuning. After initial installation it may be necessary to re install all the stations. Select Auto Tuning and press OK. The sub menu (Fig 12) will be shown. If using in the UK select Start with the ▼ button and press OK. If using in another country, select the country using the ►/◄...
- Page 16 7. Menu Operation. Programme Edit. (Analog) (Fig 15). Delete “Red” Should it be necessary to Delete a station, use the cursors to select the station to be deleted. Press the RED button, this will put a RED marker next to the station to be deleted, press RED again and the station will be deleted, to exit delete press the Menu button.
- Page 17 7. Menu Operation. Using a CAM (Conditional Access Module) (CI Slot). Fig 17 This feature allows the user to access digital terrestrial “pay per view” channels. To use this facility a conditional access module (CAM) and viewing card need to be obtained by subscribing to a pay channel company. To insert the module.
-
Page 18: Teletext
8. Teletext. (Analog) TV Teletext is an information system broadcast by certain programme providers. It can provide Subtitles for viewers hard of hearing. Weather, Travel information, games and many other services. Below is a description of the buttons associated with Teletext. TEXT. -
Page 19: Epg
9. EPG (Electronic Programme Guide) (DVBt only). Fig 22 An “Electronic Programme Guide” EPG is provided by the programme providers. To access this press the EPG button on the remote control. The EPG provides programme information for the next 7 days. (Fig 22) Press▲/▼to move up and down the list and ►/◄... - Page 20 11. DVD Setup Menu’s TV Shape. Some DVD discs have been authored in 4:3 aspect ratio format. To see the material in its original mode, you may need to change the Aspect ratio. Normal/PS (Pan& Scan). Black edges left and right will be seen. Normal/LB (Letterbox).
-
Page 21: Trouble Shooting Guide
12. Trouble shooting guide. Should you experience difficulties operating this product please consult the guide below before calling the Customer Help Line. SYMPTOM POSSIBLE CAUSE REMEDY Dead No led lit Power not connected to TV Check power lead connections and mains switch is turned on No Picture. -
Page 22: Disc Care
Mount the TV to the wall bracket using 4 x 5 mm x 10 mm set screws. (Do NOT use longer screws as the internal parts of the TV may be damaged). Akura Ltd accepts no responsibility for any damage, caused to or by, incorrect mounting of the wall bracket. -
Page 23: Specifications
15. Specifications. ITEM DESCRIPTION Power Requirements TV 100-240V AC 50/60 Hz (110W) Standby Power <1W Screen Size 31.5" (80cm) diagonal Case dimensions 799 x 590 x 260mm inc base Weight 15.7 Kg’s Colour Systems PAL, SECAM Sound Systems (analog) BG, I, DK, L Audio Output 5 W per channel Tuning...
