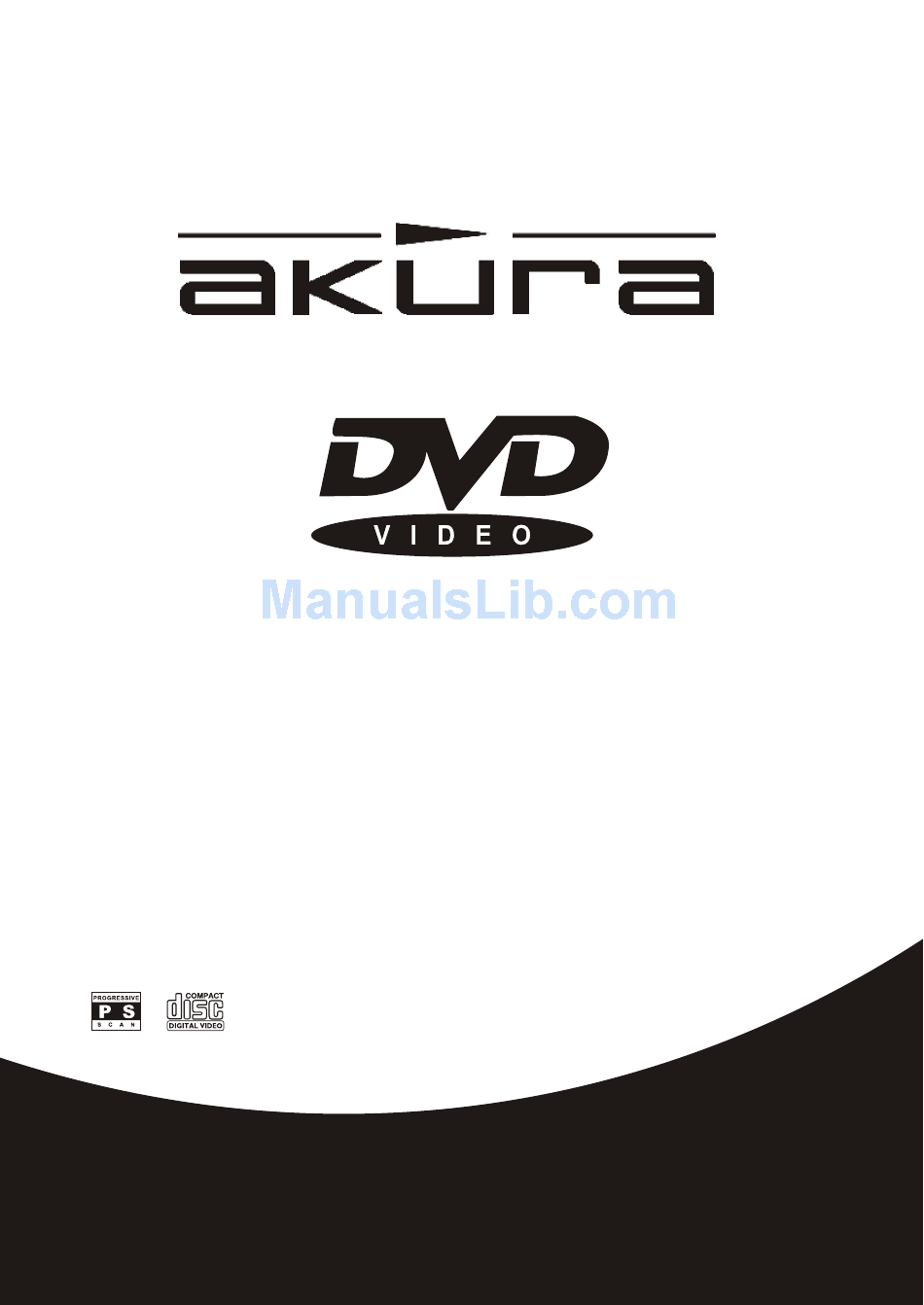

Page 1: User Manual
USER MANUAL AMD-2720 IMPORTANT READ THESE INSTRUCTIONS BEFORE USE AND RETAIN PROGRESSIVE SCAN FOR FUTURE REFERENCE. -
Page 2: Table Of Contents
CONTENTS Safety Instructions Safety instructions Battery care ....................Disc Handling and Care 3.Remote Control 3.Basic Operation 1.Main component function of side panel 2.Accessories 3. DVD Player and other component connection .UNIT AND CONNECTOR 4. SETUP/LCD SETUP instructions Setup System Setup Language Setup Audio Setup Video Setup .................... -
Page 3: Safety Instructions
IMPORTANT SAFETY INFORMATION The lightening flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Battery Care
. If the player fails to operate, consult the “Troubleshooting guide” on page 18 . Changes or modifications by the user will invalidate your guarantee. Battery Information and Care 1 When unpacked the battery will not be fully charged, this is for your safety. You will only get approximately 30 minutes first time use . -
Page 5: Disc Handling And Care
Disc Handling and Care Handling. Do not touch the playing surface. Remove from cases with care and hold the outer rim of the disc. Correct Wrong Do not stick labels on discs or write on the surfaces. Storage. When not in the player, store all discs in their cases. Keep discs flat. Do not scratch the playing surface. -
Page 6: Remote Control
REMOTE CONTROL ANGLE CONSOLE STANDBY 4 AUDIO TITLE MENU/PBC ANGLE AUDIO CONSOLE STANDBY SETUP MUTE MENU SETUP TITLE MUTE /PBC PLAY/PAUSE SLOW SLOW PROGRAM PROGRAM STOP FF/FR RETURN RETURN DIRECTION ZOOM ENTER ZOOM ENTER AVIN AVin RV/NEXT REPEAT REPEAT NUMBER KEY(0-9) CLEAR STEP SUBTITLE... - Page 7 7. MENU/PBC When playing DVD discs, press this button to show the ROOT MENU when playing VCD/ SVCD, press this button to display current PBC status, press again to display the disc format. 8. MUTE When disc playing, press this button to mute audio, Mute is displayed on the screen. Press again or press VOL+ VOL- Un-mute the audio.
- Page 8 19 . AV IN Press to select external or internal video source. 20. A-B Press to repeat segment when playing;(For VCD/SVCD/CD discs, repeat segment must be set within one track, repeat will be automatically cancelled as track changed; For DVD disc, repeat segments must be set within one title/chapter;...
- Page 9 REMOTE CONTROL Care of the Remote Control 1.Treat with care. Do not drop or damage case. 2. Do not obstruct the Infra red beam or be out of range. 3. If the Remote control is used in strong sunlight it may not operate correctly. Change remote control battery 2.Take out old battery and put in new battery, face up.
-
Page 10: Basic Operation
BASIC OPERATION 1.Outer shell 2.Lid Lock. Slide the lock up and right to open the screen cover 3.Power indicate light. No light: not connect to power. Red light: connect to power and in standby. To operate press ON key or Power key on the Remote control. -
Page 11: Main Component Function Of Side Panel
1.Main component function of side panel DC IN 12V HEADPHONE Ö ÷ » ú µ × ² ¿ ¹ ¦ Ä Ü Check accessories Card remote control AC-DC Adaptor Power line AV/AUDIO CABLE Headphone Car adapter... -
Page 12: Dvd Player And Other Component Connection
3. DVD player and other apparatus connections. To input or output video signal, audio signal, digital signal output, TV decoder or amplifier, connect as shown. Ensure both appliances are disconnected from the Mains power before connection. Connect TV AUDIO IN/OUT OPTICAL OUT VIDEO IN/OUT S-VIDEO S -pin... -
Page 13: Unit And Connector
CONNECTION TO AUDIO AMPLIFIER Host DVD player Connect Tv Optical Digital cable. OPTICAL DIGITAL CORD£¨ WITHOUT IN PACKED£© “Not included” Signal direction Digital Audio Input Connector DIGITAL IN Note. When using an external amplifier, ensure the volume is set low, otherwise overload of the loudspeakers may occur. -
Page 14: Setup/Lcd Setup Instructions
SETUP/LCD SETUP SETUP 1/SYSTEM SETUP 1.1 TV SYSTEM Select system according to the TV set connected. SYSTEM SETUP For PAL system TV set, select PAL TV SYSTEM NTSC Mode. (UK and Europe) SCREEN SAVER For multi-system TV set, select AUTO VIDEO AUTO mode... - Page 15 1.4 TV TYPE 1) 16 : 9 wide screen Select this when SYSTEM SETUP connected to a wide screen TV set. TV SYSTEM 2 ) 4 : 3 LB Select this for a normal screen SCREEN SAVER scale TV set. A black edge will be seen on VIDEO the top and bottom edges when playing 4:3PS...
-
Page 16: Language Setup
1.7 DEFAULT DEFAULT RESTORE 1.7.1 RESTORE RESUME If you adjust the player and are not able to PREV PAGE reset all the functions, select “Restore”, this will reset the player to its factory settings. EXIT SETUP 1.7.2 RESUME A. Memory Play “OFF” B. - Page 17 2.2 AUDIO LANGUAGE Enter AUDIO LANG, press direction buttons to select a desired language and then press LANGUAGE SETUP “ENTER”. CHINESE OSD LANGUAGE ENGLISH AUDIO LANG SPANISH SUBTITLE LANG PORTUGUESE MENU LANG FRENCH JAPAN EXIT SETUP LATIN GERMAN 2.3 SUBTITLE LANGUAGE Enter SUBTITLE LANG, press direction LANGUAGE SETUP buttons to select a desired language for...
-
Page 18: Audio Setup
3/AUDIO SETUP Enter AUDIO OUT (digital output), press AUDIO SETUP direction buttons to select a desired option ANALOG AUDIO OUT SPDIF/RAW EXIT SETUP then press [ENTER] to confirm. There are SPDIF/PCM three options: ANALOG, SPDIF / RAM, SPDIF / PCM. 3. -
Page 19: Digital Setup
4.3 HUE Use arrow buttons to move slider to modify video output HUE (only on NTSC) VIDEO SETUP BRIGHTNESS CONTRAST STATURATION EXIT SETUP 4.4 SATURATION (COLOUR) Use arrow buttons to move slider to modify saturation of video output 5/DIGITAL SETUP Configuration as following 5.1 OP MODE DIGITAL SETUP... -
Page 20: Description Of The Lcd Setup Menu Setting
5.3 DUAL MONO (Left + Right) The function is a mode set for audio L DIGITAL SETUP and audio R output. There are four OP MODE modes: Stereo, Left audio output, Right DYNAMIC RANGE STEREO DUAL MONO audio output, Mix audio output. MONO L MONO R EXIT SETUP... -
Page 21: Compatible Discs
TYPE OF DISC Type Disc Diameter Playing time Format Remark Single sided 120 mins DVD disc 12 cm Double sided Compact disc. 240 mins Digital Audio disc. Digital video Single sided dynamic frame. 80 mins 8 cm Double sided 160 mins MPEG2 Compact disc Digital Audio 12 cm... -
Page 22: Trouble Shooting Guide
TROUBLE SHOOTING GUIDE Before calling the “Technical help desk” please see the guide below Symptom Possible fault Remedy Power adaptor not connected. Ensure the plugs are firmly Dead. No Leds lit fitted. Internal batteries exhausted. Recharge batteries Hold “On” button down for Not switched on correctly.
