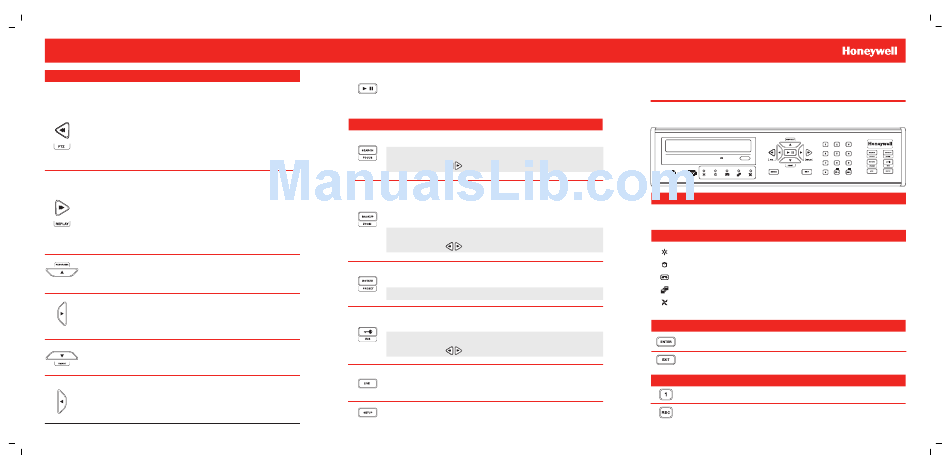

DIRECTIONAL AND PLAYBACK CONTROL BUTTONS
Operation Modes: Live Mode, Live Freeze Mode, Search Mode, Search-Pause Mode,
Navigation Mode, and PTZ Mode.
Live
Go to PTZ mode.
PTZ
Adjust zoom, focus, and iris on a PTZ channel.
Search
Start reverse playback of recordings. When pressed
successively, the search jumps back in time by 30 minute
increments.
Search-Pause
When pressed successively, the reverse playback rate
decreases from 1/2X speed to 1/8X.
Live
Start playback of the latest recordings.
(By default, the system searches recordings in the past 30
secs. If no recording is archived, the system will play back
the latest one.)
PTZ
Adjust zoom, focus, and iris on a PTZ channel.
Search
Start playback of recordings. When pressed successively,
the search jumps forward in time by 30 minute increments.
Search-Pause
When pressed successively, the playback rate increases
from 1/2X speed to 1/8X.
Navigation
Move up.
PTZ
Move the camera view point up.
Search
Start Panorama Search.
Navigation
Move to the right.
PTZ
Move the camera view point to the right.
Search
Play recorded videos.
Search-Pause
Step forward one frame.
Navigation
Move down.
PTZ
Move the camera view point down.
Search
Start Smart Search.
Navigation
Move to the left.
PTZ
Move camera's view point to the left.
Search
Play recorded videos in reverse.
Search-Pause
Step back one frame.
Document 800-02090 - Rev A - 05/08
Live
Freeze live channels.
Live Freeze
Resume live view.
Search
Pause playback channels.
Search Pause
Resume playback.
FUNCTION BUTTONS
Search
Open the search menu.
Focus
In PTZ mode, press to use the Focus function.
Use the
buttons to adjust.
Backup
In live mode, press to open the backup menu.
In the search mode,
Press once, to set the start time for Backup.
Press twice, to set the end time for Backup.
Press three times, to complete Backup.
Zoom
In PTZ mode, press to use PTZ Zoom function.
Use the
buttons to adjust.
Rotate
Rotate through to the remaining channels in the current display
mode or rotate the display configuration.
Preset
In PTZ mode, press to use the Preset function.
Key
Log out the current user. Use to prevent accidental or
unauthorized system-wide changes.
Iris
In PTZ mode, press to use the IRIS function.
Use the
buttons to adjust.
Live
Change the display mode. Display switches in the following order
when the LIVE key is pressed successively: (Single > 4 > 7 > 9 >
10 > 13 > 16 > Single > 4 > 7 > 9 ...split screen mode)
Setup
Open the setup menu.
[4, 8, 16] HRDP Digital Video Recorder
Performance Series

QUICK START GUIDE

LOGGING IN FOR THE FIRST TIME
DVR
User ID: admin
Remote Software
Password: <none>
LED STATUS INDICATOR
Power
Illuminates when power is supplied to the DVR.
HDD
Flashes when the hard drive is being accessed.
Record
Flashes when live video is recording.
Network
Illuminates when the DVR is connected to a network.
Fan
Illuminates when the fan is working. Flashes when the fan is working
improperly. Unlit when the fan is not working.
ENTER / EXIT BUTTONS
Enter
Input data, make selections, and open pop-up menus.
Exit
Return to the previous mode or menu, without saving.
NUMERIC BUTTONS AND REC
Numeric
In live and search modes, press to watch that channel full screen.
Record
In live mode, press to start instant recording of all channels.
User ID: admin1
Password: <none>
