American DJ MEGA STROBE/DMX Instruction Manual

American DJ
M
EGA STROBE/DMX
CAUTION!
SPECIFICATIONS: MODEL - Mega Strobe/DMX™
Weight: 9 lbs.
Size: 12" x 8.75" x 6"
Lamp: ZB-300
Voltage: 120V/60Hz
Working Position: Any Safe position
Fuse: 16A
Power Draw: 750W
Connection: XLR
Flash Rate: 15 flashes per second flash
Tube Life: 500,000 Flashes
Thank you for purchasing the Mega Strobe/DMX!

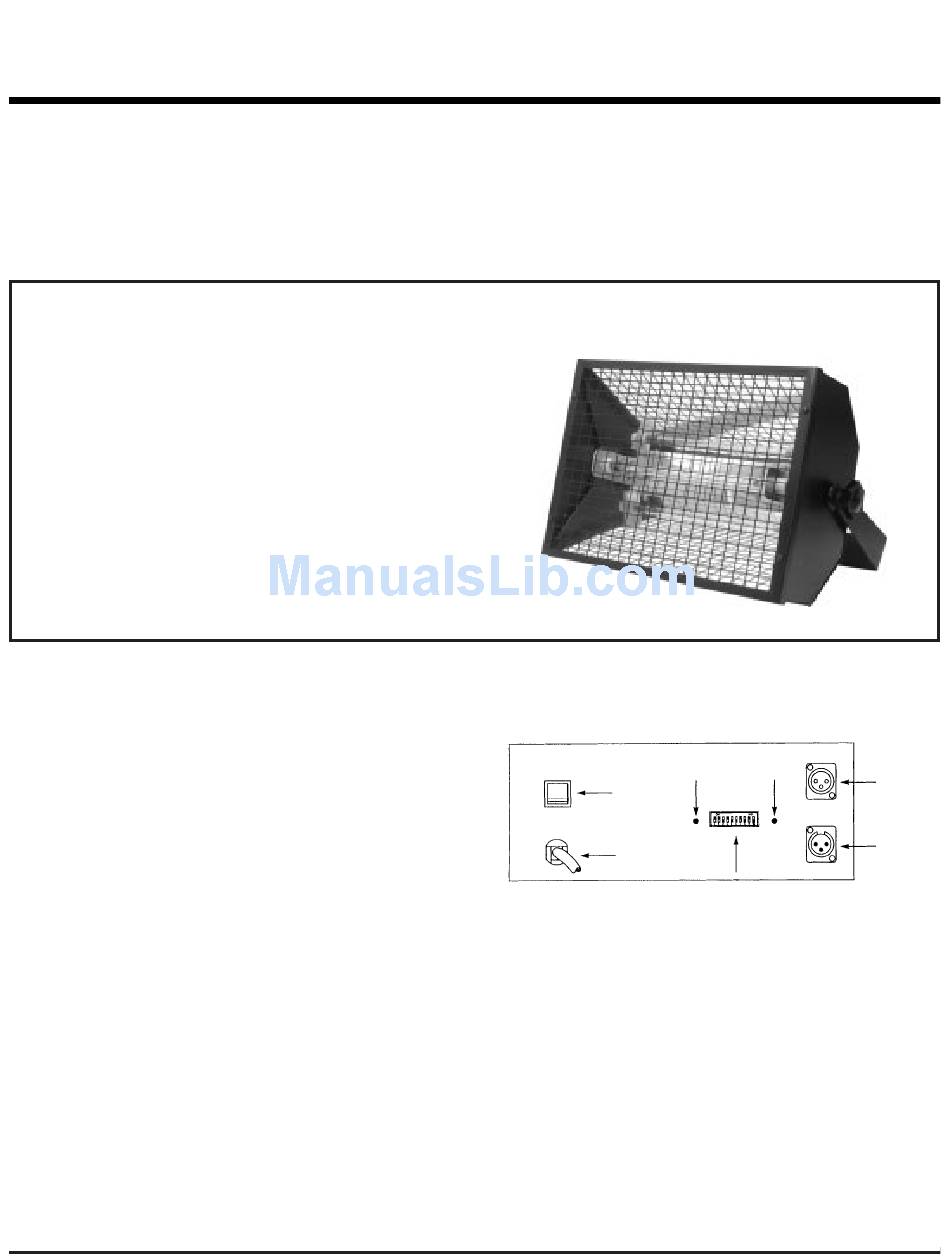

General Functions (REAR):
A. POWER INPUT: AC 120V/60Hz, 16A
B. CIRCUIT BREAKER: 16A
C. POWER INDICATOR: Lights when power is ON
D. DMX DIP SWITCH SETTINGS: By assigning dip
switch 10 to ON, unit goes to "DMX Pack Mode".
Follow DMX addressing printed on the rear of
this Instruction Manual for desired speed and
dimming settings. By assigning dip switch 10 to OFF,
unit goes to "DMX Self-test Mode". Follow "Self-test" settings printed on rear to select desired chase.
E. DMX INDICATOR: Indicates when DMX is effective.
F. DMX SIGNAL OUTPUT: XLR female socket used to connect to other Mega Strobe/DMXs.
G. DMX SIGNAL INPUT: XLR male socket used to receive DMX signals.
Operating Instructions:
1. Unit is ready to be hung or set on flat surface. We suggest the use of safety cable (not provided) when hanging
unit. The Mega Strobe/DMX plugs direct into 120V. Make sure power configuration is correct.
2. Plug in power cord to turn unit ON.
3. This unit has two operation modes: "DMX Self-test Mode" and "DMX Pack Mode".
4. Switch dip switch 10 to the OFF position, the unit goes to "DMX Pack Mode". There are 2 "Self-test" modes:
AUTO and MANUAL. Set dip switch 9 to OFF, it performs "AUTO Self-test". When strobe flashes within the
dimming range from 0% to 100% and then from 100% to 0%, a slower or faster speed will be executed.
The strobe will flash at regular speed corresponding to the dimmer duration. Set dip switch 9 to ON, it will then
Affordable Quality Lighting Products from American DJ
Read instructions before installing or plugging unit in.
Here are a few tips before getting started.
Instruction Manual
®
™
750W DMX Strobe Light
C
B
A
D
Los Angeles, CA. 90058 USA
®
E
F
G
