American DJ
DR. DMX
SPECIFICATIONS:
•
DMX512 output
•
12 Channel memory
• Auto power off w data protection
• Battery or ac adaptor
• Battery power indicator
• Fader for flash control
DMX
*
OUTPUT
1:GND
2:DATA -
3:DATA +
Make sure of DMX polarity of your unit .
*
Smartec Intelligent lighting is opposite polarity
©American DJ
Los Angeles, CA 90058 Dr DMX Instructions page 1
®

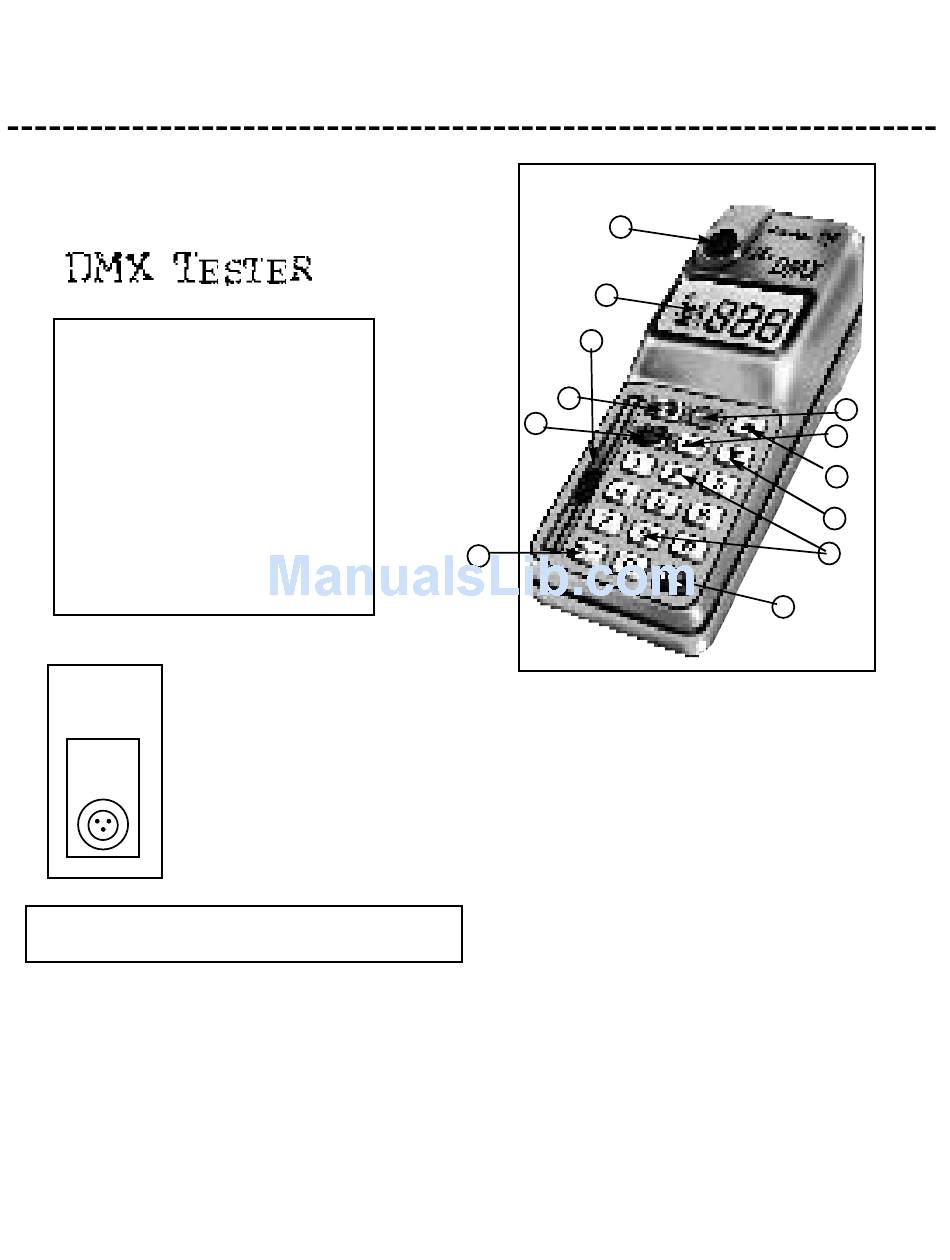

User
®
4
5
11
1. Laser pointer switch
2. LCD display
3. Fader slide
4. Power on / off key
5. IR on / off key
6. Hold key
7. Clear key
8. Up key
9. Down key
10. Number keys (0-9)
11. Flash key
12. Yes key
Instructions
1
2
3
6
7
8
9
10
12
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for American DJ Dr. DMX
Summary of Contents for American DJ Dr. DMX
- Page 1 User Instructions American DJ ® DR. DMX SPECIFICATIONS: • DMX512 output • 12 Channel memory • Auto power off w data protection • Battery or ac adaptor • Battery power indicator • Fader for flash control 1. Laser pointer switch OUTPUT 2.
- Page 2 OPERATING INSTRUCTIONS Make sure fresh batteries are in unit or a proper type ac adapter is used. 1.Press andd hold POWER key(Fig. 4) for 1 sec. LCD will come on. 2.Select DMX channel of unit to be tested (e.g. if you need channel 16 press number key 1 & 6 (Fig. 10) ) then press YES key (Fig.
