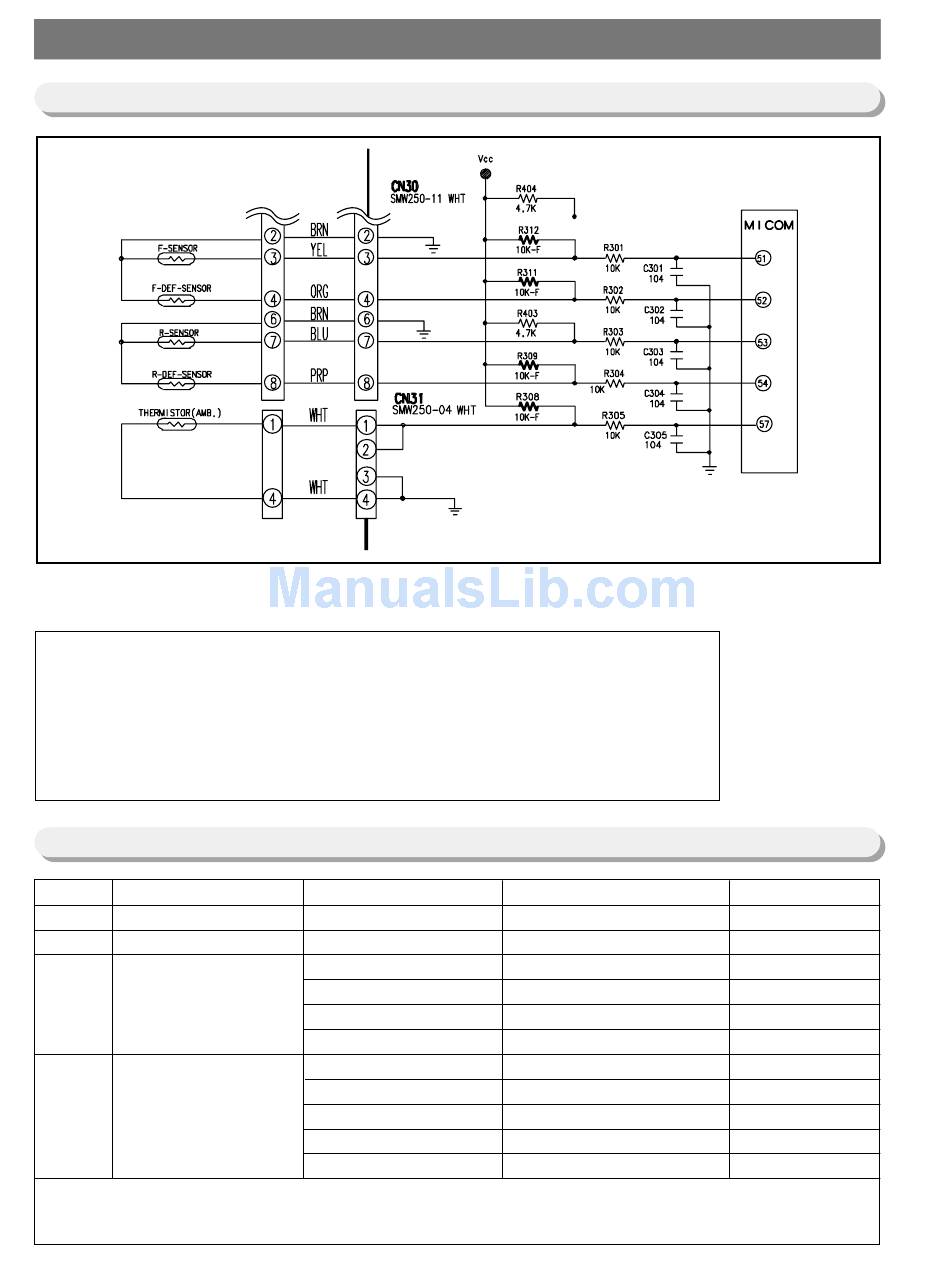

15-2) Others (Measure Sensor Terminals)
* Check after disassembling connected to MAIN PCB CN30&CN32
* Because it is NTC TYPE Sensor,risistance decreases as temp increases
1. Measure resistance between CN30
2. Measure resistance between CN30
3. Measure resistance between CN30
4. Measure resistance between CN30
5. Measure resistance between CN31
6. Compare the above values with current temps of Sensor locations
(4-6.Temp Sensing Circuit Table)and Part Spec in Manual and evaluate them.
15-3) Others (Measure Load Terminals)
NO ITEM
1 PBA MAIN
2
PBA PANEL
3
TRANS DC
4
SENSOR
- The second part (DA41-XXXXX?)of CODE for MAIN PCB ASS'Y PART may change according to
MICOM or Option change,so check it when asking for parts.
and for R-Sensor.
⑦ ⑥
② and ③ for F-Sensor.
and for R Defrost Sensor.
⑧ ⑥
⑥ and ④ for F Defrost Sensor.
and for Ambient Sensor.
① ④
SPEC
05 W2 PBA MAIN
05 W2 PBA PANEL,BLUE
115V/60Hz
220V/50,60Hz
127V/60Hz
230V/60Hz
F DEFROST SENSOR
R DEFROST SENSOR
F SENSOR
R SENSOR
AMBIENT SENSOR
74
CODE NO
DA41-00293A
DA41-00264A
DA26-00022B
DA26-00022C
DA26-00022D
DA26-00022E
DA32-00006C
DA32-00006C
DA32-10105S
DA32-10105T
DA32-00011L
REMARK
