Hotpoint HTN16BBXWW Specification Sheet

HTN16BBX – Hotpoint
®

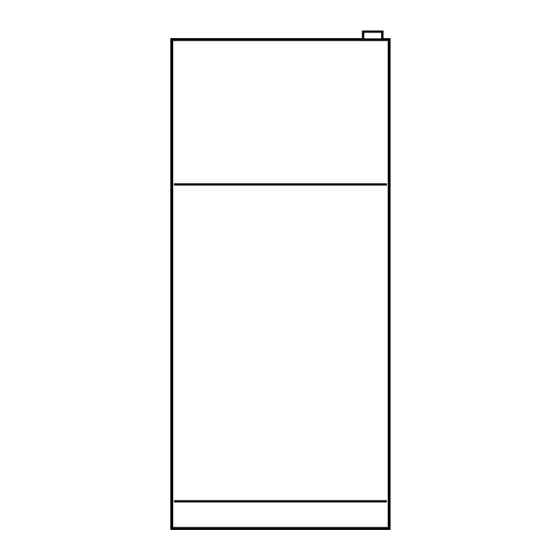

Front View

B
A
Specification Revised 8/10
410462
'94 TMNF Refer
ENERGY STAR 15.5 Cu. Ft. Top-Freezer Refrigerator
®
C
D

Top View

H
G
E
F
Height to top of hinge (in.) A
Height to top of case (in.) B
Height to mid-freezer (in.)
Case depth without door (in.) C
Case depth less door handle (in.) D
Case depth with door handle (in.) E
Depth with fresh food door open 90° (in.) F
Width (in.) G
Width with door open 90° with door handle (in.) H
Each side (in.)
Top (in.)
Back (in.)
Note: Before installing, consult installation instructions packed with product
for current dimensional data.
Note: All Top-Freezer No-Frost Right-Hand Refrigerator Doors: As you
face the front of the refrigerator, the handle is on your left and the
hinges are on your right.
All Top-Freezer No-Frost Left-Hand Refrigerator Doors: As you
face the front of the refrigerator, the handle is on your right and the
hinges are on your left.
Total volume and shelf
area are calculated by
the Association of Home
Appliance Manufacturers'
standards.
61-3/4
61-1/4
51-3/8
25-7/8
29-1/8
29-1/8
54-7/8
28
28-5/8
3/4
1
1
Listed by
Underwriters
Laboratories
