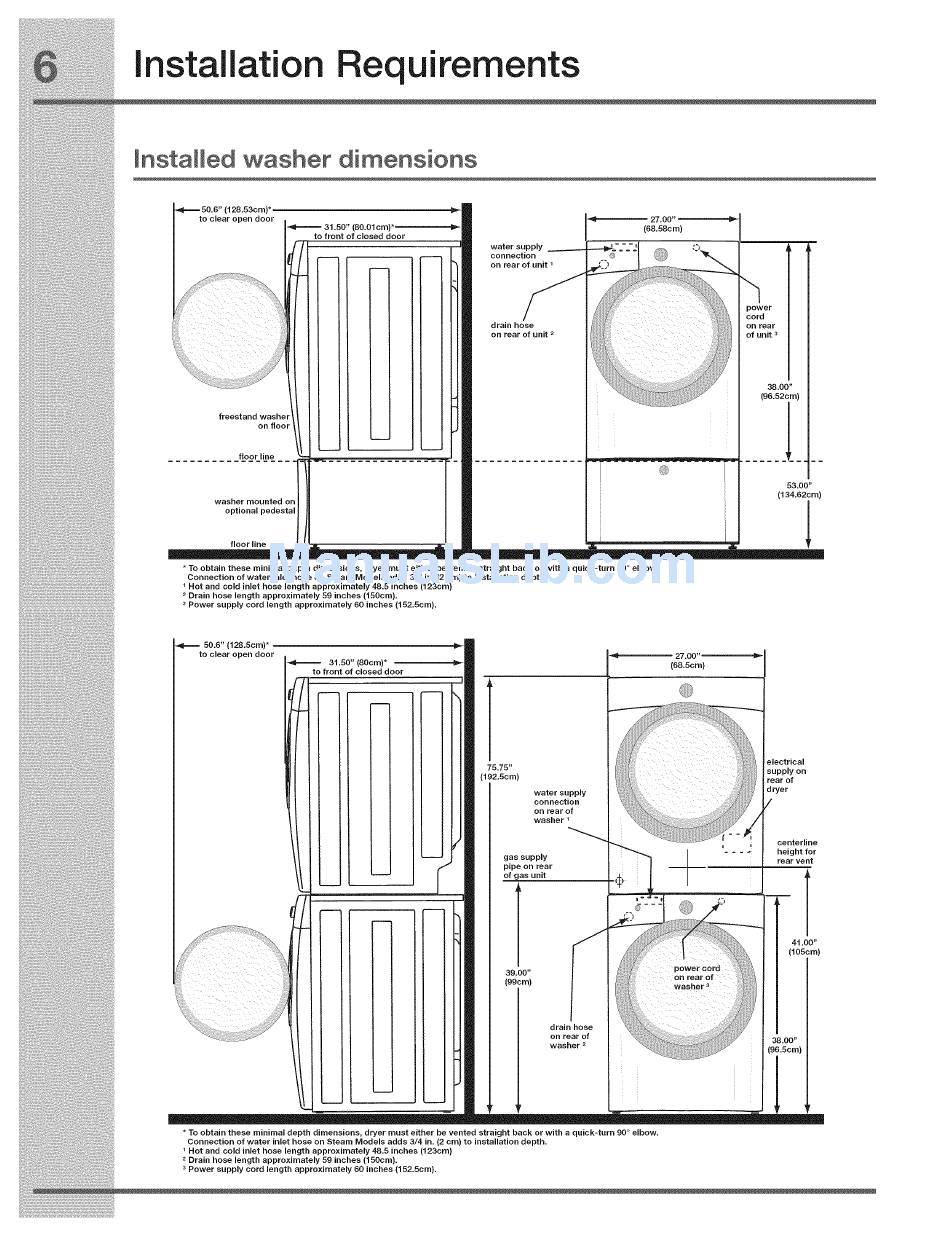

installation Requirements
Installed washer dimensions
(128.53cm)*
to clear open door
freestand washer
on floor
floor line
washer mounted on
optional pedestal
floor line
(80.01cm)
to front of closed door
water supply
connection
on rear of unit 1
drain hose
on rear of unit 2
(68.58cm)
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90 ° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
I Hot and cold inlet hose length approximately 48.5 inches (123cm)
2 Drain hose length approximately 59 inches (150cm).
3 Power supply cord length approximately 60 inches (152.5cm).
power
cord
on rear
of unit 3
38.00"
(96.52cm)
!
53.00"
(134.62cm)
50.6" (128.5cm) _
to clear open door
31.50" (80cm)* --
to front of closed door
!
75.75"
(192.5cm)
27.00
(68.5cm)
water supply
connection
on rear of
washer 1
gas supply
pipe on rear
of gas unit
39.00"
(99cm)
drain hose
on rear of
washer 2
power cord
on rear of
* To obtain these minimal depth dimensions, dryer must either be vented straight back or with a quick-turn 90 ° elbow.
Connection of water inlet hose on Steam Models adds 3/4 in. (2 cm) to installation depth.
I Hot and cold inlet hose length approximately 48.5 inches (123cm)
2 Drain hose length approximately 59 inches (150cm).
3 Power supply cord length approximately 50 inches (152.5cm).
electrical
supply on
rear of
dryer
centerline
height for
rear vent
41.00"
(105cm)
