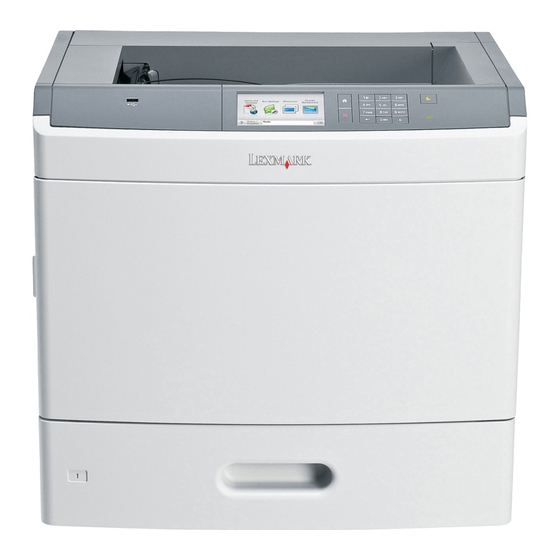

Lexmark C792 Print Defects Manual

Print defects guide

Hide thumbs Also See for C792:

See also: Administrator's Manual , Maintenance Manual

Print defects guide

Repeating defects measurements

Match a set of repeating defects on a print job to the marks on one of the vertical lines. The line that best matches the defects

on the print job indicates which particular part may be causing the defect.

Note: Make sure the current selection in the printer for Scale to Fit in the PDF menu is set to "No" for the rulers to be printed at

the correct size.

Change the print cartridge for the color that shows this defect.

94.2 mm

(3.71 inches)

37.7 mm

(1.48 inches)

41.6 mm

(1.64 inches)

Print defects guide

Page 1 of 2

42.7 mm

(1.68 inches)

Table of Contents

Do you have a question about the C792 and is the answer not in the manual?

Page 1 Print defects guide Page 1 of 2 Print defects guide Repeating defects measurements Match a set of repeating defects on a print job to the marks on one of the vertical lines. The line that best matches the defects on the print job indicates which particular part may be causing the defect. Note: Make sure the current selection in the printer for Scale to Fit in the PDF menu is set to “No”...
Page 2 Print defects guide Page 2 of 2 Change the transfer module if one of these defects appears on the printed page. Change the fuser if one of these repeating defects appears on the printed page. 47.1 mm 59.7 mm 42.2 mm 95.0 mm 146.7 mm (1.85 inches)
