Panasonic PT-F200 Specifications

Lcd projector
Hide thumbs Also See for PT-F200:
Table of Contents

Advertisement

Quick Links

See also: Network Manual , Quick Manual
P ro d u c t N u m b e r :
P ro d u c t N a m e :
As of October 2008. Appearance and specifications are subject to change without notice.
S
P
E
C

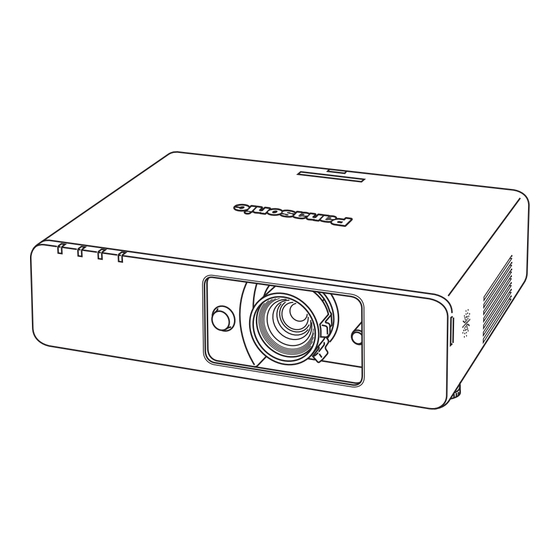

PT-F200
LCD Projector
F
I
L
E
< 1 >

Advertisement

Table of Contents
loading

Related Manuals for Panasonic PT-F200

Summary of Contents for Panasonic PT-F200

  • Page 1 PT-F200 P ro d u c t N u m b e r : LCD Projector P ro d u c t N a m e : As of October 2008. Appearance and specifications are subject to change without notice. <...

  • Page 2: Specifications

    PT-F200 LCD Projector Specifications Power supply 100–240 V AC, 50/60 Hz Power consumption 330 W (Approx. 4.5 W in standby mode with fan stopped.) Optical system Dichroic mirror separation/prism synthesis system LCD panel Panel size 0.7˝ (17.78 mm) diagonal, 4:3 aspect ratio Display method Transparent LCD panel (x 3, R/G/B) Drive method...

  • Page 3: Lcd Projector

    PT-F200 LCD Projector Dimensions (W x H x D) 432 x 124.5 x 319 mm (17˝ x 4-29/32˝ x 12-9/16˝) Weight 6.2 kg (13.7 lbs.) Operating environment Temperature 0°– 40°C (32°–104°F) Humidity 20%– 80% (no condensation) Remote control unit Power supply 3 V DC (AA battery x 2) Operation range* Approx.

  • Page 4: Standard Setting-Up Positions

    PT-F200 LCD Projector Terminals Computer 1 input Computer 2 input/computer 1 output S-Video input Video input Component input Audio input for component/S-Video/video Serial input Remote input Audio input for computer 1 Audio input for computer 2 Audio output Standard setting-up positions unit : mm (inch) Ø49 Upper edge of projected image...
  • Page 5 PT-F200 LCD Projector Calculation of the projection distance For a screen size different from the above, use the equation below to calculate the projection distance. Aspect ratio 4:3 minimum L (m) = (diagonal screen size in inches) x 0.0304 - 0.048 maximum L (m) = (diagonal screen size in inches) x 0.0606 - 0.057 NOTE:...
  • Page 6 PT-F200 LCD Projector Computer data compatibility This projector accepts up to 91 kHz horizontal scanning frequency and 162 MHz dot clock. NOTE: Pixel thinning is applied to signals that exceed a dot clock frequency of 110 MHz. The display resolution of this projector is 1,024 x 768 pixels.
  • Page 7 PT-F200 LCD Projector Serial connector The serial connector complies with RS-232C. To control the projector from a personal computer, com- mands must be input through communication software, based on the format and satisfying the commu- nication conditions shown below. Pin assignments and signal names Signal name Signal name Description...

  • Page 8: Control Commands

    PT-F200 LCD Projector Control commands Command: <Parameter> Function Callback: <Parameter> Parameter value Power on (standby mode on) PO N PO N – – Power off (standby mode off) PO F PO F – – Volume control AV L :< p l> AV L: <pl >...

  • Page 9: Parameter Format

    PT-F200 LCD Projector Parameter format Parameter format Size (Byte) Difinition <pl> 3 (1 or 2 bytes also Dicimal without signs: 0-999 (000, 001, 002...999) possible when Dicimal with signs: -99 to +99 (-99...-01, +00, +01, +02...+99) under control) Callback from the projector is 3 Byte. <off on>...

  • Page 10: Notes On Projector Placement And Operation

    PT-F200 LCD Projector Notes on Projector Placement and Operation: The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the following precautions. Never place objects on top of the projector while it is operating. Make sure there is an unobstructed space of 500 mm (19-11/16˝) or more around the projector's exhaust open- ings.
