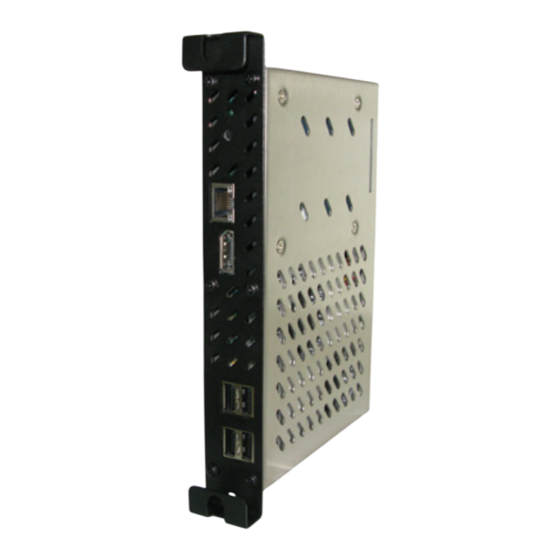

OPS-PCAFQ-PH
Integrated and removable single board computer
with Quad Core AMD processor for
the most demanding content playback
Enjoy seamless integration with this internal
AMD Quad Core Fusion-based PC that
adheres to the Open Pluggable Specification
(OPS) and increases the operational flexibility
of a compatible NEC display for any digital
signage application. With a Windows 7 Professional
license and 4GB of integrated RAM, this PC is perfect for
applications requiring external human interface devices or
extra memory.
Highlights
No external connections required. DVI video, stereo
audio, RS232 control and power are all passed internally
from display to OPS device, allowing for seamless,
hidden integration and simplified installation
Powerful 1.5 GHz Quad Core AMD Fusion APU provides
enough horsepower to process high-end digital signage
content
Durable and protected with an all-stainless steel chassis
and integrated redundant cooling fans to protect the
unit during installation, operation and service
4GB DDR3 RAM of memory ensures the playback of
high-taxing content
DisplayPort output allows for multi-display support
through ATI graphics
Four USB ports allow you to connect compatible devices
Full networking capabilities through the integrated
Ethernet connection
3-year warranty matches that of the display
Key Markets
Quick-Service Restaurants
Digital Signage
Education
Retail
Product specifications subject to change.
©2012 NEC Display Solutions of America, Inc.
All rights reserved. 25.NEC.80.GL.UN.130 rev. 10113
Corporate
Medical
Touchscreen
Video Conferencing
NEC Display Solutions
500 Park Boulevard, Suite 1100
Itasca, IL 60143
866-NEC-MORE
Ethernet DisplayPort
Operating System
CPU
GPU
RAM
Hard Drive
Video Output
Internal DVI, External DisplayPort
Audio Output
Internal Stereo, External DisplayPort
Network Connections
Control I/O
Video Format Support
1080p video playback, MPEG/2, H.264,
Power
16VDC Input Voltage, Power Dissipation
Operating Temperature
Operating Humidity
Dimensions (W x H x D)
7.1 x 1.2 x 4.6 in. / 180 x 30 x 118mm
Weight
Gross Weight
Certifications
Compatible Displays
With SB-02AM Adaptor:
NEC P Series, V422, V462, V551, V651, X463UN, X551UN
Without SB-02AM Adaptor:
X401S, X461S, X551S, V322, V552, V652
Accessories
USB USB
Windows 7 Professional
1.5 GHz AMD Quad Core Fusion
(A8-3500M)
Integrated HD 6620G
4GB DDR3
250GB HDD
Gigabit Ethernet
USB 2.0 (4)
WM9
(60W)
32° - 104°F / 0° - 40°C
80% maximum relative humidity,
non-condensing
2.5 lbs. / 1.2 kg
3 lbs.
CE, FCC Section 15
