GTDL740ED
GE
7.8 cu. ft. capacity long-venting electric dryer
®

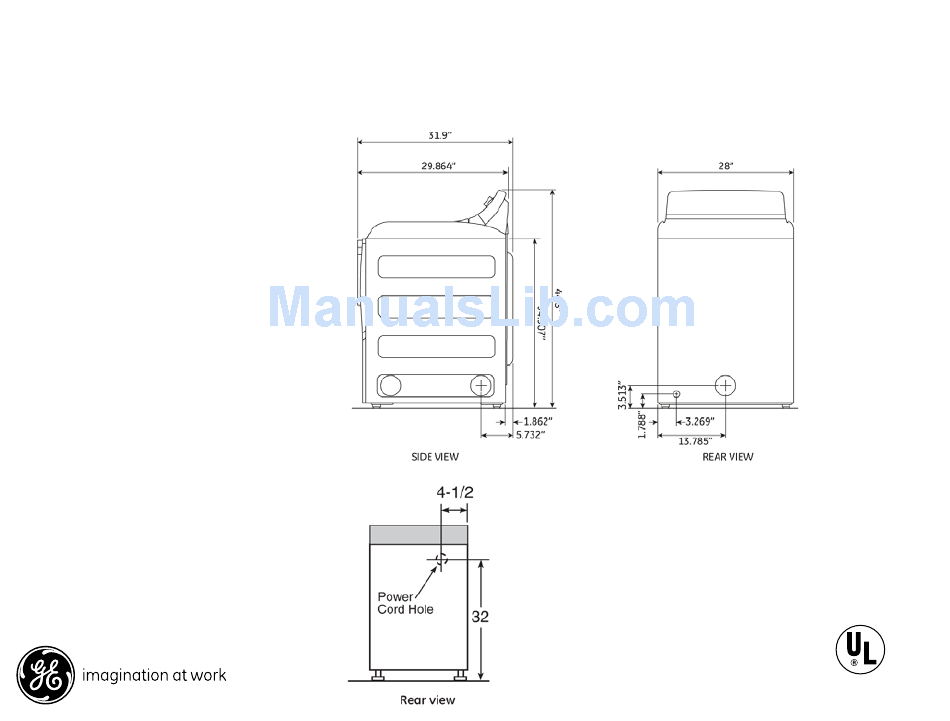

Dimensions and Installation Information (in inches)
Exhaust Options:
3-way via rear, right and bottom.
NEMA Receptacle codes:
3-prong dryer cord/30A/4' long (cat #WX9X2) is for
NEMA10-30R receptacle
4-prong dryer cord/30A/4' long (cat #WX9X18) is for
NEMA14-30R receptacle
Circuit Requirements:
An individual, properly-grounded branch circuit, protected
by a 30-amp circuit breaker or a time-delay fuse, is
required.
Electric Dryer Rating:
240V, 5000W, 25A, 60Hz
208V, 4784W, 23A, 60Hz
Note: Dryer wall outlet must be located within 36" of
service cord entry and accessible when dryer is mounted
in position.
Installation Information: For complete information, see
installation
instructions packed with your dryer.
For answers to your Monogram,
GE Profile
®
GE
appliance questions, visit our website at
®
geappliances.com or call GE Answer Center
service, 800.626.2000.
Power Cord Locations 7.8 cu. ft. dryers
or
®
Specification Created 7/12
Listed by
Underwriters
Laboratories
370171
