HP StorageWorks DC SAN Director Switch 10/24 FCoE Blade
The HP DC SAN Director Switch 10/24 FCoE Blade is a rebranded version of the Brocade FCOE10-24
blade (Figure

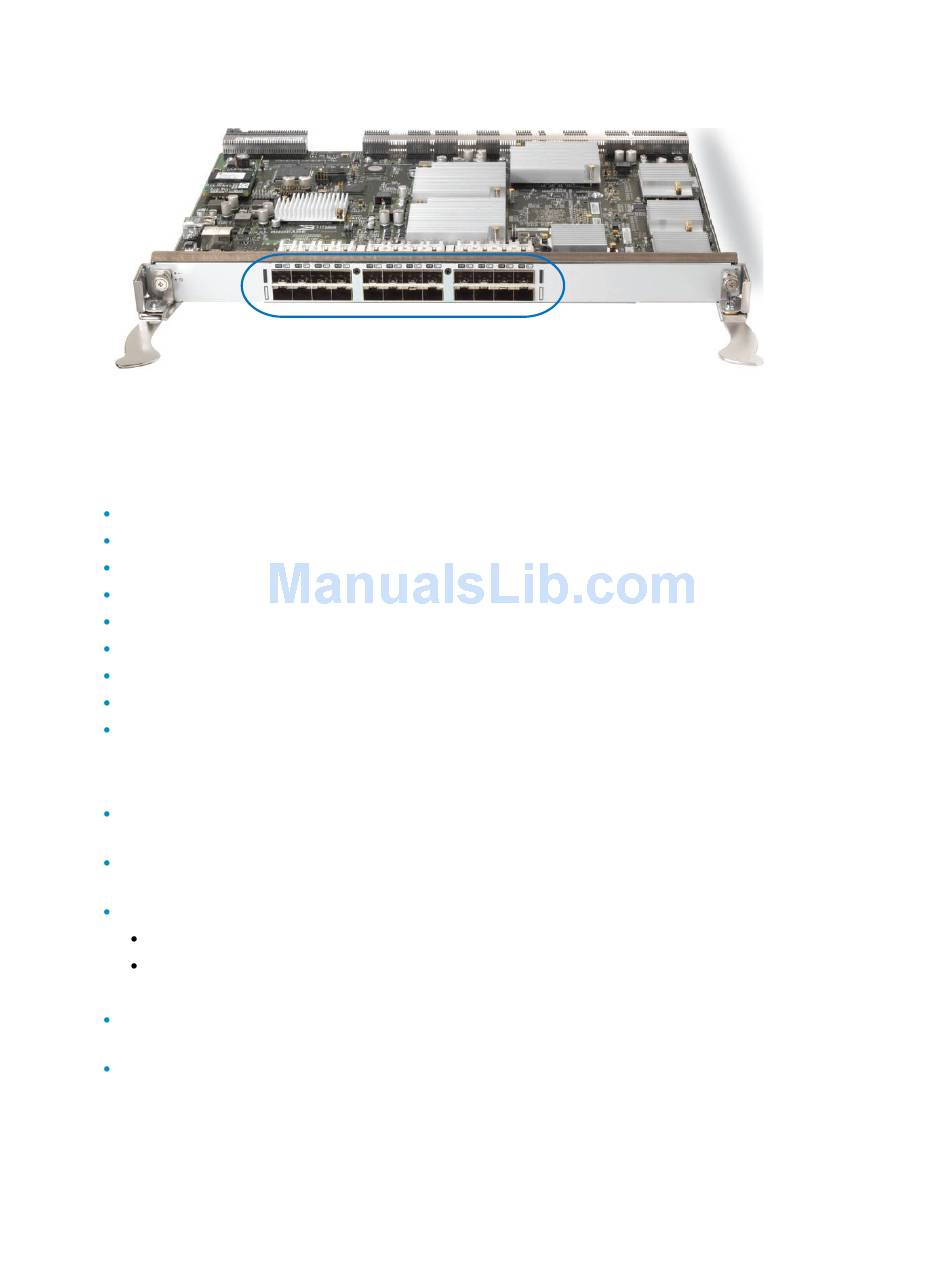

Figure 3 HP DC SAN Director Switch 10/24 FCoE Blade
.
Features
24 10-GbE ports
32 8-Gb/s FC ports on the backplane (DC and DC04 SAN Directors only)
Hot pluggable
Blade power and status LEDs
Link status LEDs for each port
FCoE switching
CEE switching
L2 Ethernet protocols STP/MSTP/RSTP, VLAN tagging, and link aggregation
Standard Ethernet encapsulation
Considerations
The DC SAN Director Switch 10/24 FCoE Blade has 24 FCoE ports and can be installed in either
a DC or DC04 SAN director.
The DC SAN Director Switch 10/24 FCoE Blade enables server edge connectivity by connecting
CNAs directly to any of its 24 Ethernet ports.
Storage can be connected to:
Any other Fibre Channel blade in the same director
Any Fibre Channel switch that is in the same fabric as the DC or DC04 SAN Director that
contains the DC SAN Director Switch 10/24 FCoE Blade
The DC SAN Director Switch 10/24 FCoE Blade supports optical cabling and SFP+ transceivers
only.
There are no licensing requirements for this blade.
3).
