Brother KE-484C Parts List

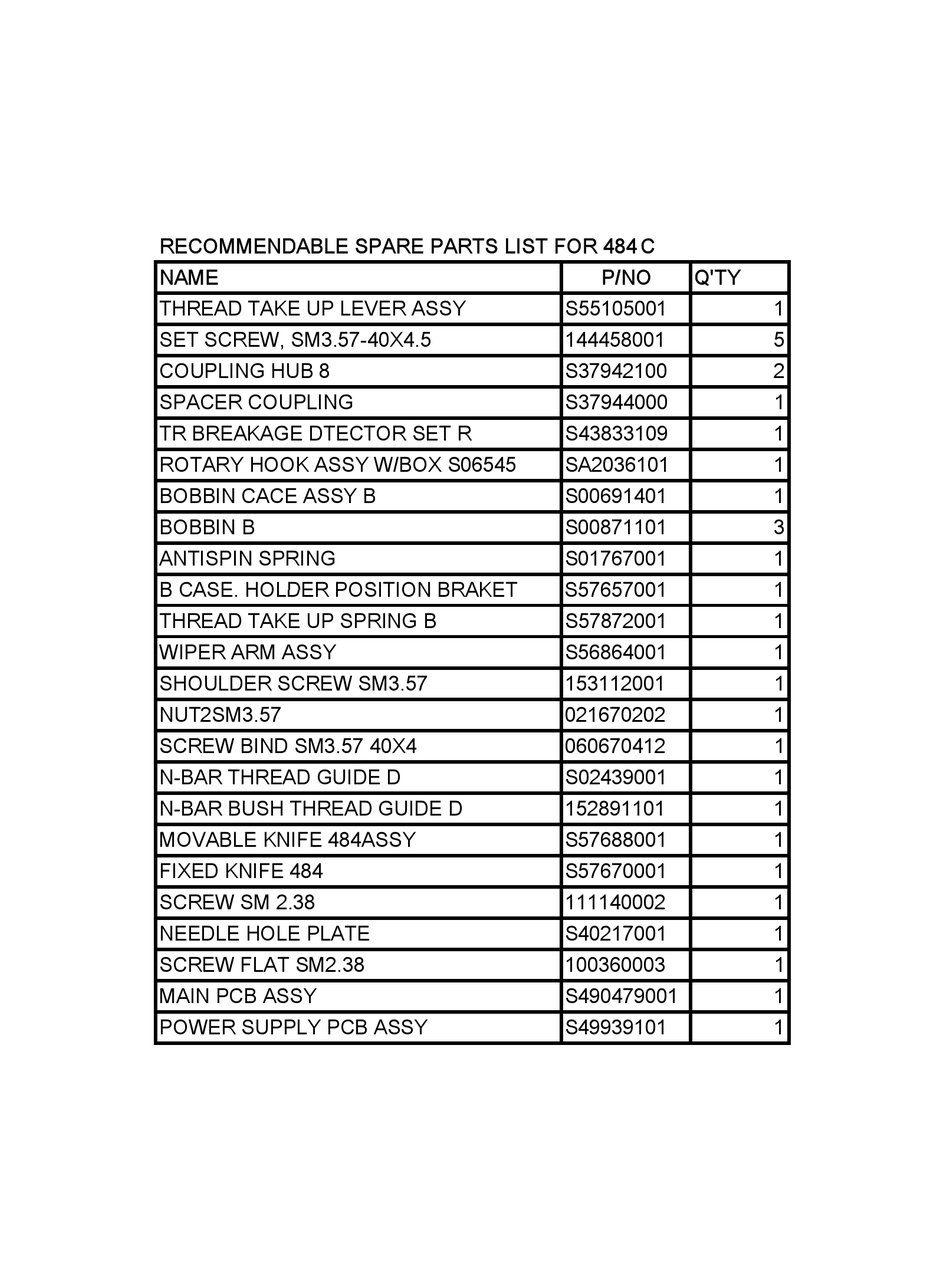

RECOMMENDABLE SPARE PARTS LIST FOR 484Ｃ
NAME
THREAD TAKE UP LEVER ASSY
SET SCREW, SM3.57-40X4.5
COUPLING HUB 8
SPACER COUPLING
TR BREAKAGE DTECTOR SET R
ROTARY HOOK ASSY W/BOX S06545
BOBBIN CACE ASSY B
BOBBIN B
ANTISPIN SPRING
B CASE HOLDER POSITION BRAKET B CASE. HOLDER POSITION BRAKET
THREAD TAKE UP SPRING B
WIPER ARM ASSY
SHOULDER SCREW SM3.57
NUT2SM3.57
SCREW BIND SM3.57 40X4
N-BAR THREAD GUIDE D
N-BAR BUSH THREAD GUIDE D
MOVABLE KNIFE 484ASSY
FIXED KNIFE 484
SCREW SM 2.38
NEEDLE HOLE PLATE
SCREW FLAT SM2.38
MAIN PCB ASSY
POWER SUPPLY PCB ASSY
P/NO Q'TY
S55105001
144458001
S37942100
S37944000
S43833109
SA2036101
S00691401
S00871101
S01767001
S57657001 S57657001
S57872001
S56864001
153112001
021670202
060670412
S02439001
152891101
S57688001
S57670001
111140002
S40217001
100360003
S490479001
S49939101
1
5
2
1
1
1
1
3
1
1 1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
