Msa2000 3.5 12-Drive Enclosure Exploded View; Msa2000 3.5 12-Drive Enclosure Parts List - HP StorageWorks 2000fc - G2 Modular Smart Array User Manual

3

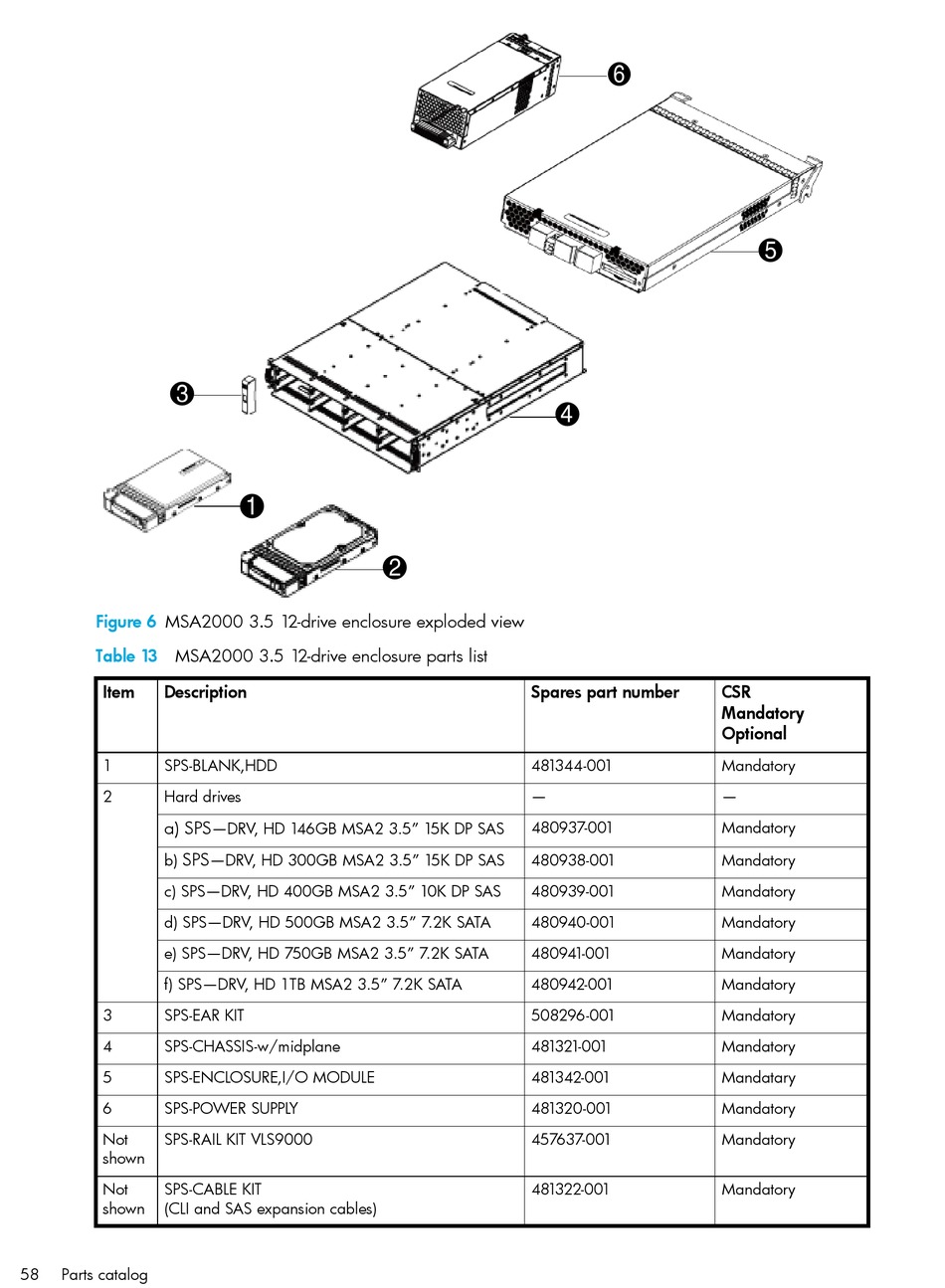

Figure 6

MSA2000 3.5 12-drive enclosure exploded view

Table 13

MSA2000 3.5 12-drive enclosure parts list

Item Description
1 SPS-BLANK,HDD
2 Hard drives
a) SPS
SPS
b)
c) SPS—DRV, HD 400GB MSA2 3.5" 10K DP SAS
d) SPS—DRV, HD 500GB MSA2 3.5" 7.2K SATA
e) SPS—DRV, HD 750GB MSA2 3.5" 7.2K SATA
f) SPS—DRV, HD 1TB MSA2 3.5" 7.2K SATA
3 SPS-EAR KIT
4 SPS-CHASSIS-w/midplane
5 SPS-ENCLOSURE,I/O MODULE
6 SPS-POWER SUPPLY
Not SPS-RAIL KIT VLS9000
shown
Not SPS-CABLE KIT
shown (CLI and SAS expansion cables)
