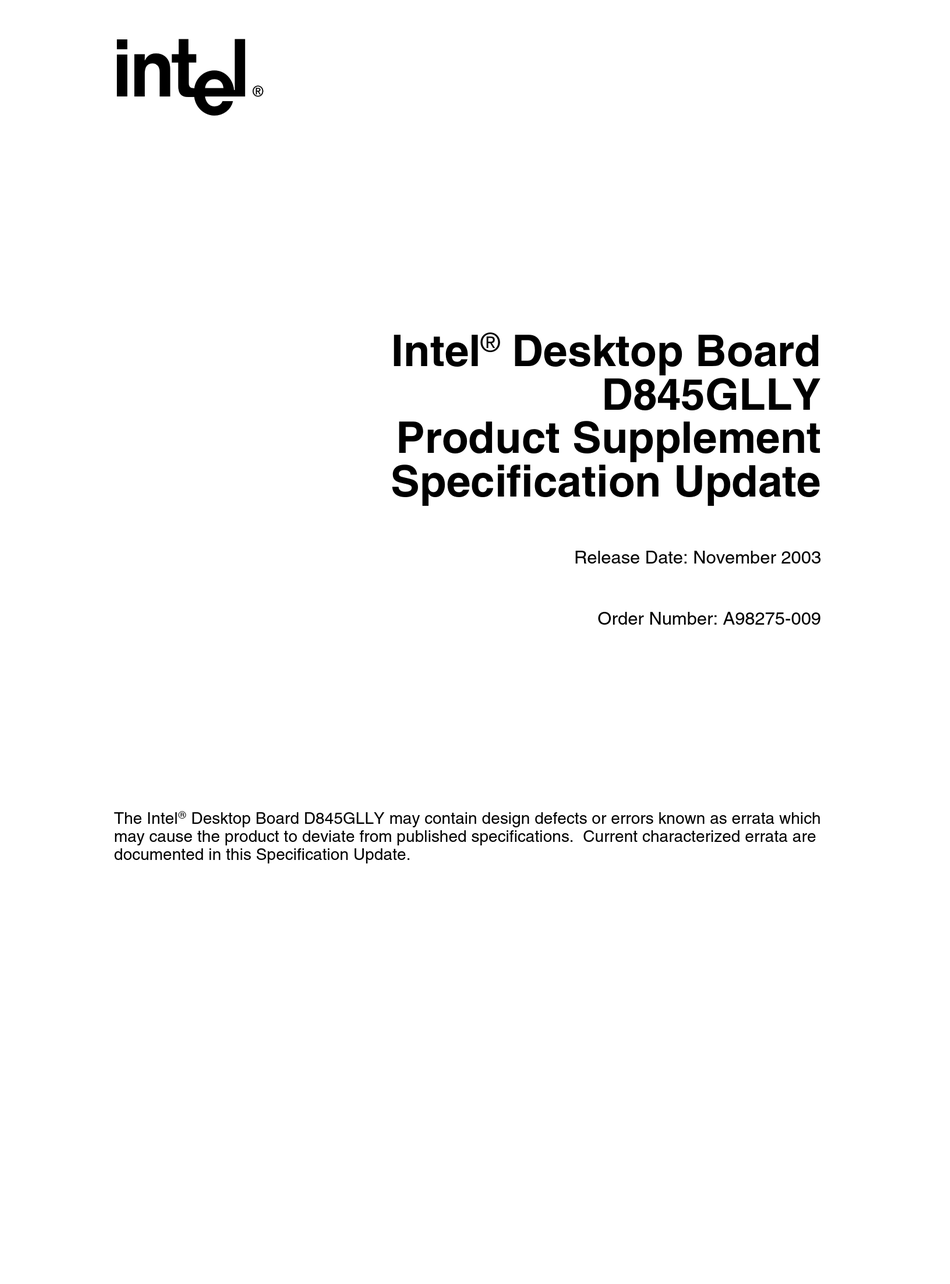

Intel
Desktop Board
D845GLLY
Product Supplement
Specification Update
Release Date: November 2003
Order Number: A98275-009
The Intel
Desktop Board D845GLLY may contain design defects or errors known as errata which
may cause the product to deviate from published specifications. Current characterized errata are
documented in this Specification Update.
Advertisement
Related Manuals for Intel D845GLLY
Summary of Contents for Intel D845GLLY
- Page 1 Release Date: November 2003 Order Number: A98275-009 The Intel Desktop Board D845GLLY may contain design defects or errors known as errata which may cause the product to deviate from published specifications. Current characterized errata are documented in this Specification Update.
- Page 2 Contact your local Intel sales office or your distributor to obtain the latest specifications before placing your product order. Copies of documents which have an ordering number and are referenced in this document, or other Intel literature, may be obtained from: Intel Corporation P.O.
- Page 3 CONTENTS REVISION HISTORY ...........................v PREFACE ..............................vi Product Supplement Specification Update for the Intel Desktop Board D845GLLY GENERAL INFORMATION ..........................3...
-
Page 5: Revision History
Intel Desktop Board D845GLLY Product Supplement Specification Update REVISION HISTORY Date of Revision Version Description June 2002 -001 This document is the first Product Supplement Specification Update for the Intel Desktop Board D845GLLY. August 2002 -002 Updated General Information Section. Removed Printed Board Assembly (PBA) information from the document, as this reference is no longer valid. - Page 6 298589) for specification updates concerning the 82845GL MCH Controller and that may apply to the desktop board D845GLLY. Unless otherwise noted in this document, it should be assumed that any MCH errata for a given stepping are applicable to the Altered Assembly (AA) revision(s) associated with that stepping.
- Page 7 Product Supplement Specification Update for the ® Intel Desktop Board D845GLLY...
-
Page 9: General Information
Intel Desktop Board D845GLLY Product Supplement Specification Update GENERAL INFORMATION Basic Desktop Board D845GLLY Identification Information AA Revision BIOS Revision Notes A84242-203 LY84510A.86A.0007.P01 A84242-204 LY84510A.86A.0008.P02 A84242-205 LY84510A.86A.0009.P03 A84242-206 LY84510A.86A.0011.P05 A84242-207 LY84510A.86A.0011.P05 A84242-208 LY84510A.86A.0022.P08 A84242-209 LY84510A.86A.0023.P09 A84242-210 LY84510A.86A.0029.P11 A84242-211 LY84510A.86A.0038.P15 A84741-203 LY84510A.86A.0009.P03... - Page 10 Refer to the Intel 845 Chipset: 82845 Memory Controller Hub (MCH) Specification Update (Order Number 298589) for errata related to the 82850/82850E MCH that may apply to the desktop board D845GLLY. Refer to the Intel 82801DB I/O Controller Hub 4 (ICH4) Specification Update (Order Number 290745) for errata related to...
- Page 11 The following table indicates the Specification Changes, Errata, Specification Clarifications, or Documentation Changes that apply to the desktop board D845GLLY. Intel intends to fix some of the errata in a future revision of the desktop board, and to account for the other outstanding issues through documentation or specification changes as noted.
- Page 12 Refer to the Intel Desktop Board 845GL Chipset Family Specification Update (Order number (A98269) for this specification clarification Refer to the Intel Desktop Board 845GL Chipset Family Specification Update (Order number (A98269) for this specification clarification PLANS DOCUMENTATION CHANGES...
