ODD Module Installation

Attach the screws to secure the ODD bracket.
1.
On the underside of the ODD module, attach the left side latch first, and then push the ODD
2.
bezel to secure it to the tray.
3-18

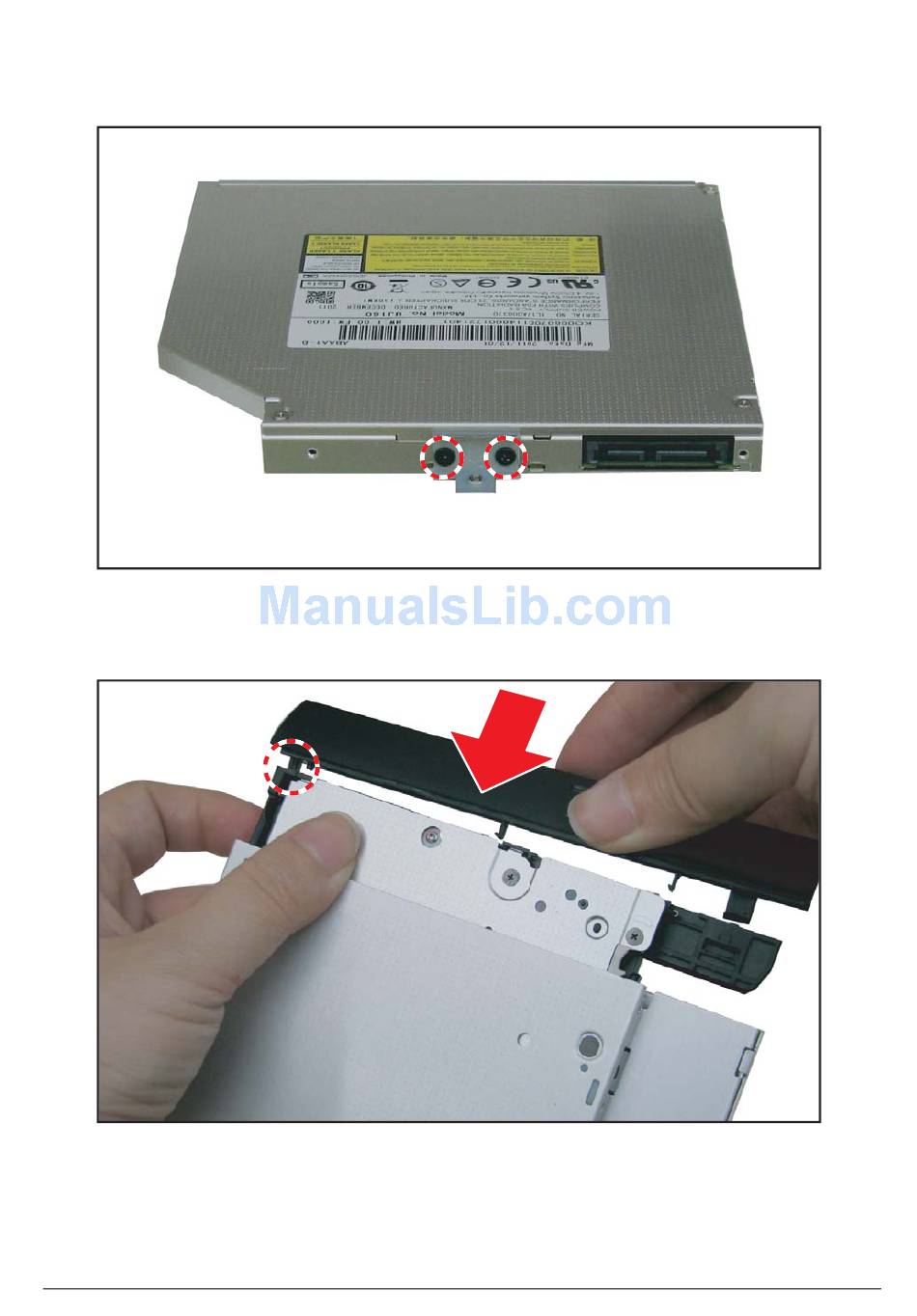

Figure 3:19. Attaching the ODD Bracket
Figure 3:20. Attaching the ODD bezel
Service and Maintenance
