ODD Module Removal

Prerequisite:
Remove the screw securing the ODD module to the lower case.
1.
Pull to remove the ODD module out from the slot.
2.
Service and Maintenance
Battery Pack Removal

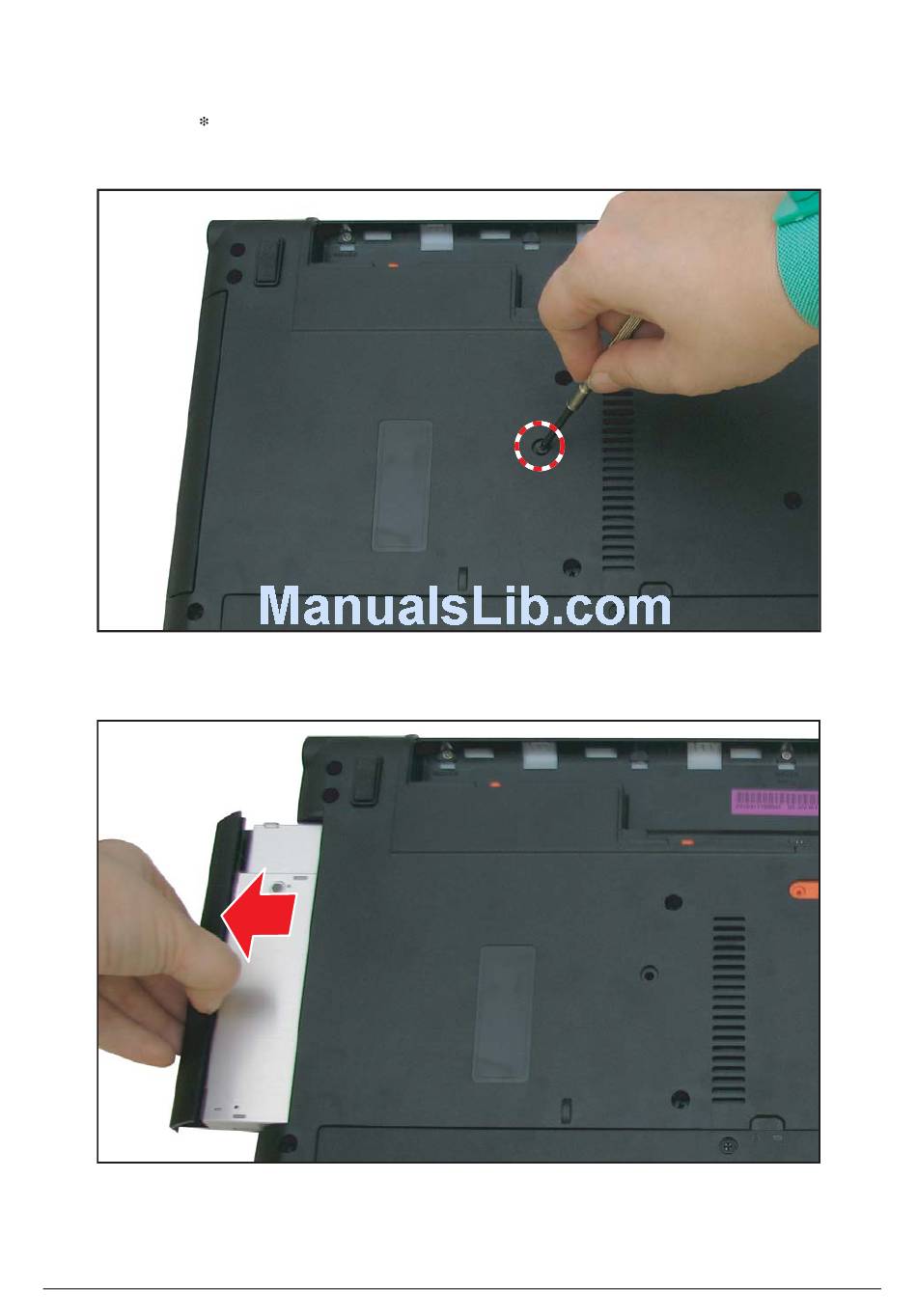

Figure 3:13. Removing the ODD Module Screw
Figure 3:14. Removing the ODD Module
on page 3-7
3-15
