CPU Removal
Prerequisite:

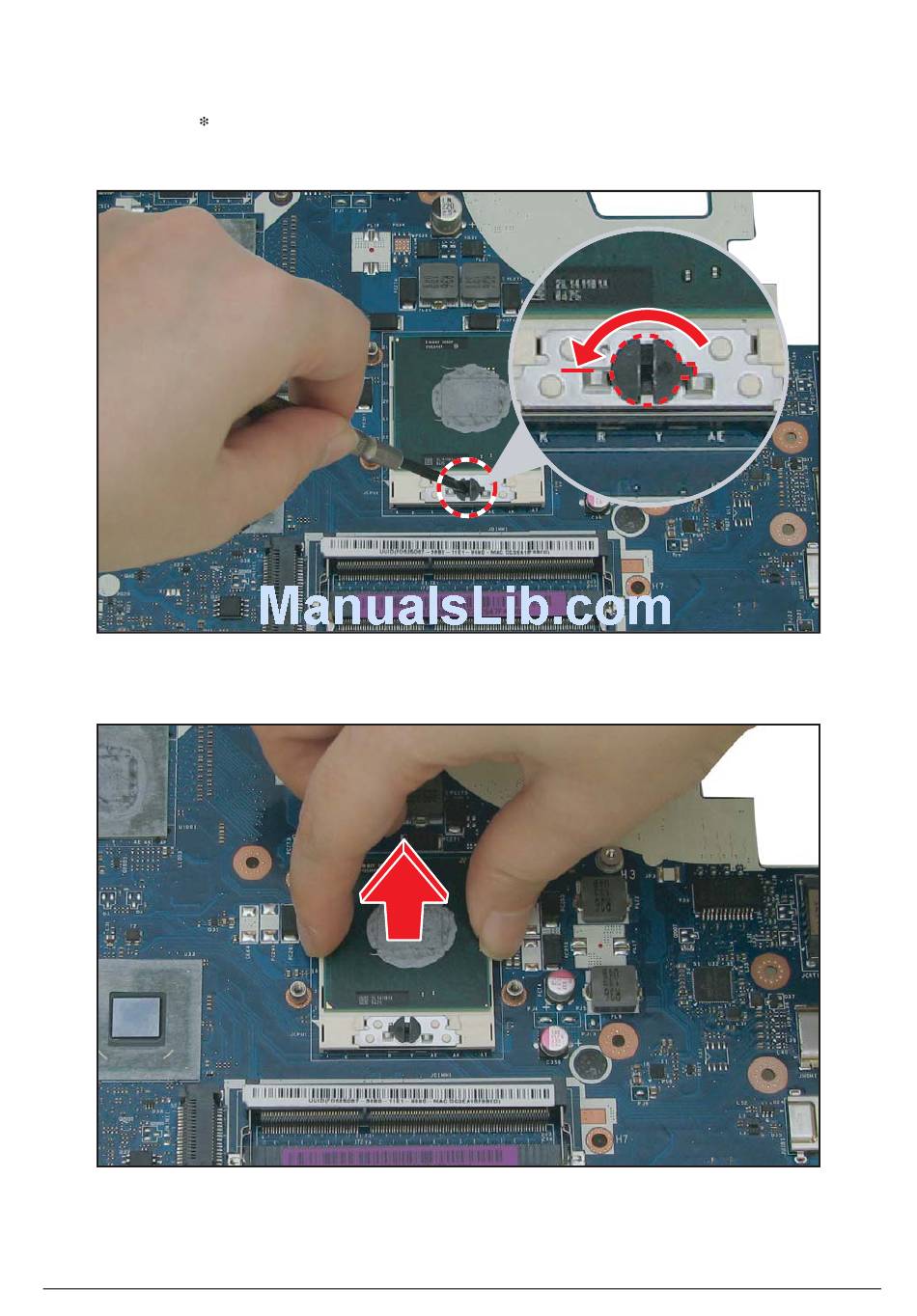

Using a flat screwdriver, turn the captive screw 180º counter-clockwise to release the CPU.
1.
Lift to remove the CPU from the mainboard socket.
2.
Service and Maintenance
Thermal Module Removal
Figure 3:83. Removing the CPU (1 of 2)
Figure 3:84. Removing the CPU (2 of 2)
on page
3-53
3-57
