Pull the mainboard by the right side to release the left side connectors from the slots on the
6.
lower case.
On the underside of the mainboard, disconnect the DC-in cable connector from the mainboard
7.
connector.
3-48

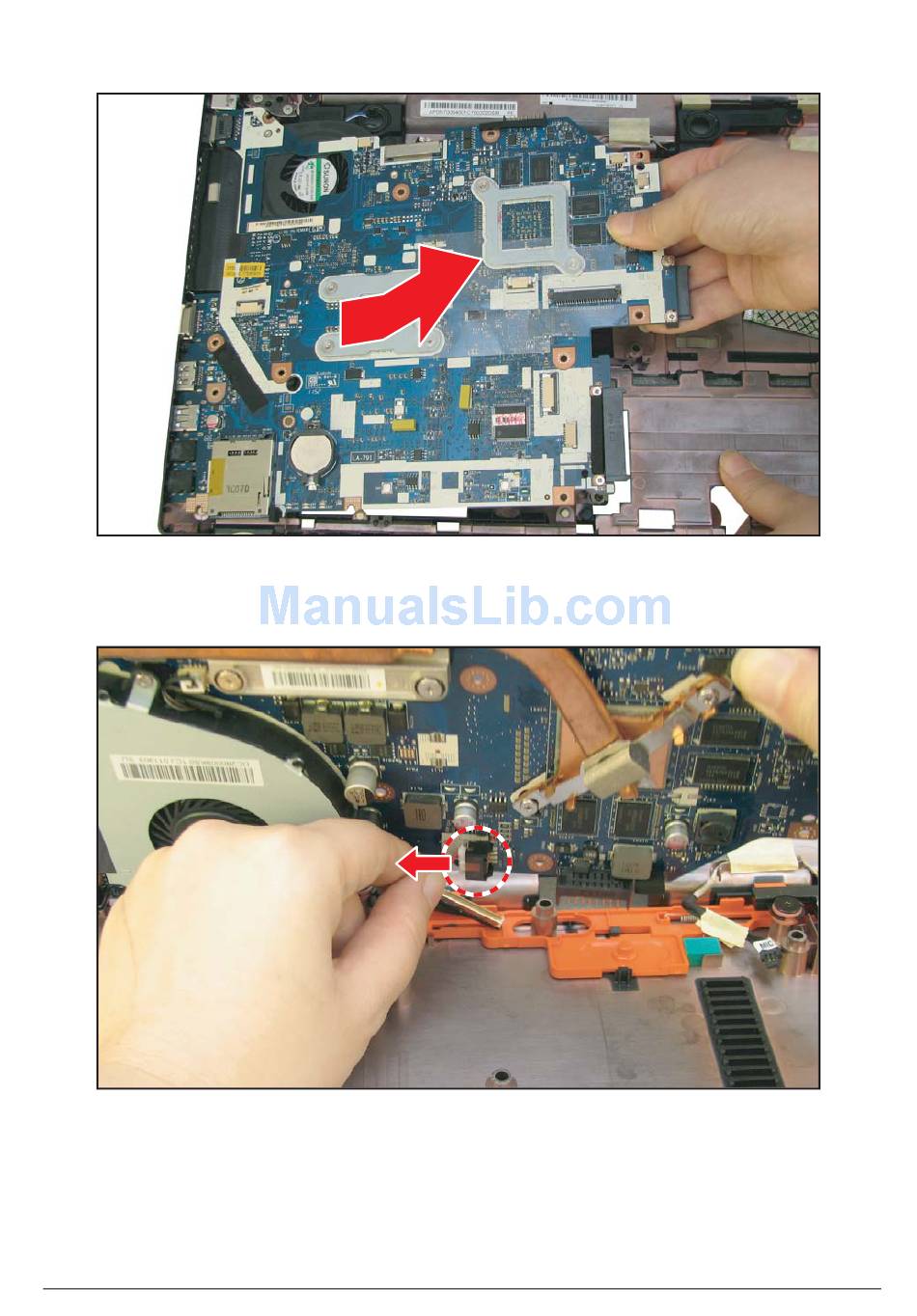

Figure 3:69. Removing the Mainboard
Figure 3:70. Disconnecting the DC-In Cable
Service and Maintenance
