Disconnect the keyboard cable connector from the mainboard connector.
7.
The following modules are found:
•
DC-In Module (A), see
•
Speakers (B), see
•
LVDS Cable (C)
•
Microphone Module (D), see **
•
RTC Battery (E),
•
USB Module (F), see
A
Service and Maintenance

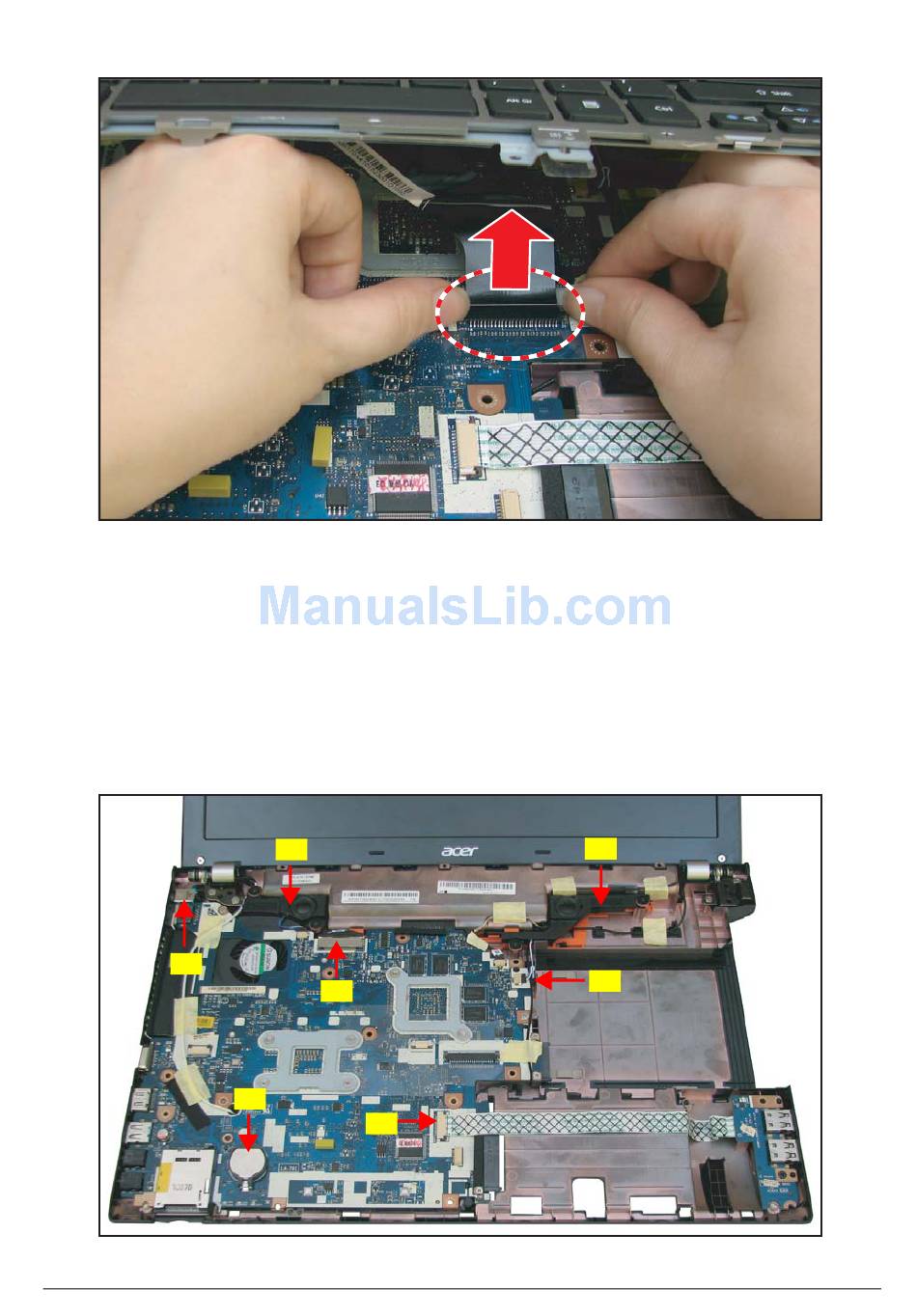

Figure 3:54. Disconnecting the Keyboard Cable
Keyboard Removal
Speaker Removal
seeRTC Battery Removal
USB Module Removal
B
C
E
F
Figure 3:55. Mainboard Overview
on page
3-73
on page
3-59
on page
3-44
on page
3-65
B
D
3-39
