HP P6000 Replacement Instructions

Hp p6300/p6500 eva iscsi or iscsi/fcoe controller enclosure replacement instructions (593089-001, june 2011)
Hide thumbs


Advertisement

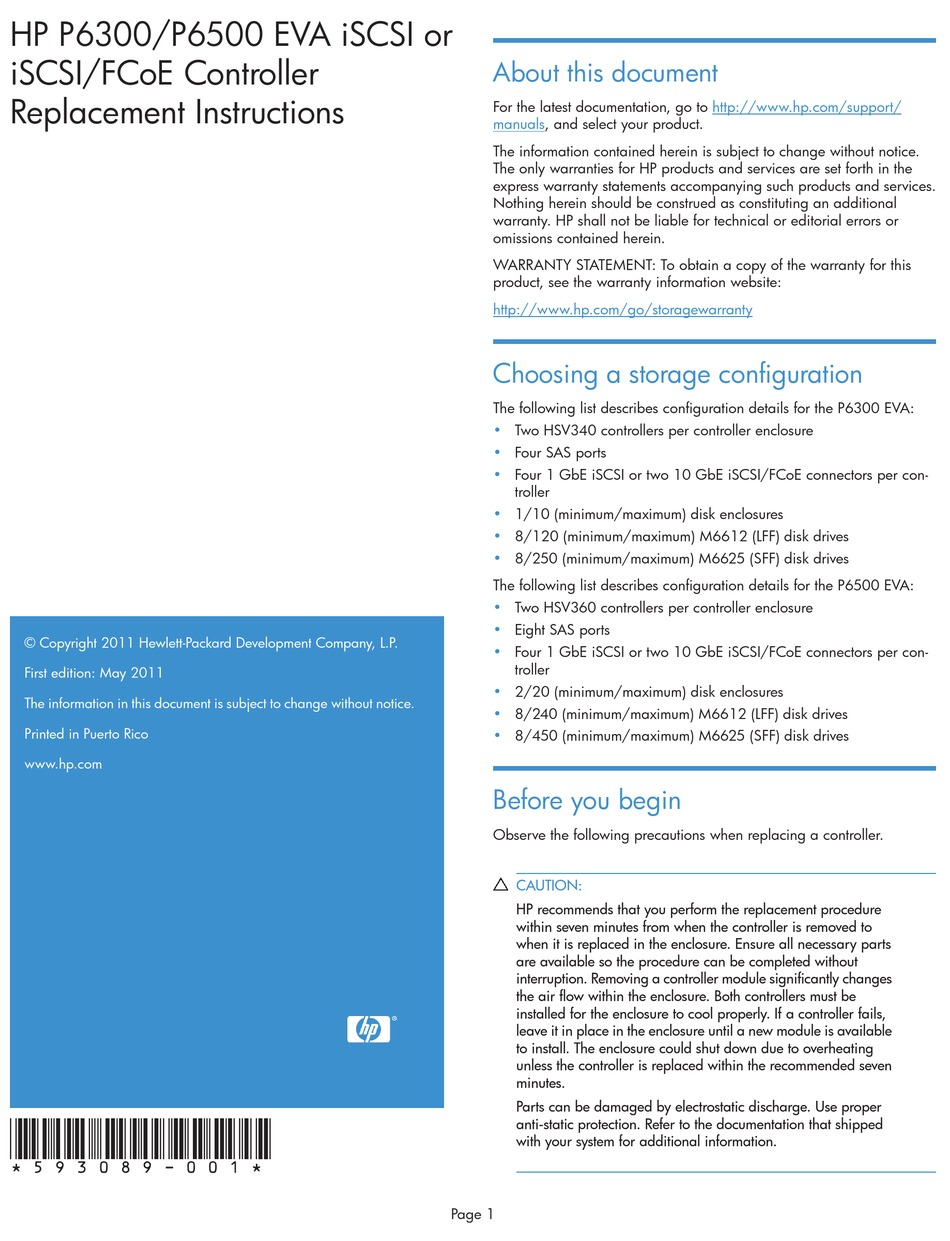

HP P6300/P6500 EVA iSCSI or
iSCSI/FCoE Controller
Replacement Instructions
© Copyright 2011 Hewlett-Packard Development Company, L.P.
First edition: May 2011
The information in this document is subject to change without notice.
Printed in Puerto Rico
www.hp.com
*593089-001*
About this document
For the latest documentation, go to
manuals, and select your product.
The information contained herein is subject to change without notice.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional
warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
WARRANTY STATEMENT: To obtain a copy of the warranty for this
product, see the warranty information website:
http://www.hp.com/go/storagewarranty
Choosing a storage configuration
The following list describes configuration details for the P6300 EVA:
Two HSV340 controllers per controller enclosure
Four SAS ports
Four 1 GbE iSCSI or two 10 GbE iSCSI/FCoE connectors per con-
troller
1/10 (minimum/maximum) disk enclosures
8/120 (minimum/maximum) M6612 (LFF) disk drives
8/250 (minimum/maximum) M6625 (SFF) disk drives
The following list describes configuration details for the P6500 EVA:
Two HSV360 controllers per controller enclosure
Eight SAS ports
Four 1 GbE iSCSI or two 10 GbE iSCSI/FCoE connectors per con-
troller
2/20 (minimum/maximum) disk enclosures
8/240 (minimum/maximum) M6612 (LFF) disk drives
8/450 (minimum/maximum) M6625 (SFF) disk drives

Before you begin

Observe the following precautions when replacing a controller.
CAUTION:
HP recommends that you perform the replacement procedure
within seven minutes from when the controller is removed to
when it is replaced in the enclosure. Ensure all necessary parts
are available so the procedure can be completed without
interruption. Removing a controller module significantly changes
the air flow within the enclosure. Both controllers must be
installed for the enclosure to cool properly. If a controller fails,
leave it in place in the enclosure until a new module is available
to install. The enclosure could shut down due to overheating
unless the controller is replaced within the recommended seven
minutes.
Parts can be damaged by electrostatic discharge. Use proper
anti-static protection. Refer to the documentation that shipped
with your system for additional information.
Page 1
http://www.hp.com/support/

Advertisement

Table of Contents
loading

  Also See for HP P6000

  Related Manuals for HP P6000

  Summary of Contents for HP P6000

  • Page 1: Before You Begin

    The following list describes configuration details for the P6500 EVA: • Two HSV360 controllers per controller enclosure • Eight SAS ports © Copyright 2011 Hewlett-Packard Development Company, L.P. • Four 1 GbE iSCSI or two 10 GbE iSCSI/FCoE connectors per con- troller First edition: May 2011 •...
  • Page 2: Verifying Component Failure

    (DHCP) IP addresses; they will be needed when configuring the replacement controller. Figure 2 Controller status LEDs Table 1 Controller status LEDs To save the iSCSI or iSCSI/FCoE module configuration, use HP P6000 Command View: Item Indication In the Navigation pane, select Hardware >...
  • Page 3: Removing A Controller

    Halting I/O on the failing controller To halt I/O to the failing controller, you must halt the controller (in HP P6000 Command View) and then shut down the iSCSI or iSCSI/FCoE module (using the module CLI): In HP P6000 Command View: In the Navigation pane, select Hardware >...
  • Page 4: Installing A Controller

    Figure 5 identifies the two DIMMs on the controller. Place the cover on the controller module rails and slide the cover over the controller until the latch clicks in place. 1. Slot 1 (policy memory) 2. Slot 2 (cache memory) Figure 5 Location of controller DIMMs Figure 8 Installing the controller cover Press the retaining clips outward to unlock each DIMM socket (1,...
  • Page 5: Verifying Proper Operation

    Complete the iSCSI or iSCSI/FCoE module configuration by using status. It should be (Good). either HP P6000 Command View or the module CLI. Verify that the management server has IP connectivity to the iSCSI or iSCSI/FCoE module management ports of both controllers.
