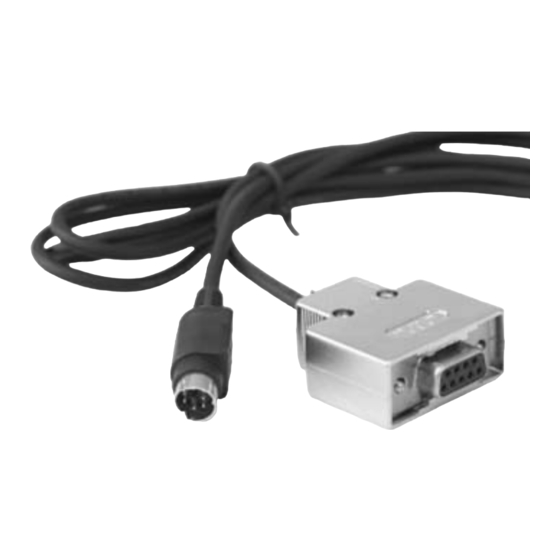

RS-232C Cable
Allows connection of the printer to a PC or
hand-held terminal.
Installation
1. Lift up the RS-232C port cover (1) on the printer
to expose the port.
2. Plug the RS-232C cable (2) firmly into the port.
Make sure that the arrow mark on the connector
of the RS-232C connector matches with the
arrow mark (3) by the side of the printer's port.
3. Plug the other end of the RS-232C cable into the
corresponding RS-232C connector of the
computer or hand-held terminal. For information
on the host device RS-232C connector, refer to
the relevant instruction manual.
English
Câble RS-232C
Permet de raccorder l'imprimante à un ordinateur
ou un terminal.
Installation
1. Localisez le couvercle du port d'interface
RS-232C (1) et ouvrez-le pour accéder au port.
2. Branchez une extrémité du câble RS-232C (2)
dans le port. Assurez-vous que la flèche (2)
indiquée sur le connecteur du câble RS-232C est
alignée avec la flèche (3) du connecteur de
l'imprimante.
3. Branchez l'autre extrémité du câble RS-232C
dans le connecteur RS-232C correspondant de
l'ordinateur ou du terminal. Pour des
renseignements sur le connecteur RS-232C du
dispositif hôte, consultez le manuel d'instructions
approprié.
Français
