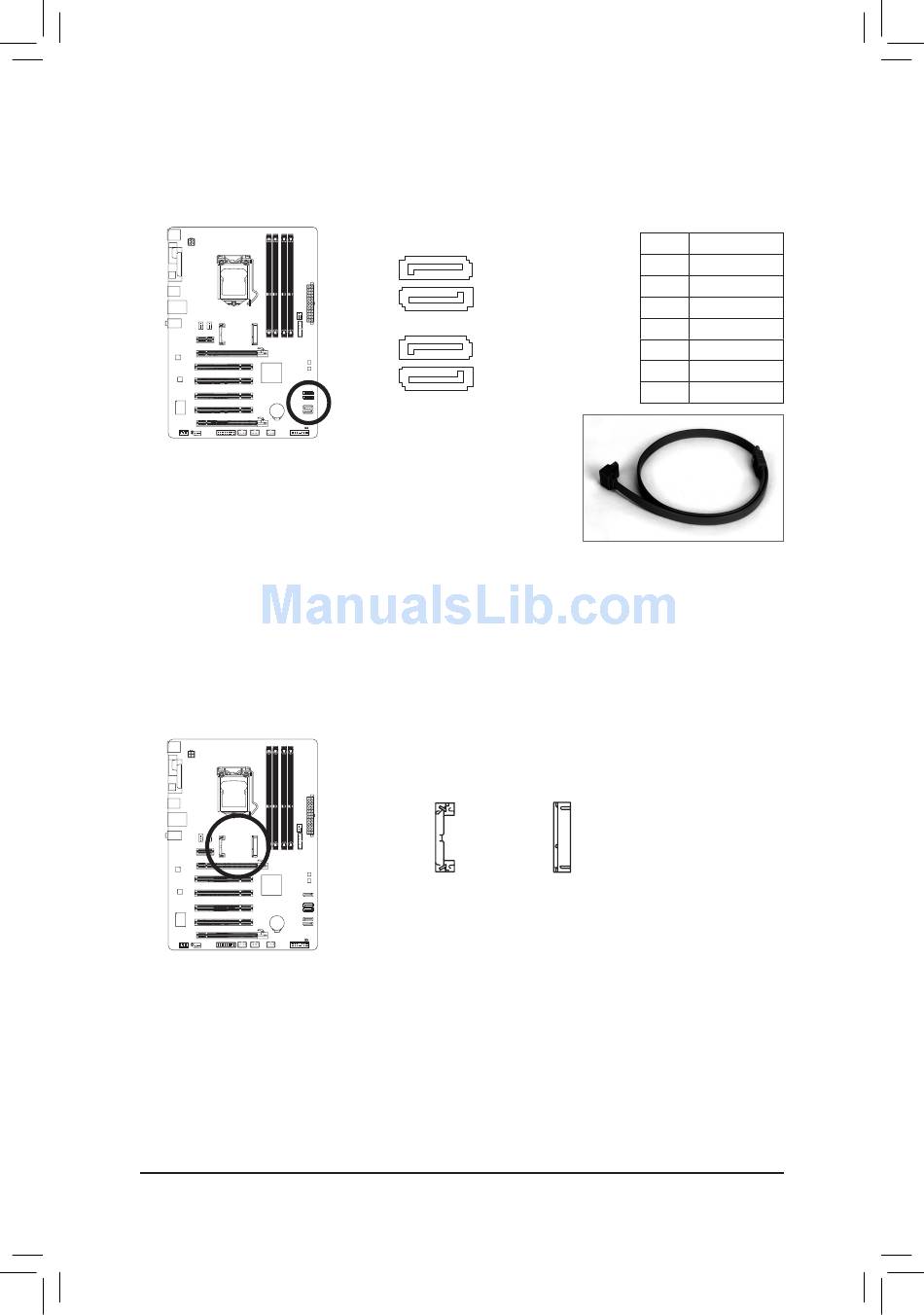

6) SATA2 1/2/3/4 (SATA 3Gb/s Connectors, Controlled by Intel B75 Chipset)
The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
Each SATA connector supports a single SATA device.
7) mSATA (Solid-State Drive Connector, Controlled by the Intel B75 Chipset)
The mSATA connector conforms to SATA 3Gb/s standard and can connect to a single solid-state
drive.
SATA2
7 1 1
1 7
2
7 1 3
1 7
4
mSATA
1
3 2 1
1
DIP
- 23 -
Pin No. Definition
1
2
3
4
5
6
7
Please connect the L-shaped end of
the SATA cable to your SATA hard
drive.
DIP
1 2 3
Hardware Installation
GND
TXP
TXN
GND
RXN
RXP
GND
