Making Connections

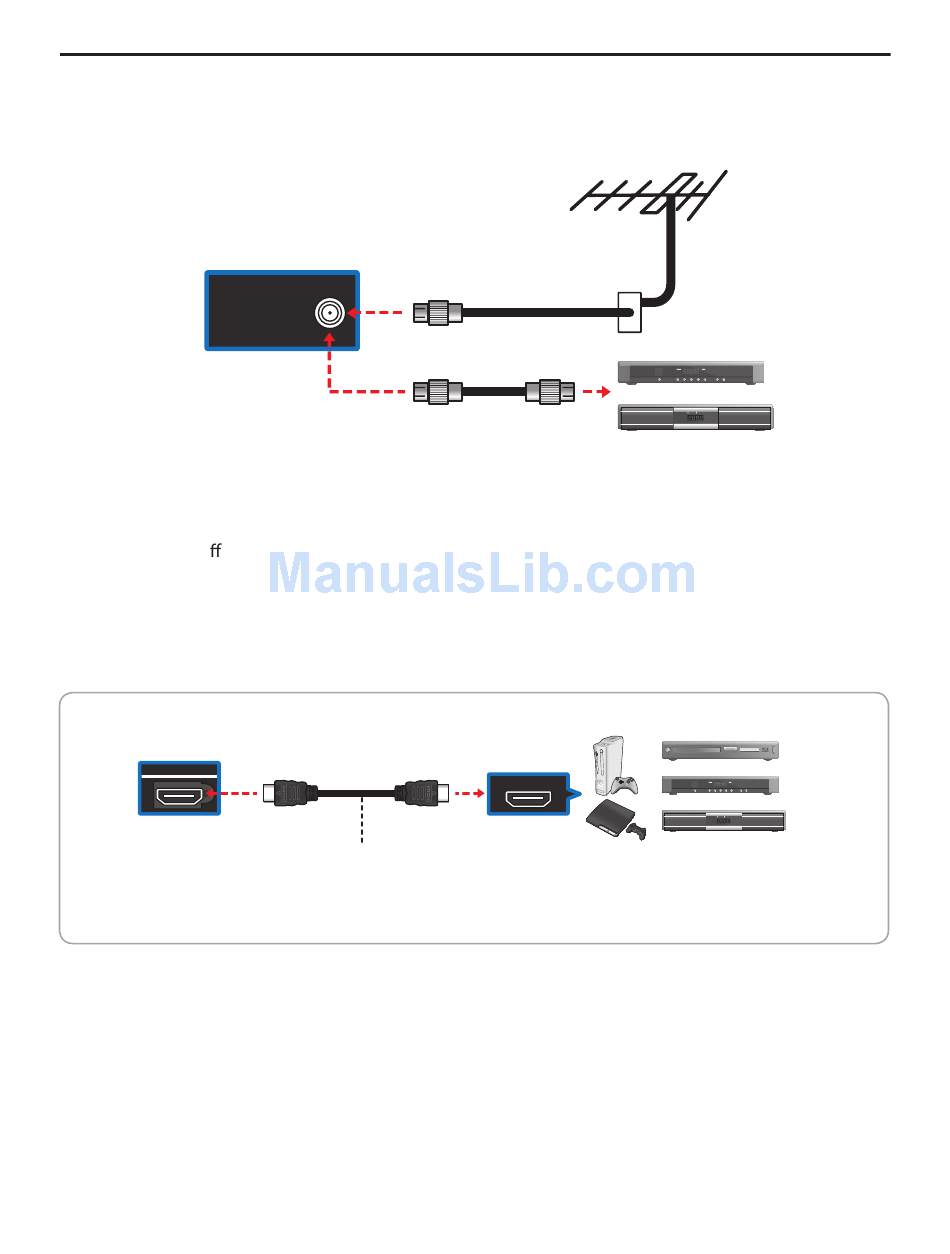

Connecting Antenna / Cable
Connect the 75 ohm coaxial cable directly to the DTV/TV Cable/Antenna jack of the TV.
DTV / TV
CABLE / ANTENNA
75 ohm coaxial cable
Connecting HD Devices
You can connect di erent devices to the TV using HDMI, DVI, Composite, or Component
connections. Check the type of connection available on your device.
HDMI
HDMI connection transmits both digital video and audio signals from an HDMI device to the TV.
Game Console / Blu-ray Player / Cable Box / Satellite
TV
TM
HDMI
HDMI
Video / Audio IN
Video / Audio OUT
HDMI cable
Note: The HDMI cable is not included with the TV.
