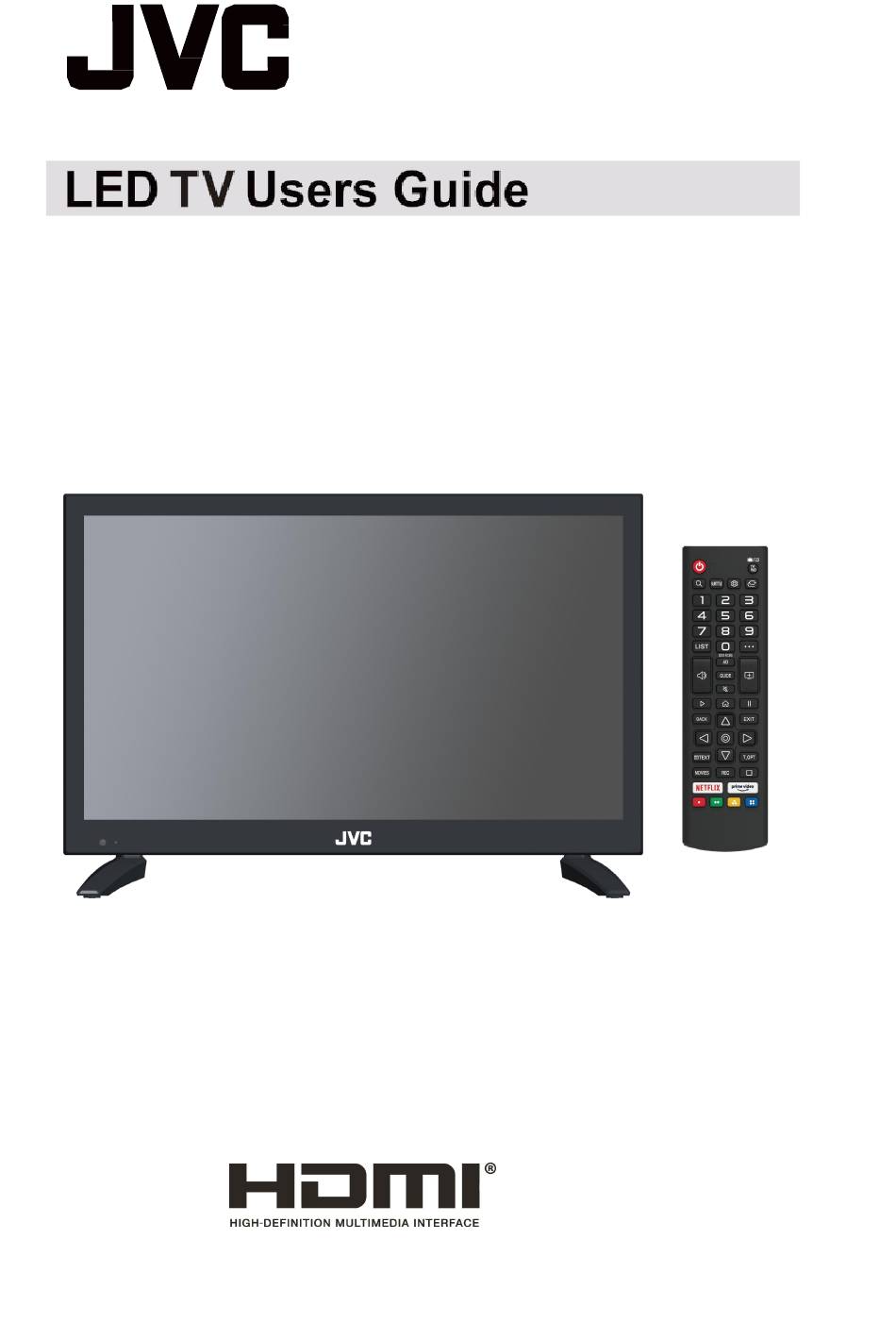

- Page 1 AV-J193155A 19” SMART LED TV OLNN-00082...
- Page 2 TABLE OF CONTENTS GETTING STARTED WARNINGS AND PRECAUTIONS..................2 IMPORTANT SAFETY INSTRUCTIONS................3-4 WALL MOUNT SPECIFICATIONS..................5 STAND INSTALLATION......................6 GENERAL PARTS......................7-8 REMOTE CONTROL.....................9 REMOTE CONTROL PREPARATION.................10 BASIC CONNECTION....................11-15 OPERATIONS INITIAL SETUP.......................16-21 HOME OF SMART TV......................22 SETTINGS........................23-28 TV GUIDE..........................29 RECORD........................30-31 MULTIMEDIA PLAYBACK.....................32 HOME DASHBOARD......................33 FOR REFERENCE MAINTENANCE........................34 SPECIFICATIONS......................34...
- Page 3 WARNINGS AND PRECAUTIONS Avoid damaging the AC plug. When the TV set will not be used for long periods of time, disconnect it from mains supply (or car outlet) as well as the antenna for your safety.
- Page 4 IMPORTANT SAFETY INSTRUCTIONS...
- Page 5 IMPORTANT SAFETY INSTRUCTIONS adaptor ： CONTENTS OF BOX 1 x TV Unit 2 x Legs 4 x Leg Screws 1 x Remote Control with 2x AAA batteries 1 x Car Adaptor...
- Page 6 WALL MOUNT SPECIFICATIONS Screw size for connecting the Compatible wall-mount size TV to the wall mount VESA 100*100(mm) M4x10(mm)* * The length of the screw specified is only a recommendation; actual length required can vary depending on the type of wall mount used. Note: 1.
- Page 7 STAND INSTALLATION Your TV is packaged with the unit and the legs separate. Unless the TV is wall-mounted, the legs must be securely attached to the TV before use. Step 1 Place the TV face down on a soft cloth or cushion to prevent the panel from being damaged.
- Page 8 GENERAL PARTS MAIN UNIT Front View Back View 1. LED display screen 2. Remote control sensor 3. Power indicator- In standby mode the indicator light will display red color; when turned on the indicator light will display blue color. 4. Stand holder 5.
- Page 9 GENERAL PARTS Rear View 1. Power input: Connect to the mains outlet via the mains plug. 2. Power input (DC): Connect to 12V power supply via the Car Adaptor. 3. LAN (Local Area Network) input terminal 4. OPTICAL output terminal 5.
- Page 10 REMOTE CONTROL STANDBY: Turn the TV ON/switch it to standby TV/RAD: Switch to TV or Radio channel. : Search function in networked mode. (For instance, press the button to call out the search box, input “YouTube” and press OK button to enter the APP.) SUBTITLE: Enable/disable subtitles.
- Page 11 REMOTE CONTROL PREPARATION BATTERY INSTALLATION ● Press and hold the arrow area on the back of Remote Control and pull outside to separate the back cover from the Remote Control. ● Insert two 1.5V AAA size batteries. Make sure to match the polarity markings (+/-) on the batteries with the indication inside the compartment.
- Page 12 BASIC CONNECTION ● Ensure all the cables are disconnected from the main unit before connecting to a power source. ● Read through the instructions before connecting other equipments. CONNECTING TO A POWER SOURCE This TV can be powered in two ways: 1.
- Page 13 CONNECT EXTERNAL ANTENNA TO UNIT Install external antenna into antenna jack for best picture. Antenna Outdoor antenna amplifier Indoor antenna amplifier 75 OHM Power plug antenna of antenna plug amplifier HDMI CONNECTION Use HDMI cable to connect the unit with HDMI cable (Not included) other devices to receive high-definition...
- Page 14 EARPHONE CONNECTION Earphone cable (Not included) USB CONNECTION USB Memory Device (Not included)
- Page 15 COMPOSITE AV (CVBS) CONNECTION AV cable (Not included) For basic connection, use the composite Audio L/R (white/red) and CVBS (yellow) cable to connect the unit with other devices. Back of DVD/VCR OPTICAL CONNECTION Use OPTICAL cable (not included) to connect the unit with amplifier or other audio decoding devices for digital audio signal output.
- Page 16 LAN (Local Area Network) Connection Use a LAN cable (not included) to connect this TV with available network. Playing Sound through Bluetooth Connect a smart device to the TV via Bluetooth to play sound from the smart device through the TV’s speakers. 1.Connect the TV to the network.
- Page 17 Note: Available settings vary depending on the model or region. Initial Setup ● When you turn on this TV for the first time, the initial setup will display on the screen. Common operations for the initial setup: When you turn on the TV first time, press OK button on remote control to connect to your TV as per the screen below.
- Page 18 Select the country Press Navigation button to select desired country. Press RIGHT button to highlight “Next” and press OK to the next step. Time Zone Press Navigation button to select desired time zone. Press RIGHT button to highlight “Next” and press OK to the next step. How to set up the TV Press Navigation button to select Mobile Device or TV.
- Page 19 Internet Connection Select “Skip” to go to next step directly, or select available wireless and input the password to connect to the network. Once you connect successfully, the next step is “Terms & Conditions”. Highlight “Next” and press OK button to enter the next step. Tick “Select All”, then highlight “Agree”...
- Page 20 User Environment Analysis: select the way to watch TV. Highlight “Next” and press OK button to enter the next step. Broadcast Address Settings: Input the service area postcode. Input the postcode, highlight “Enter” and press OK button to confirm. Highlight “Next” and press OK button to the next step.
- Page 21 TV installation type: Select installation method for your TV. Press navigation button to select “Stand” or “Wall-mounted”, then press OK button to enter the next step. SW Automatic Update: Turn on/off the function of software automatic update. Press navigation button to highlight “Next” and press OK button to the next step.
- Page 22 After programme tuning completed, highlight “Done” and press OK button to enter the next step. User Account Sign in to your account to enjoy recommended contents and various app service. Or select “Skip” to enter the next step. First Use is completed Highlight “Done”...
- Page 23 Home of Smart TV ● Before using Smart function, please connect a Wi-Fi or Wired network through “Initial Setup” or OSD menu (press button on the Remote Control and go to “Network”). ● Press (HOME) button on Remote Control to enter the HOME page of Smart TV. (The available of some apps and service may vary based on the Service Country.) 1.
- Page 24 Setting Menus ● The unit contains different setting menus. Once the initial programming is entered, it will remain in the memory until it is changed, and the unit can always be operated under the same conditions. ● Menu pictures are for reference only. They may vary due to software upgrade. ●...
- Page 25 1.3 Advanced Settings You can adjust the TV screen to the finest details as you like. 2. Sound 2.1 Sound Mode Standard: Optimises the sound for all type of content. Cinema: Optimises the sound for cinemas. Clear Voice: Boosts voice clarity. Cricket: Optimises the sound for sports games.
- Page 26 3. General 3.1 Accessibility Set up TV to fit individual needs to create a more convenient experience. Accessibility - Subtitle Highlight “Subtitle” and press OK button to enter the sub-page. Press OK button repeatedly to turn on or turn off the subtitle. 3.2 AI Service Set the detailed options for the AI function.
- Page 27 Press navigation button to select Wired Connection or Wi-Fi Connection. Wired Connection: If the router connected to the network supports the DHCP feature, connecting the TV and router by wire will automatically connect to the network. If the automatic setup is not supported, you can select Edit manually to set up the network connection.
- Page 28 TV Rating Locks: Prevents children from watching certain adult programmes, according to the ratings limit set. Select None/Lock All/G/PG/M/MA/AV/P, and press OK button to confirm. Programme Locks: Blocks the programmes that contain inappropriate contents for children. Highlight “Programme Locks” and press OK button to enter the sub-page, select desired programme and press OK button to confirm your selection, then press RED button to lock it.
- Page 29 4. Support 4.1 Software Update Check for software upgrade and update it if available. 4.2 User Guide Check descriptions for each webOS TV function. 4.3 Home/Store Mode Select the place where to use the TV. 4.4 TV Information Check TV information. 4.5 Privacy &...
- Page 30 TV Guide You can view programmes and the schedule of each programmes. In Live TV, press the GUIDE button on the remote control to enter the Guide interface. 1. Select each area to access the corresponding feature. 2. You can view information on the programme and broadcaster. 3.
- Page 31 Recording With the WebOS TV, you can use recording functions. A USB memory device must be inserted into one of the USB ports for any recording. Using Instant Recording 1. Connect a USB storage device (USB HDD, USB stick) to the USB port. (Note: Version 3.0, Min 32GB of memory for USB stick;...
- Page 32 Find the recording: Press “···” button on remote control and highlight “Recordings”, then press OK button to enter the recordings list. Delete the recordings: In the recordings list, highlight (Options) and press OK button to call out the option box, then select “Delete”...
- Page 33 Multimedia Playback Connecting USB Connect a USB storage device (USB HDD, USB stick) to the USB port on the TV to enjoy the content files stored on the USB storage device on your TV. (Min 32GB of memory for USB stick, and Min 128G for USB HDD) Press and select your connected USB, press OK button and select “Media files”...
- Page 34 Home Dashboard Press the button on remote control. Select “Home Hub” and press OK button to open (Note: The Home Dashboard of Smart TV may vary for different model.) 1. Displays the content of current source. 2. Wirelessly share content from your iPhone, iPad, or Mac. Make sure your device are on the same Wi-Fi or Ethernet network.
- Page 35 MAINTENANCE ● Be sure to press STANDBY button to set the player to the standby mode and disconnect the power plug before maintaining the player. ● If the surface is extremely dirty, wipe clean with a cloth which has been dipped in a weak soap-water solution and wrung out thoroughly, and then wipe again with a dry cloth.
- Page 36 GENERAL TROUBLESHOOTING This section summarises a few common issues you may encounter when using this TV. Contact Customer Service if you need more assistance. Symptom Remedy No power. Insert the power plug securely into the power outlet. No picture. Ensure that the equipment is connected properly. ●...
- Page 37 VIEW THE LATEST USER GUIDE ON YOUR TV WebOS software undergoes regular updates and improvements. We recommend referring to the User Guide on your TV as explained below to get the latest information. Press Button on your remote control to open Settings Menu. Use Arrow/OK Buttons to select (All Settings) ->...
- Page 38 Register your product at jvctv.com.au/warranty-registration...
