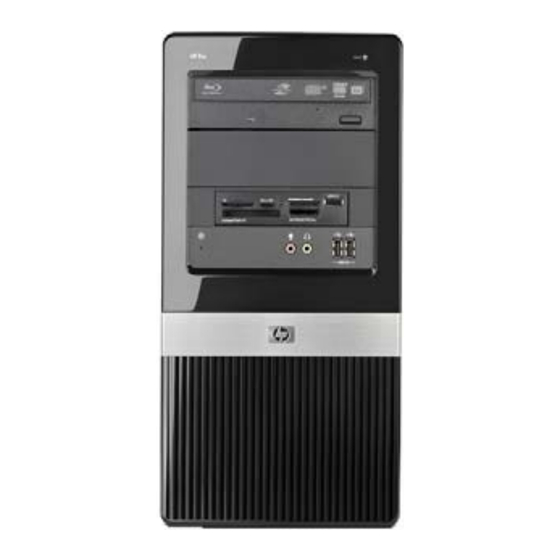

HP Pro 3005 - Microtower PC Manual

Illustrated parts & service map: hp pro 3005/3085 business pc microtower chassis
Hide thumbs Also See for Pro 3005 - Microtower PC:
1
2
3

Advertisement

Quick Links

Download this manual See also: Maintenance and Service Manual
Original version
Illustrated Parts & Service Map
HP Pro 3005/3085 Business PC

Microtower Chassis

©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Pentium,
Intel Inside, and the Intel logo are trademarks or registered trademarks of the
Intel Corporation and its subsidiaries in the U. S. and other countries.
Document Number 600835-001.
1st Edition November 2009.
Key Specifications
Processor Type
AMD Phenom™ II X3/X4 multi-core, AMD Athlon™ II X2/
X3/X4 multi-core, AMD Sempron™
RAM Type
DDR3-SDRAM DIMMs, PC2-10600 (1333 MHz) non-ECC
Maximum RAM Supported
8 GB
Expansion Slots
•
(2) PCI 2.3
•
(1) PCIe-x1
•
(1) PCIe-x16
Graphics Adapter
NVIDIA GeForce 9100 graphics controller with DX10 support
Chipset
NVIDIA MCP78OV
Drive Support
•
(2) external 5.25-inch optical disk drives
•
(1) external 3.5-inch drive (for optional media reader or
Pocket Media drive)
•
(2) internal 3.5-inch hard disk drives
I/O Interfaces
Front: (2) USB 2.0 ports, headphone output, microphone jack
Rear: (6) USB 2.0 ports, serial port, parallel port, PS2 key-
board and mouse, RJ-45 network interface, DVI-D and VGA
video interfaces, microphone jack, audio in/out jacks
Operating Systems
•
Windows 7
•
Windows Vista
•
Windows XP Professional, Windows XP Home
•
SuSE Linux Enterprise Desktop 11
•
FreeDOS
•
Red Flag Linux

Spare Parts

System Unit
1
Access panel
586372-001
2
Power supply, 300W, NPFC
463318-001
*
Power supply, 300W, 85% (APJ only)
575437-001
*
Power supply, 300W, PFC
508467-001
*
Power supply, 250W, PFC
508466-001
3
Chassis
not spared
4
Front bezel for use in HP Pro 3005
591599-001
*
Front bezel for use in HP Pro 3085
591606-001
*
5.25-inch bezel blank
536306-001
*
3.5-inch bezel blank
583094-001
Cables
1
Front I/O assembly
508463-001
2
Power switch/LED assembly
508464-001
3
SATA cable, 8.66-inch (22-cm), 2 straight ends
591600-001
*
SATA hard drive cable with latch, 6.5 inch
448670-001
*
SATA power dongle, 4 inch
449283-001
*
DMS-59 to dual DVI
463024-001
*Not shown
Keyboards (not illustrated)
PS/2, Basic
537745-xxx
USB, Standard
537746-xxx
USB SmartCard
537747-xxx
USB, Mini[e]
535873-xxx
USB, low cost
537924-xxx
Washable[g]
577495-xxx
Adriatic[f]
-BL1
Italian[d]
-061
Arabic[b][c][d]
-171
Japanese[a]
-291
Belgian[d]
-181
Korean
-KD1
BHCSY[b][d]
-B41
Norwegian[d]
-091
Czech[d]
-221
Portuguese[d]
-131
Danish[d]
-081
Romanian[d]
-271
Finnish[d]
-351
Russian[d]
-251
French[b][d]
-051
S. Chinese[a]
-AA1
French Arabic[d]
-DE1
Slovakian[d]
-231
French Canadian[a]
-121
Spanish[d]
-071
German[d]
-041
Swedish[d]
-101
Greek[d]
-151
Swiss[d]
-111
Hebrew[b][d]
-BB1
Taiwanese[a]
-AB1
Hong Kong
-AC1
Thailand[a]
-281
Hungarian[d]
-211
Turkish[d]
-141
Iceland[a][c][d]
-DD1
U.K.[d]
-031
International English
-L31
United States[a]
-001
[a] not for 537924-xxx
[e] 535873-xxx only for -201, -AA1, L31
[b] not for 537747-xxx
[f] 537747-xxx only
[c] not for 537746-xxx
[g] 577495-xxx only for -001, -121
[d] not for 537745-xxx
Mass Storage Devices (not illustrated)
Blu-ray Disc ROM with SuperMulti DVD±R/RW DL Drive
581601-001
DVD±RW and CD-RW SuperMulti DL Combo Drive with LightScribe
581600-001
DVD-ROM drive
581599-001
500 GB SATA hard drive,
586720-001
250 GB SATA hard drive
586719-001
250-GB external USB hard drive
586383-001
160 GB SATA hard drive
586718-001
