3. HARDWARE SETUP

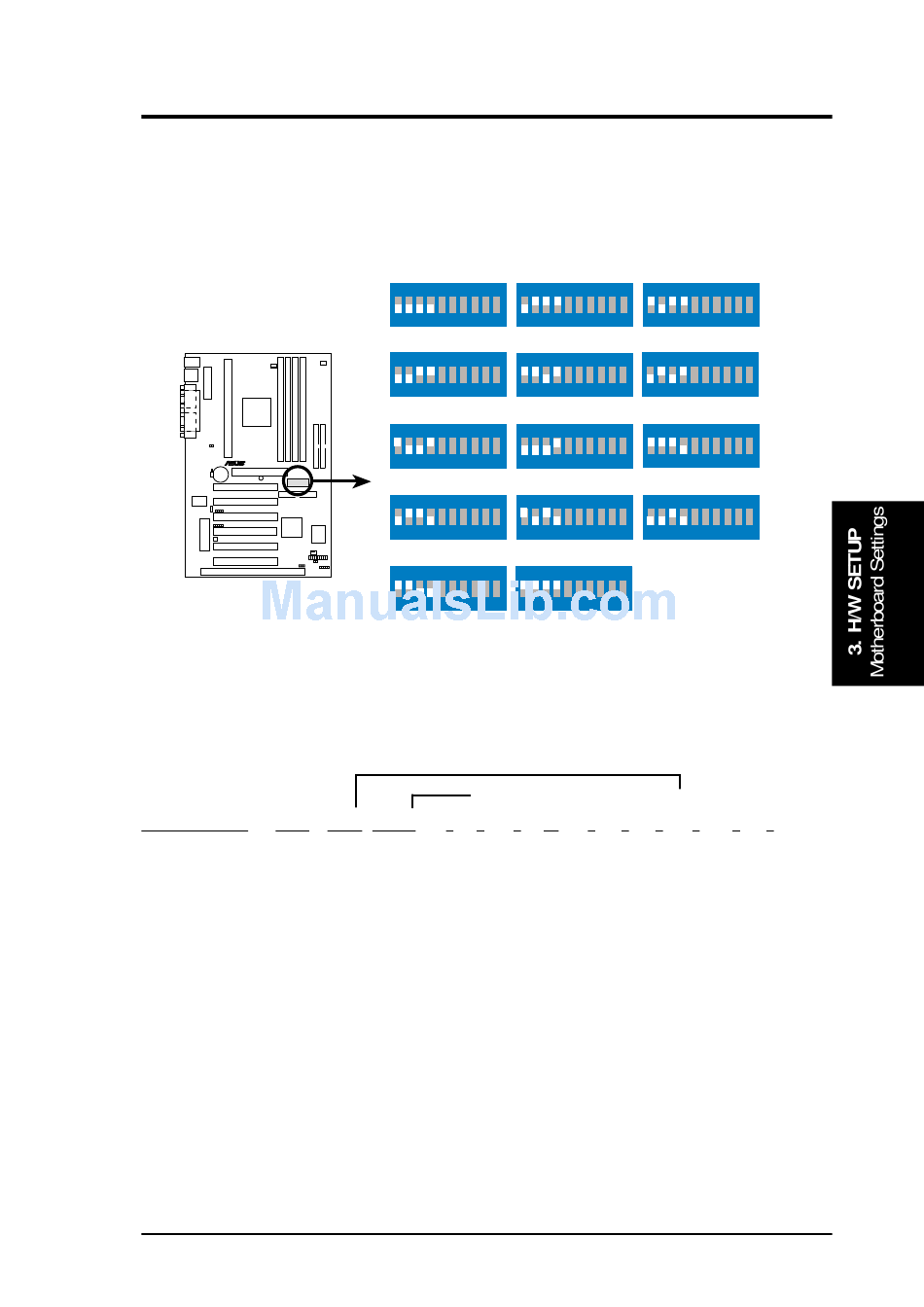

4. CPU Core:BUS Frequency Multiple (U12–Switches 1, 2, 3, 4)
This option sets the frequency multiple between the Internal frequency of the
CPU and the CPU's External frequency. These must be set in conjunction with the
CPU Bus Frequency.
NOTE: In JumperFree mode, all dip switches must be set to OFF.
P3V4X
R
P3V4X CPU : BUS
Frequency Multiple
Adjusting CPU Settings Manually
NOTE: JumperFree mode must be disabled when adjusting CPU settings manually.
Set the jumpers by the Internal speed of your processor as follows:
Intel CPU Model Freq.
Pentium III 733MHz 5.5x 133MHz [OFF][OFF][OFF][OFF] [OFF][OFF][OFF][ON] [ON][OFF]
Pentium III 667MHz 5.0x 133MHz [OFF][OFF][OFF][OFF] [ON][OFF][OFF][ON] [ON][OFF]
Pentium III 700MHz 7.0x 100MHz [OFF][OFF][OFF][ON] [ON][OFF][ON][OFF] [ON][OFF]
Pentium III 650MHz 6.5x 100MHz [OFF][OFF][OFF][ON] [OFF][ON][ON][OFF] [ON][OFF]
Pentium III 600MHz 6.0x 100MHz [OFF][OFF][OFF][ON] [ON][ON][ON][OFF] [ON][OFF]
Pentium III 550MHz 5.5x 100MHz [OFF][OFF][OFF][ON] [OFF][OFF][OFF][ON] [ON][OFF]
Pentium III 500MHz 5.0x 100MHz [OFF][OFF][OFF][ON] [ON][OFF][OFF][ON] [ON][OFF]
Pentium II/III 450MHz 4.5x 100MHz [OFF][OFF][OFF][ON] [OFF][ON][OFF][ON] [ON][OFF]
Pentium II 400MHz 4.0x 100MHz [OFF][OFF][OFF][ON] [ON][ON][OFF][ON] [ON][OFF]
Pentium II 350MHz 3.5x 100MHz [OFF][OFF][OFF][ON] [OFF][OFF][ON][ON] [ON][OFF]
Celeron 466MHz 7.0x 66MHz [OFF][OFF][ON][ON] [ON][OFF][ON][OFF] [ON][OFF]
Celeron 433MHz 6.5x 66MHz [OFF][OFF][ON][ON] [OFF][ON][ON][OFF] [ON][OFF]
Celeron 400MHz 6.0x 66MHz [OFF][OFF][ON][ON] [ON][ON][ON][OFF] [ON][OFF]
Pentium II/Celeron 333MHz 5.0x 66MHz [OFF][OFF][ON][ON] [ON][OFF][OFF][ON] [ON][OFF]
Pentium II/Celeron 300MHz 4.5x 66MHz [OFF][OFF][ON][ON] [OFF][ON][OFF][ON] [ON][OFF]
Pentium II/Celeron 266MHz 4.0x 66MHz [OFF][OFF][ON][ON] [ON][ON][OFF][ON] [ON][OFF]
Pentium II 233MHz 3.5x 66MHz [OFF][OFF][ON][ON] [OFF][OFF][ON][ON] [ON][OFF]
For updated processor settings, visit the ASUS web site (see ASUS CONTACT INFORMATION)
