Intel Desktop Board D945PSN Product Guide

Connecting Power Supply Cables

CAUTION
Failure to use the appropriate power supply and/or not connecting the 12 V (2x2) power connector
to the desktop board may result in damage to the board or the system may not function properly.
See Table 3 on page 13 for power supply requirements. Figure 23 shows the location of the power
supply connectors.
1. Observe the precautions in "Before You Begin" on page 23.
2. Connect the main power supply cable to the 2x12 connector.
3. Connect the 12 V processor core voltage power supply cable to the 2x2 connector.
44
R
Intel 82945
(GMCH)
R
Intel 82801 Channel A DIMM 0
(ICH7)
1
Channel A DIMM 1

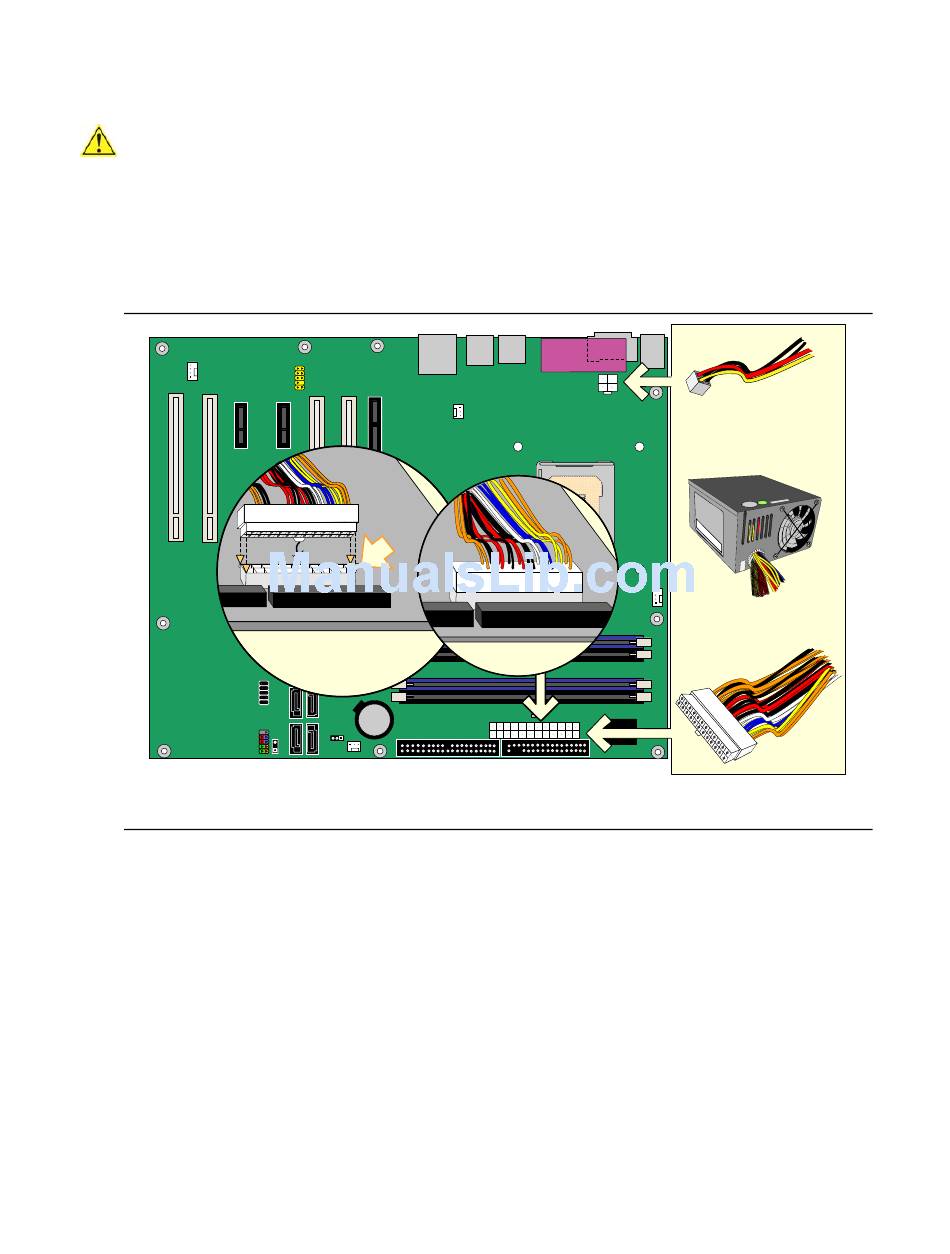

Figure 23. Connecting Power Supply Cables
2
OM17756
