Eizo TP1 User Manual

User's Manual
TP1
Pointer for Touch Panel Color LCD Monitor
Thank you very much for choosing an EIZO product.
Please read this User's Manual carefully to familiarize yourself with safe and effective usage procedures.
Please retain this manual for future reference.

Package Contents

Please contact your local dealer for assistance if any of the listed items are missing or damaged.
Touch Panel Pointer
________________________________________________________

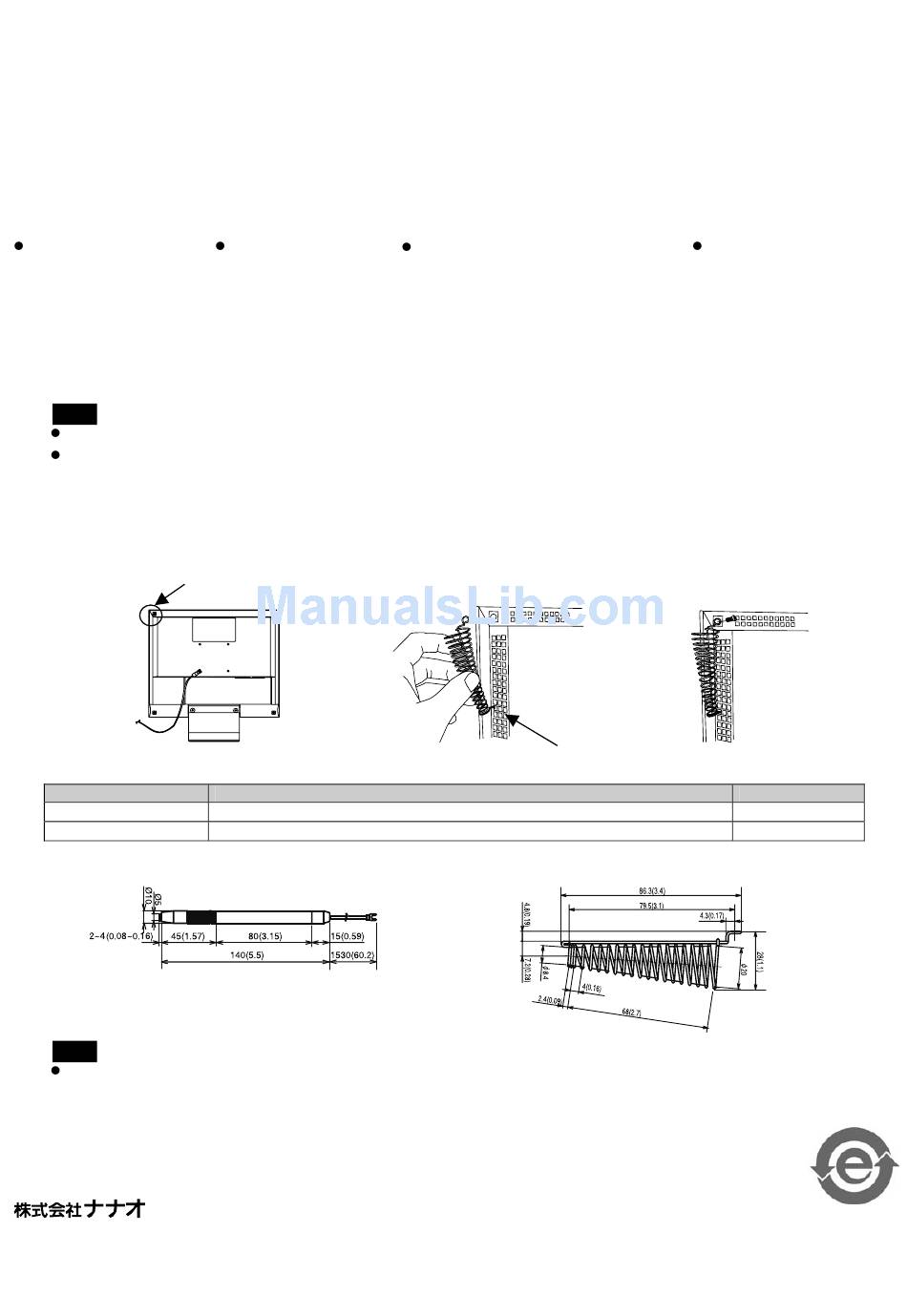

How to install

A driver is required to install the touch panel pointer and pointer holder.
1．

Touch Panel Pointer installation

Attach the wire lead of the pointer to the monitor by using the supplied screw.
NOTE
When the monitor has the stand-mounting holes on the rear, attach the TP1 into the lower hole.
When the monitor has the hole exclusively for TP1, attach the TP1 into it. (About the location of hole for TP1, refer to User's
Manual of the monitor.)
2．

Pointer Holder installation

(1) Remove the upper screw from the rear of the monitor.
(2) Insert the stopper of the holder into the ventilation slot of the monitor.
(3) Fix the holder on the monitor by using the screw removed at step (1).
(4) House the pointer into the holder.
(1)
________________________________________________________

Specifications

Touch Panel Pointer
Pointer Holder

■Dimensions

Touch Panel Pointer
●
NOTE
TP1 is designed for pointing on the screen. The drawing touch and dragging it on the touch panel is not guaranteed.
