Summary of Contents for Eizo UX2

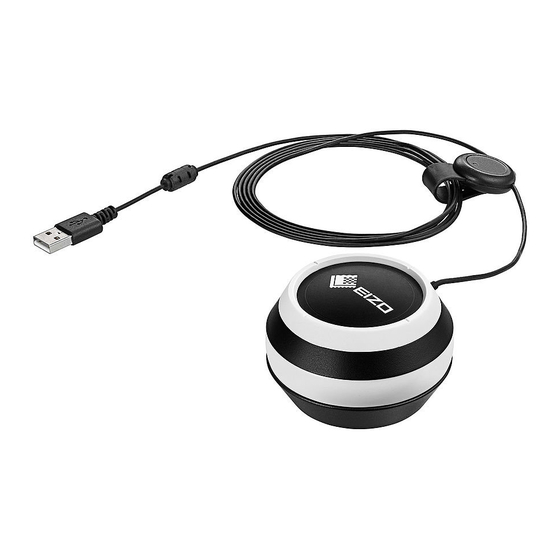

- Page 1 Instructions for Use Calibration Sensor Important Please read this “Instructions for Use” carefully to familiarize yourself with safe and effective usage. Please retain this manual for future reference.
-
Page 2: Safety Symbols
EIZO monitor specifications are subject to change without notice. EIZO, the EIZO Logo and RadiCS are registered trademarks of EIZO Corporation in Japan and other countries. All other company and product names are trademarks or registered trademarks of their respective owners. - Page 3 If an abnormal phenomenon, such as smoke, strange noise(s), or odor(s), is detected, immediately disconnect the product from the monitor or computer, and contact your EIZO representative. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
-
Page 4: Package Contents
*2 Only available when you purchase RadiCS UX2. Compatible Monitors This product is provided specifically for the EIZO RadiForce series monitor. Usage with a monitor that is not compatible may not be covered by the warranty. For details on the compatible monitors, refer to our web site. http://www.eizoglobal.com/... -
Page 5: Precautions For Use
Precautions for Use • Measurement accuracy may be compromised if the product is subjected to excessive impact, such as by being dropped, etc. If the product has been subjected to a strong impact, we recommend that you carry out calibration. •... - Page 6 Attaching the Product Attention • To use the UX2 Sensor, you need to install RadiCS in advance. For details, refer to the RadiCS User's Manual. • Wipe any dust, water droplets, dirt, etc. off the monitor screen before attaching the UX2 Sensor.
- Page 7 3. Attach the UX2 Sensor to the measurement position on the monitor screen. (Figure 1) The adsorptive sheet has a cover film at the time of shipment. Before attaching the sheet, peel the film off. Align the four lines in front of the UX2 Sensor with the cross line displayed in the measurement area.
- Page 8 If the adsorptive effect of the adsorptive sheet remains weak, replace it with a spare one. 1. Peel off the adsorptive sheet attached to the UX2 Sensor. 2. Peel the seal off from the spare adsorptive sheet, and attach it to the UX2 Sensor. Note...
- Page 9 1. Detach the UX2 Sensor from the monitor. Carefully pull the UX2 Sensor off from the bottom. 2. Insert the protective cap into the dent of the UX2 Sensor, and turn the protective cap to fix Attention • To prevent the detector area from becoming dusty, store the product with the protective cap attached.
-
Page 10: Product Care
Product Care Cleaning Attention • Using chemicals such as alcohol or disinfectant may lead to defects such as discoloring or color fading. • Never use thinner, benzene, wax, or polishing cleaner as these will damage the sensor section. To wipe off dirt, use the cleaning cloth supplied with this product. If you use the product while the detector area is dusty or dirty, measurement accuracy may be compromised. -
Page 11: Specifications
Specifications Interface Voltage and current ratings 5.0 ± 0.25 V, 50 mA Weight Approx. 100 g (Including the protective cap and cable) Dimensions 70.0 mm (Diameter) x 44.0 mm (Height) (Including protective cap) Temperature 16 °C - 30 °C Operating environment Humidity 20 % - 70 % (R.H., no dew) conditions... -
Page 12: Outside Dimensions
Outside Dimensions Units: mm 13.3 70.9 Φ30 Φ70... -
Page 13: Fcc Declaration Of Conformity
Trade name: EIZO Model: UX2 Sensor is in conformity with Part 15 of the FCC Rules. Operation of this product is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 14: China Rohs
China RoHS 关于电器电子产品有害物质限制使用标识 本标识根据 「电器电子产品有害物质限制使用管理办法」 ，适用于在中华人民共和国 销售的电器电子产品。 标识中央的数字为环保使用期限的年数。 只要您遵守该产品相 关的安全及使用注意事项，在自制造日起算的年限内，不会产生对环境污染或人体及 财产的影响。 上述标识粘贴在机器背面。 下表是依据SJ/T 11364-2014 的规定编制。 产品中有害物质的名称及含量 部件名称 有害物质 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 （Pb） （Hg） （Cd） （Cr（VI） ） （PBB） （PBDE） 印刷电路板 × ○ ○ ○ ○ ○ 机箱 ○ ○... -
Page 15: Recycling Information
Dieses Produkt muss gemäß den Vorschriften Ihres Landes zur Entlastung der Umwelt recyclet werden. Wenden Sie sich bei der Entsorgung dieses Produkts an einen Verteiler oder eine Tochtergesellschaft in Ihrem Land. Die Adressen zur Kontaktaufnahme sind auf der unten angegebenen Website von EIZO aufgeführt. http://www.eizoglobal.com Kunden in der Schweiz entnehmen Informationen zum Recycling der folgenden Website: http://www.swico.ch... -
Page 16: Informazioni Sul Riciclaggio
соответстви Cuando desee deshacerse de este producto, póngase en contacto con un distribuidor o una fi lial de su país. окружающу Encontrará las direcciones de contacto en el sitio web de EIZO que se indica a continuación. представите http://www.eizoglobal.com Контактные... -
Page 17: Informatie Over Recycling
Este produto, quando o deitar fora, deve ser recolhido e reciclado de acordo com a legislação do seu país para reduzir a poluição. Quando deitar fora este produto, contacte um distribuidor ou uma fi lial no seu país. Os endereços de contacto estão listados no website do EIZO, abaixo. http://www.eizoglobal.com... -
Page 18: Informace O Recyklaci
Ten produkt po zużyciu powinien być zbierany i przetwarzany zgodnie z krajowymi przepisami dotyczącymi ochrony środowiska. Wyrzucając ten produkt, należy skontaktować się z lokalnym dystrybutorem lub partnerem. Adresy Pri likvidácii kontaktowe można znaleźć we wskazanej poniżej witrynie internetowej fi rmy EIZO. prostredia. K http://www.eizoglobal.com Zoznam kon http://www.e... -
Page 19: Informácie O Recyklácii
страна за да се намали замърсяването на околната среда. Когато искате да се освободите от този продукт, моля свържете се с търговския му представител или със съответните органи отговарящи за това във вашата страна. Данните за връзка с нас са описани на следния Интернет сайт на EIZO: http://www.eizoglobal.com... -
Page 20: Geri Dönüşüm Bilgisi
Acest produs, când debarasat, trebuie colectat şi reciclat conform legislaţiei ţării rspective ca să reducem sarcina mediului. Când se debarasează de acest produs, vă rugăm să contactaţi un distribuitor sau un afi liat al ţării respective. Adresele de contact le găsiţi pe pagina de web al EIZO: http://www.eizoglobal.com Geri Dönüşüm Bilgisi... -
Page 21: Limited Warranty
The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period. EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR. - Page 22 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Belgrader Straße 2, 41069 Mönchengladbach, Germany 〒 924-8566 石川県白山市下柏野町 153 番地 00N0N008B1 www.eizoglobal.com UM-UX2-AL www.eizo.co.jp Copyright © 2017 - 2020 EIZO Corporation. All rights reserved. 2nd Edition - July, 2020 Printed in Japan.
