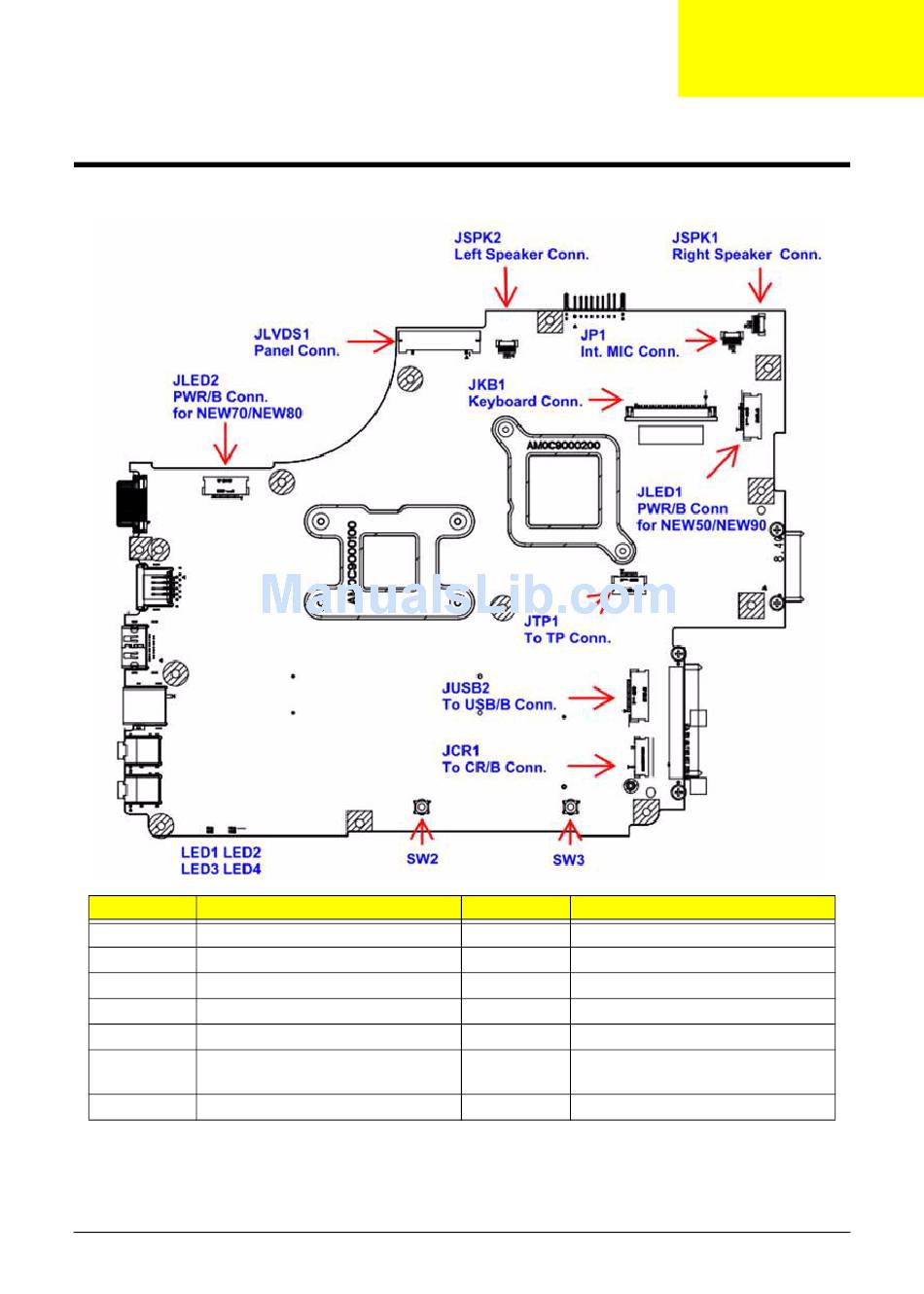

Jumper and Connector Locations

Top View

Item
JLVDS1
Connect to LED / CCFL Panel
JSPK2
Connect to Left Speaker
JSPK1
Connect to Right Speaker
JKB1
JTP1
Connect to Touch pad (FFC)
JUSB2
Connect to Power USB Board
JCR1
Connect Card Reader Board (FFC)
Chapter 5
Description
Connect to Keyboard
(FFC)
Item
JLED1
Connect to Powerboard (FFC)
JLED2
Connect to Powerboard (FFC)
JP1
Connect to internal MIC
SW2/SW3
Left button / Right button
LED1/LED3
Power State Indicator
LED2/LED4
Battery Charging Indicator
Chapter 5
Description
159
