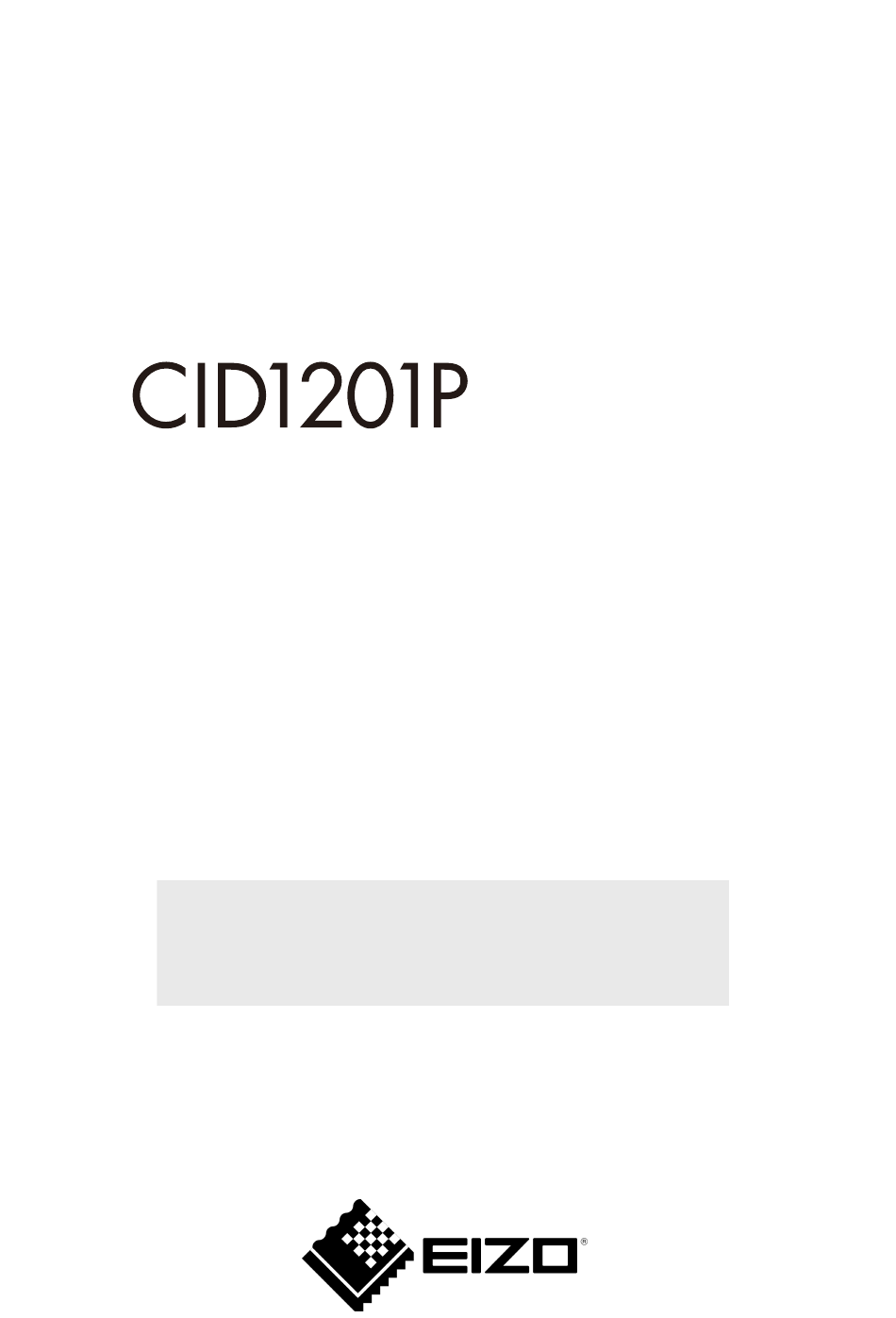

- Page 1 Instructions for Use Panel PC with Touchscreen and Software Important Please read the safety information and all information delivered with the product carefully to familiarize yourself with safe and effective usage.
-
Page 2: Legal Information
Use of EIZO products WARNING EIZO products may only be used for the applications described in the catalog and in the relevant tech- nical documentation. If products and components from other manufacturers are used, these must be recommended or approved by EIZO. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems. -
Page 3: Table Of Contents
Entering the target address .................. 20 Network settings ..................... 21 Access to the Large Monitor Manager (LMM) ............ 22 7 Operation......................... 23 Switching on / off .................... 23 Touchscreen ...................... 24 8 Cleaning and maintenance .................... 25 Cleaning and maintenance .................. 25 Disinfection ...................... 25 9 Troubleshooting ...................... 26 CID1201P Instructions for Use, 05/2019... - Page 4 11 Appendix ......................... 28 11.1 Guidelines and manufacturer's declaration – electromagnetic emissions .... 28 11.2 Warranty ......................... 28 11.3 Repairs ........................ 28 11.4 Environmental protection .................. 28 11.5 Additional devices.................... 28 11.6 Contact ........................ 28 11.7 Trademarks...................... 29 11.8 Manufacturer's information .................. 29 Index .......................... 30 CID1201P Instructions for Use, 05/2019...
-
Page 5: Introduction
This documentation is available in electronic format only. It can be found on the CD-ROM provided and can be downloaded from www.eizo-or.com. This document explains the functionality and the approved use of the CID1201P. To ensure clarity, it does not contain all detailed information on this product. -
Page 6: Safety Information
2 Safety information 2.1 General safety instructions Correct and safe operation of EIZO devices assume professional transport, storage, installa- tion, and connection, as well as careful operation and service. The devices may only be used for applications for which they are intended. - Page 7 Connection in China Only use power cables approved for China. These power cables are identified by the labels "CCC" or "CQC". Observe the country-specific regulations Observe all regulations of the country in which the device is used. CID1201P Instructions for Use, 05/2019...
- Page 8 If the device is brought into a room with a higher or rising temperature, condensed water will form in and on the device. Do not switch on the device until the condensed water has evaporated. Otherwise, the device could be damaged. CID1201P Instructions for Use, 05/2019...
- Page 9 If the device smells of burning or makes peculiar noises. Be aware of the monitors aging Note that monitors can fail as a result of aging, and that image properties such as brightness, con- trast,and color value can change. CID1201P Instructions for Use, 05/2019...
-
Page 10: Product-Specific Safety Instructions
2.2 Product-specific safety instructions NOTICE Network security The CID1201P has been secured with a BIOS password, blocked network ports, and other security measures. Nevertheless, the CID1201P is based on standard computer and net- work technology. • Make sure the network environment is secure. -
Page 11: Description
3.2 Intended use The CID1201P is a panel PC with touchscreen and appropriate software, and is used as an interface to select and switch among various predefined layouts in the EIZO video manage- ment system, which are then displayed on the corresponding monitors. -
Page 12: Features
IP address. Additional security measures integrated into the application With security measures such as service passwords, blocked network ports, and restricted system access, the CID1201P application is designed for robust and secure use in the OR environment. CID1201P... -
Page 13: Setup And Installation
Protect the panel PC from dust, for example through appropriate construction measures at the installation site. • During transport, use the original packaging. Avoid reflections on the screen The CID1201P panel PC has a touchscreen that is only effective if the screen is clean and grease-free. CID1201P Instructions for Use, 05/2019... -
Page 14: Installation In A Vesa Holder
Ensure that such mechanical influences are avoided. Movable installation If the CID1201P is installed such that it can move, make sure that persons or objects in the facility are not endangered by the range of movement of the CID1201P. 4.2 Installation in a VESA holder The Panel PC is installed such that the main interfaces point downward. -
Page 15: Connecting
• Externally connected cables can represent a trip hazard. Make sure that all incoming cables are safely routed. • If the device offers strain relief mechanisms for the cables, use them to prevent unin- tended loosening of connected cables. CID1201P Instructions for Use, 05/2019... -
Page 16: Device Connectors
On/off switch If the CID1201P is equipped with an on/off switch, it can be used to turn the device on and off. In this case the power supply unit in standby continues to be supplied with voltage and the device is not fully disconnected from line power. -
Page 17: Connecting The Keyboard
Connecting 5.4 Connecting the keyboard 5.4 Connecting the keyboard A keyboard is required to configure the CID1201P. Use one of the available USB ports to connect the keyboard. Note US keyboard layout Every keyboard connected to the CID1201P is interpreted as having a US keyboard lay- out. -
Page 18: Commissioning
Manager (LMM). As described in the following, the CID1201P has a set-up function for setting the IP address of the LMM as well as its own IP address. In addition, the CID1201P has a function for cali- brating a resistive touchscreen. -
Page 19: Calibrating The Resistive Touchscreen
3. Press the center of the crosshairs displayed sequentially at various calibration positions on the touchscreen. Note: EIZO recommends using a soft plastic stylus with a small head for the calibration, so that the centers of the crosshairs are pressed as precisely as possible. -
Page 20: Entering The Target Address
CID1201P: Note • Ensure that the target address set in the CID1201P uses the same network prefix and subnet as the LMM, for example, 169.254.213.xxx. • The LMM0802 or LMM0804 can be operated via the standard interface or View Man- agement. -
Page 21: Network Settings
DHCP is a standard IT protocol and under normal circumstances assigns a suitable IP ad- dress to the CID1201P within a matter of seconds. If DHCP is active and there is no DHCP server in the network, or the network connection is blocked, the CID1201P attempts to es- tablish a connection to the server for up to 60 seconds. -
Page 22: Access To The Large Monitor Manager (Lmm)
LMM0801 • LMM0802 • LMM0804 After being switched on, the CID1201P connects automatically to the LMM specified in the target address. As soon as the connection is established you can perform operations [} 23] on the LMM. Note If an error message is displayed after switching on, check whether the target address and network settings are correct, the network is running, and all cables are correctly con- nected, before contacting Service. -
Page 23: Operation
On / off switch If the CID1201P is equipped with an on/off switch, it can be used to turn the device on and off. In this case the power supply unit in standby continues to be supplied with voltage and the device is not fully disconnected from line power. -
Page 24: Touchscreen
Cleaning and maintenance [} 25]. The CID1201P touchscreen enables the user to perform operations with the touch of a fin- ger that would otherwise have to be performed with a mouse. When configured correctly, the CID1201P automatically connects to the specified Large Monitor Manager (LMM) after booting. -
Page 25: Cleaning And Maintenance
Observe the cleaning information from the panel PC manufacturer. The documentation is available on the documentation CD provided. 8.2 Disinfection NOTICE Never sterilize the CID1201P in a steam autoclave, and never immerse or rinse in water or other solutions. CID1201P Instructions for Use, 05/2019... -
Page 26: Troubleshooting
To ensure proper and safe operation of the device, the ambient temperature must remain within the permissible ambient temperature range. • Observe the information from the panel PC manufacturer. Note Observe the troubleshooting information in the manufacturer’s panel PC instructions for use. CID1201P Instructions for Use, 05/2019... -
Page 27: Technical Specifications
10.2 Electromagnetic compatibility (EN60601-1-2) Secure network with CID1201P If a network of electrical devices is operated, the user is responsible for ensuring that the entire system meets the requirements of the following guidelines for medical electrical de-... -
Page 28: Appendix
The device is in compliance with directive 2011/65/EU for limiting the use of specific haz- ardous materials in electric and electronic devices. 11.5 Additional devices Connected devices such as network routers must meet the relevant safety standards. 11.6 Contact Support during installation and for technical questions www.eizo-or.com CID1201P Instructions for Use, 05/2019... -
Page 29: Trademarks
All other trademarks are the properties of their respective owners. 11.8 Manufacturer's information EIZO is the distributor of the CID1201P. Additional information on the device hardware is available in the manufacturer's instructions for use. The CID1201P name plate contains the name of the manufacturer. -
Page 30: Index
28 Environment 13 General safety instructions 6 Keyboard 17 Keyboard layout 17 Network settings 21 Service personnel 5 Setup menu 18 Shielding measures 15 Target address 20 Touchscreen (resistive) Calibrating 19 User 5 Warranty 28 CID1201P Instructions for Use, 05/2019... - Page 32 Carl-Benz-Straße 3 76761 Rülzheim Germany Instructions for Use, 05/2019 CID1201P 1074770-002 Copyright © 2019 EIZO GmbH. All rights reserved.
