EIKI VISUAL SYSTEM PRESENTER
V-2500
OWNER'S INSTRUCTION MANUAL
EIKI INDUSTRIAL CO., LTD.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Visual System Presenter V-2500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eiki Visual System Presenter V-2500

Summary of Contents for Eiki Visual System Presenter V-2500

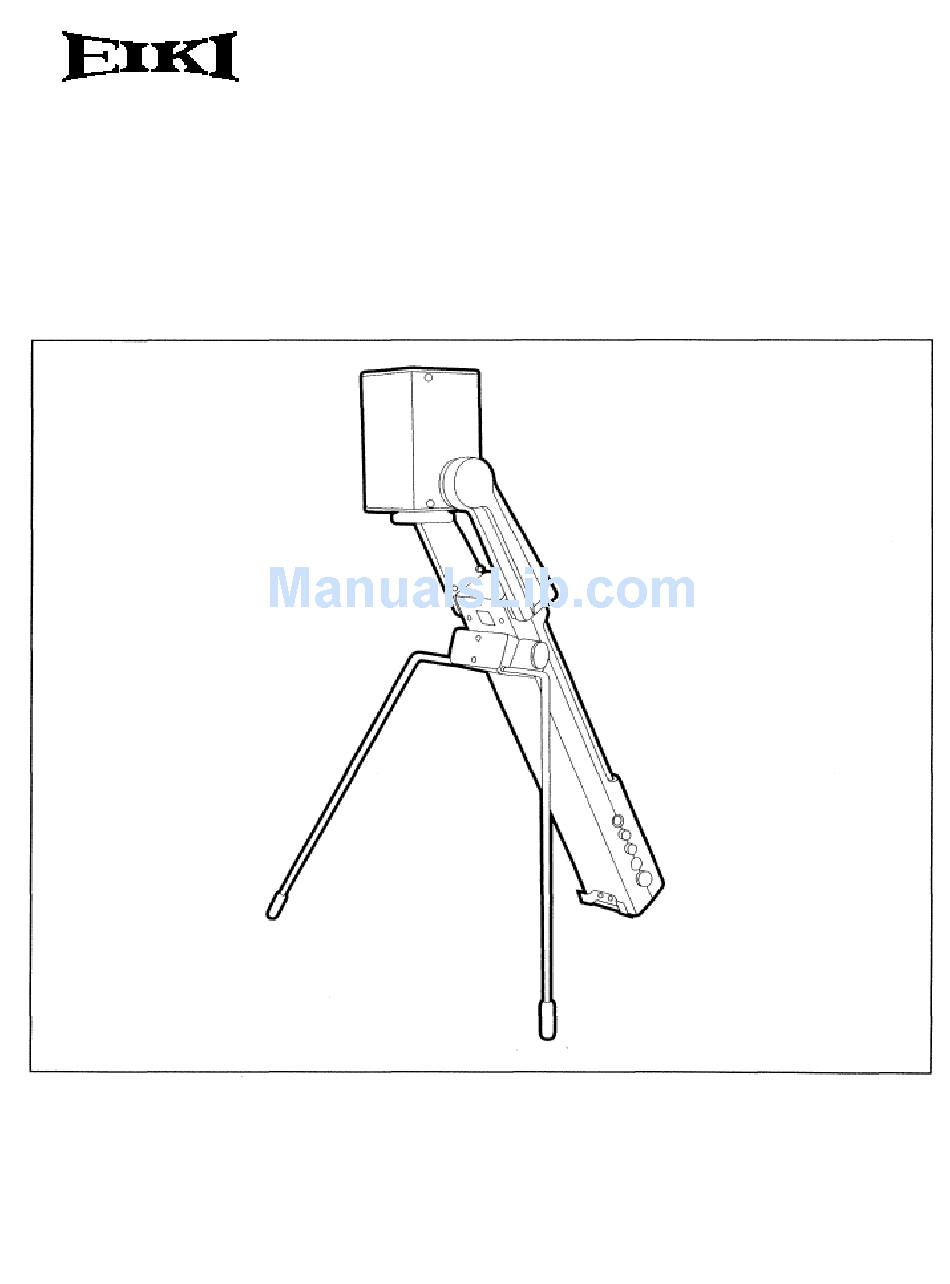

  • Page 1 EIKI VISUAL SYSTEM PRESENTER V-2500 OWNER’S INSTRUCTION MANUAL EIKI INDUSTRIAL CO., LTD.

  • Page 2: Important Safeguards

    WARNING To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated ‘dangerous voltage” within the unit’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 Accessories - Do not place this unit on an unstable can, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a can, stand, tripod, bracket, or table recommended by the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

  • Page 4: Save These Instructions

    15. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 16. Object and Liquid Entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or shod-out pads that could result in a fire or electric shock.

  • Page 5: Table Of Contents

    TABLE OF CONTENTS 1. DESCRIPTION AND CONTROLS 2. SETTING-UP REMOTE CONTROL UNIT 3. ORERATION OF REMOTE CONTROL 4. SETTING-UP THE UNIT 5. HOW TO CONNECT TO A TV MONITOR AND EXTERNAL EQUIPMENT 6. HOW TO USE AUTO FOCUS 7. HOW TO DISPLAY 8.

  • Page 7: Description And Controls

    DESCRIPTION AND CONTROLS CAMERA HEAD Rotate to shoot the printed materials and three-dimensional objects in shooting area and to shoot the distance objects. REMOTE CONTROL STORAGE Remote control unit works also when seating in the housing. S-VIDEO OUTPUT JACK Used to connect TV monitor or VCR with S-VIDEO input jack. VIDEO OUTPUT JACK (2) Used to connect TV monitor or VCR with video input jack.

  • Page 8: Setting-Up Remote Control Unit

    SETTING-UP REMOTE CONTROL UNIT To insure safe operation, please observe the following precautions • Use (2) AA type batteries. • Do not use different type batteries and a new and with a used battery. • Do not discharge and disassemble a battery. •...

  • Page 9: Operation Of Remote Control

    OPERATION OF REMOTE CONTROL CAUTION 1. Memory Function The setting orders are memorized even if the unit is OFF. Press NORMAL button to restore the setting orders and return to factory preset. 2. When press on the Digital Zoom, Electronic Zoom function operates after 18 times optical zooming.

  • Page 10: Setting-Up The Unit

    4. SETTING- UP THE UNIT CAUTION Disconnect power for setting up the unit. Remove two legs from Leg stopper. Spread two legs to the set up position. Lift up the legs to the set up position. Rotate Camera head until Lens Remove a Remote control unit.(it also works while it is seated in the Remote control storage.

  • Page 11: How To Connect To A Tv Monitor And External Equipment

    5. HOW TO CONNECT TO A TV MONITOR AND EXTERNAL EQUIPMENT CONNECT THE UNIT AND TV MONITOR WITH VIDEO CABLES SUPPLIED AS STANDARD ACCESSORIES. Video output jack of the unit connected to video input jack (S-VIDEO or VIDEO) of TV monitor with video cable.

  • Page 12: How To Use Auto Focus

    6. HOW TO USE AUTO FOCUS There are three kinds of auto focus mode One-Shot Auto Focus Mode This mode is to fix the focus just once when an image is set up on screen, so still material or object. Auto Focus Mode This mode is to let focusing meet each image, so it is proper for the moving material or when materials are changed frequently.

  • Page 13: How To Display

    7. HOW TO DISPLAY A. When displaying printed material. Connect power of the unit. Blue back image appears on the monitor and then image of the printed material will be displayed. Put the printed material below the lens and operate Zoom switch watching TV monitor according to the size of the material.

  • Page 14: Specifications

    9. SPECIFICATIONS Lens shooting Area (*1) Zooming Electronic Zooming Focusing Iris TV system Image pick-up element All picture element Effective picture element Synchronization Horizontal Resolution S/N ratio Video output level White balance Shutter speed Nega/Posi reverse Black & White Mode (*2) Brightness Adjustment Image Outline Adjustment(*2)
  • Page 15 Power supply Power consumption Dimensions Weight Standard accessories Operation Temperature Operation Humidity *1 Shooting area will get a little bit smaller than 305X225mm when monitoring at overscanning. *2 All functions can be controlled only by the remote control unit. AC Adaptor DC 6.5V (as standard Acc.) 3.5W 350(W) X 275(D) X 463(H)mm(SET-UP) 130(W) X 500(D) X 85(H)mm(FOLDED)
  • Page 16 AUDIO VISUAL/VIDEO PRODUCTS EIKI INDUSTRIAL CO., LTD. 4-12 Banzai-cho Kita-ku OSAKA, JAPAN Tel:6-631 l-9479~Fax:6-63I 1-8486 EIKI INTERNATIONAL, INC. 26794 Vista Terrace Drive, Lake Forest, CA92630-8 113 U.S.A Tel: 949-457-0200~ Fax: 949-457-7877 EIKI INTERNATIONAL, INC.CANADA BR. P.O. BOX 156 310 First Street Unit 2 Midland, Ontario, L4R 4K8 Canada...
