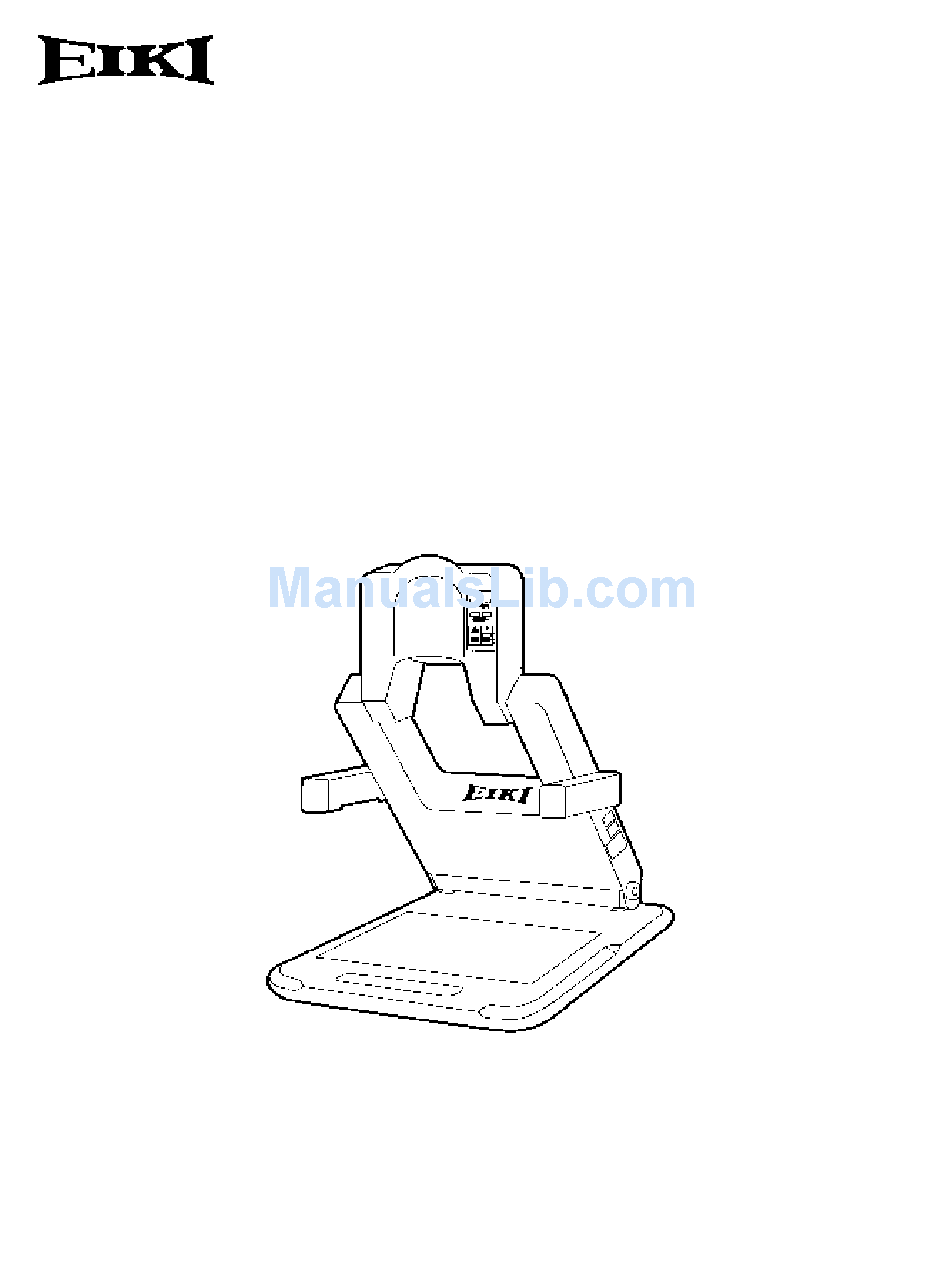

EIKI VISUAL SYSTEM PRESENTER
V-5300
OWNER'S INSTRUCTION MANUAL
EIKI INDUSTRIAL CO., LTD.

Advertisement

loading
Need help?

Need help?

Do you have a question about the V-5300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Eiki V-5300

Summary of Contents for Eiki V-5300

  • Page 1 EIKI VISUAL SYSTEM PRESENTER V-5300 OWNER’S INSTRUCTION MANUAL EIKI INDUSTRIAL CO., LTD.

  • Page 2: Important Safeguards

    WARNING To reduce the risk of fire or electric shock, do not expose this unit to rain or moisture. The lighting flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage’...
  • Page 3 8. Accessories - Do not place this unit on an unstable can, stand, tripod, bracket, or table. The unit may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cad, stand, tripod, bracket, or table recommended by the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
  • Page 4 15. Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock. 16. Object and Liquid Entry - Never push objects of any kind into this unit through openings as they may touch dangerous voltage points or shod-out pads that could result in a fire or electric shock.
  • Page 5 TABLE OF CONTENTS 1. DESCRIPTION AND CONTROLS 2. SETTING-UP REMOTE CONTROL UNIT 3. ORERATION OF REMOTE CONTROL 4. SETTING-UP THE UNIT 5. HOW TO CONNECT TO A TV MONITOR AND EXTERNAL EQUIPMENT 6. HOW TO USE AUTO FOCUS 7. HOW TO DISPLAY 8.
  • Page 7 1. ZOOM SWITCH To adjust image size. 2. FOCUS SWITCH To adjust focus manually.(This switch changes auto focus mode to manual focus mode, and LED of AUTO display will light off. If you want auto focus mode, push auto switch, and LED of AUTO display will light.) 3.
  • Page 8 To insure safe operation, please observe the following precautions • Use(2)AA type batteries. • Do not use different type batteries and a new and with a used battery. • Do not discharge and disassemble a battery. • Be sure the battery polarity should be set properly and do not contact anode and cathode terminal. •...
  • Page 9 CAUTION 1. Monitor indicates as BRIGHT, RED, BLUE on the screen when Mode Selection Key of BRIGHT COLOR R COLOR B is pressed. Level adjustment can be made by Level Keys when those indications are shown on the screen. 2. Memory Function The setting orders are memorized even if the unit is OFF.
  • Page 10 CAUTION When setting-up the unit, make sure the Power Off to reduce the risk of electric shock. 1. Press set buttons to lift up the main body and release set buttons. Lift the main body until it locks securely in the set up position.
  • Page 11 CONNECT THE UNIT AND TV MONITOR WITH VIDEO AND AUDJO CABLES SUPPLIED AS STANDARD ACCESSORIES. 1. Video output jack of the unit connected to video input jack (S-VIDEO or VIDEO) of TV monitor with video cable. 2. When a microphone is used, audio output jack of the unit is connected to audio input jack of TV monitor with audio cable.
  • Page 12 There are three kinds of auto focus mode One-Shot Auto Focus Mode This mode is to fix the focus just once when an image is set up on screen, so it is proper for the still material or object. Auto Focus Mode This mode is to let focusing meet each image, so it is proper for the moving material or when materials are changed frequently.

  • Page 13: How To Display

    A When displaying printed material and three-dimensional object. Turn on the unit. Push LAMP SELECT SWITCH toward UPPER to light auxillary lamp. NOTE: if the halation would appear on monitor, make angle adjustment of lighting unit. Operate Zooming so as to obtain the desired display size. Note: if focus is out after zooming operation, push Auto Focus switch once.
  • Page 14 A microphone Pre-amplifier is built-in. When a microphone is connected to MICROPHONE INPUT JACK of the unit, PA system is available using TV monitor’s speaker. FOLDING-DOWN Return lighting unit to pie-position. Return camera body to pie-position. Press the set buttons to release the lock and fold down the body on the stage.
  • Page 15 DISCONNECT AC POWER CORD BEFORE LAMP AND FUSE REPLACEMENT. FUSE REPLACEMENT LIGHTING LAMP REPLACEMENT...
  • Page 16 NOTE : Conversion lens has to be put on when projecting the objects on stage. SYMPTOM No Power No Image Focus is Out Dark Image Lamp not light at once when LAMP SELECT SWITCH is ON Difficult to push SET Button when folding down CAUSE Plug not connected to outlet...
  • Page 17 Lens Shooting Area Zooming Electric Zooming Focusing Iris Top Lighting Stage Back Lighting TV system Image pick-up element All picture element Effective picture element Synchronization Horizontal Resolution S/N ratio Video output level White balance Shutter speed Nega/Posi reverse Black & White Mode Color Adjustment(*2) Brightness Adjustment(*2) Image Outline...
  • Page 18 Power supply Power consumption Dimensions Weight Standard accessories Operation Temperature Operation Humidity ~1 Shooting area will get a little bit smaller than 330 >(240mm when monitoring at overscanning. *2 All functions can be controled only by the remote control unit. AC1 10-120V 50-60Hz 300mA 394(W) X 454(D)
  • Page 20 AUDIO VISUAL/VIDEO PRODUCTS EIKI INDUSTRIAL CO., LTD. 4-12 Banzai-cho Kita-ku OSAKA, JAPAN Tel :6-631! -9479k Fax:6-63 11-8486 EIKI INTERNATIONAL, INC. 26794 Vista Terrace Drive, Lake Forest, CA92630-81 13 U.S.A Tel :949-457-0200~ Fax:949-457-7877 EIKI INTERNATIONAL,INC.CANADA BR. P.O. BOX 156 310 First Street Unit 2 Midland, Ontario. L4R 4K8 Canada Tel:800-563-3454•...
