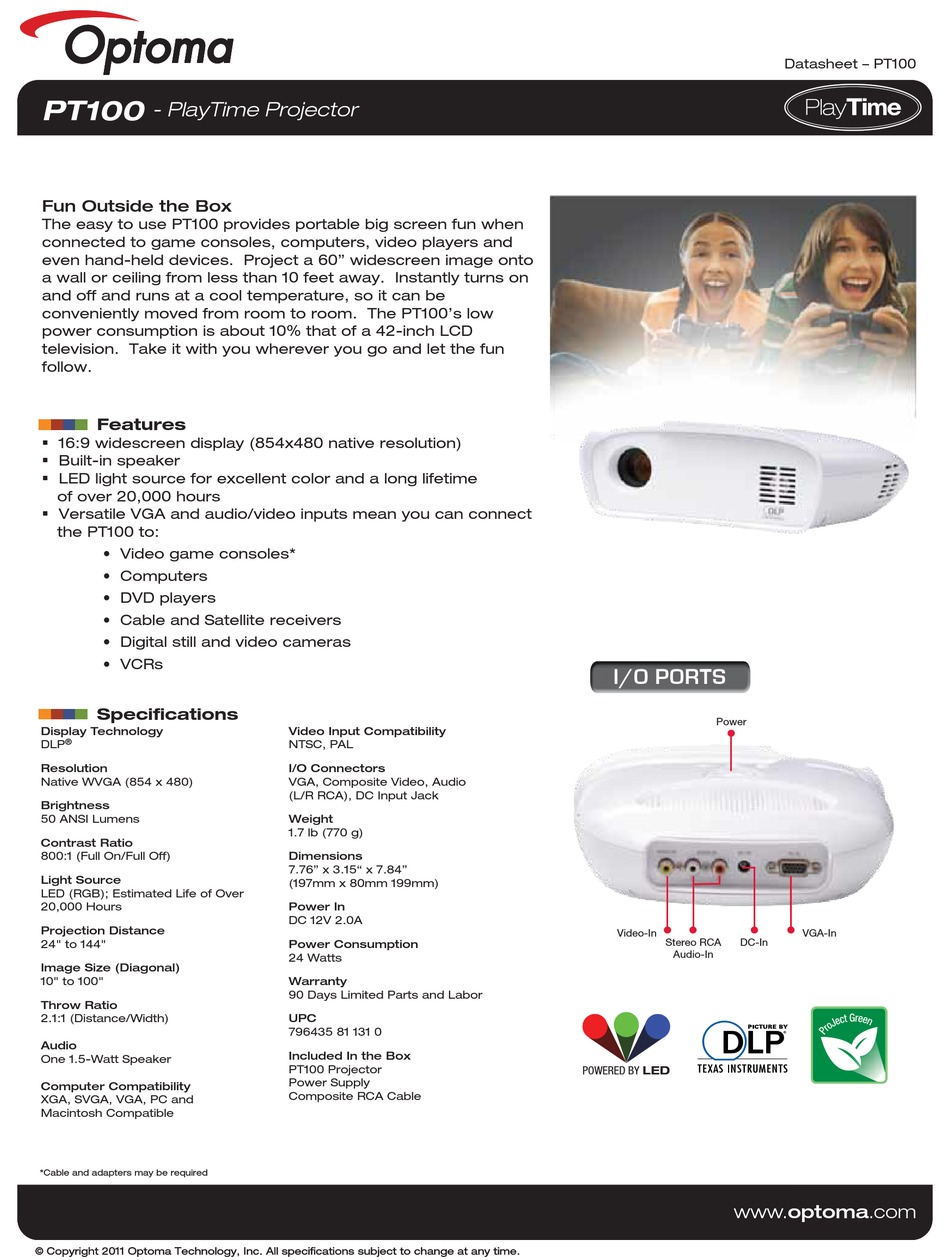

Optoma PT100 Datasheet

PT100
- PlayTime Projector
Fun Outside the Box
The easy to use PT100 provides portable big screen fun when
connected to game consoles, computers, video players and
even hand-held devices. Project a 60" widescreen image onto
a wall or ceiling from less than 10 feet away. Instantly turns on
and off and runs at a cool temperature, so it can be
conveniently moved from room to room. The PT100's low
power consumption is about 10% that of a 42-inch LCD
television. Take it with you wherever you go and let the fun
follow.
Features
 16:9 widescreen display (854x480 native resolution)
 Built-in speaker
 LED light source for excellent color and a long lifetime
of over 20,000 hours
 Versatile VGA and audio/video inputs mean you can connect
the PT100 to:
• Video game consoles*
• Computers
• DVD players
• Cable and Satellite receivers
• Digital still and video cameras
• VCRs

Specifications

Display Technology
®
DLP
Resolution
Native WVGA (854 x 480)
Brightness
50 ANSI Lumens
Contrast Ratio
800:1 (Full On/Full Off)
Light Source
LED (RGB); Estimated Life of Over
20,000 Hours
Projection Distance
24" to 144"
Image Size (Diagonal)
10" to 100"
Throw Ratio
2.1:1 (Distance/Width)
Audio
One 1.5-Watt Speaker
Computer Compatibility
XGA, SVGA, VGA, PC and
Macintosh Compatible
*Cable and adapters may be required
© Copyright 2011 Optoma Technology, Inc. All specifications subject to change at any time. © Copyright 2011 Optoma Technology, Inc. All specifications subject to change at any time.
Video Input Compatibility
NTSC, PAL
I/O Connectors
VGA, Composite Video, Audio
(L/R RCA), DC Input Jack
Weight
1.7 lb (770 g)
Dimensions
7.76" x 3.15" x 7.84"
(197mm x 80mm 199mm)
Power In
DC 12V 2.0A
Power Consumption
24 Watts
Warranty
90 Days Limited Parts and Labor
UPC
796435 81 131 0
Included In the Box
PT100 Projector
Power Supply
Composite RCA Cable
I/O PORTS
Power
Video-In
Stereo RCA DC-In
Audio-In
POWERED BY LED
www.optoma.com www.optoma.com
Datasheet – PT100
VGA-In
