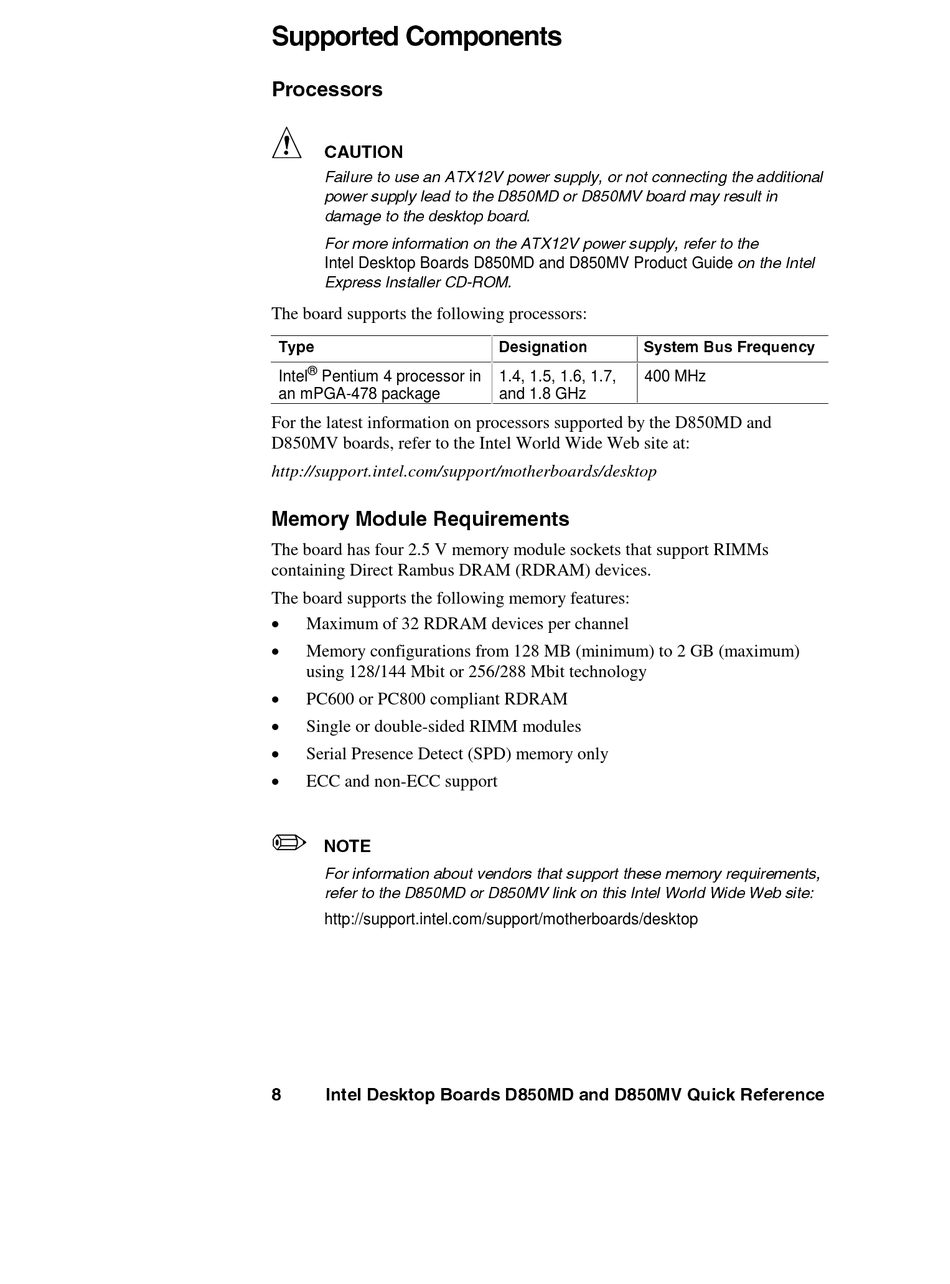

Intel Desktop Boards D850MD and D850MV Product Guide
The board supports the following processors:
®
Intel Pentium 4 processor in
an mPGA-478 package
For the latest information on processors supported by the D850MD and
D850MV boards, refer to the Intel World Wide Web site at:
http://support.intel.com/support/motherboards/desktop
The board has four 2.5 V memory module sockets that support RIMMs
containing Direct Rambus DRAM (RDRAM) devices.
The board supports the following memory features:
x
Maximum of 32 RDRAM devices per channel
x
Memory configurations from 128 MB (minimum) to 2 GB (maximum)
using 128/144 Mbit or 256/288 Mbit technology
x
PC600 or PC800 compliant RDRAM
x
Single or double-sided RIMM modules
x
Serial Presence Detect (SPD) memory only
x
ECC and non-ECC support
http://support.intel.com/support/motherboards/desktop
1.4, 1.5, 1.6, 1.7, 400 MHz
and 1.8 GHz
