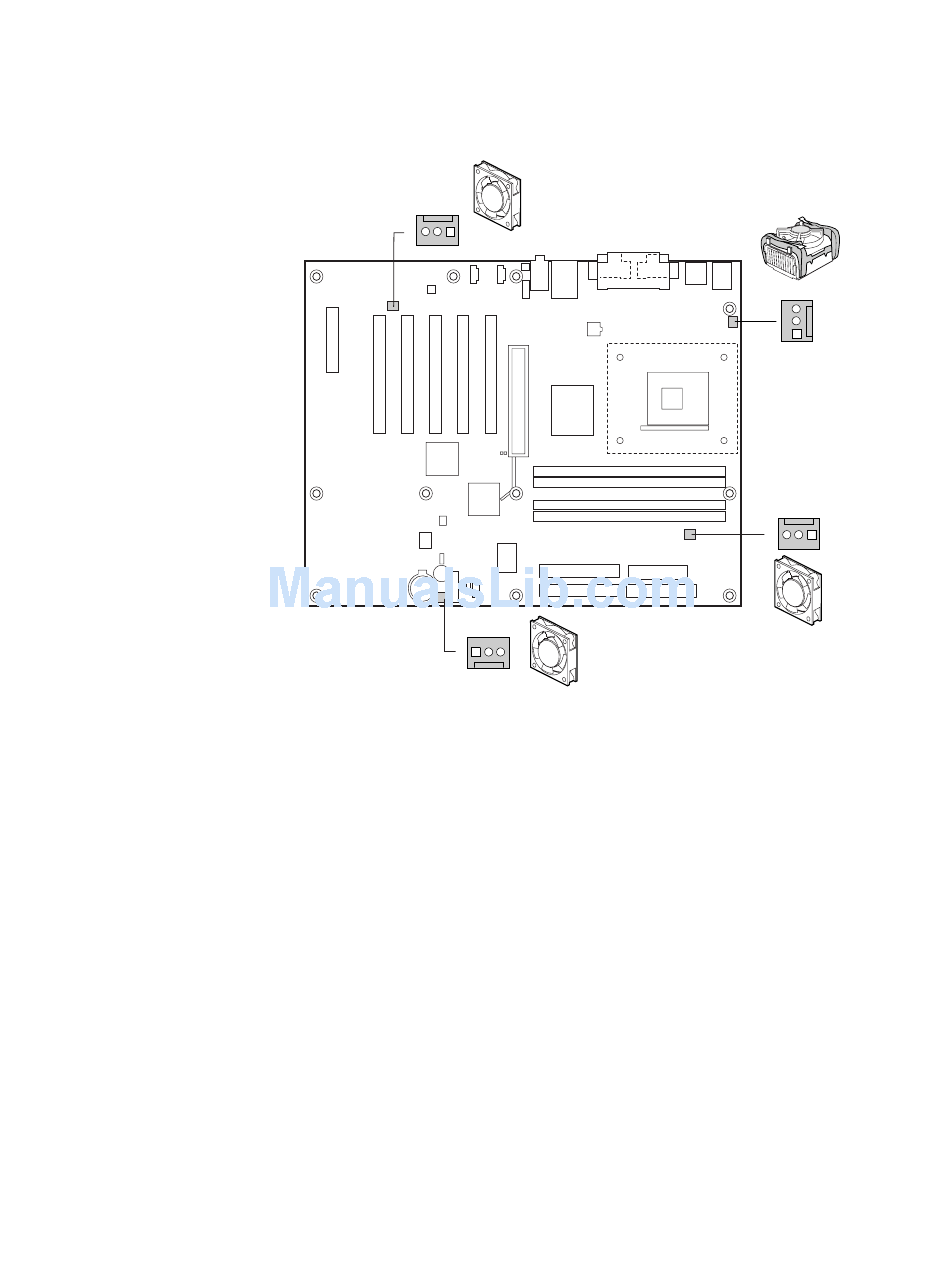

The following figure shows the location of the fan connectors for the D850MV
board. Connect the processor's fan heatsink cable to the processor fan
connector on the board. Connect the chassis fan cables to the board connectors
as shown in the figure below. The processor fan and fan 2 can be monitored via
the Intel Active Monitor software application.
Fan 3
1
3
Fan 2
1
7%"FUÁ5€fƒiÁ9fyÁ6€yyph…€ƒ„Á
3
Processor Fan
3
1
Fan 1
1
3
OM12075
