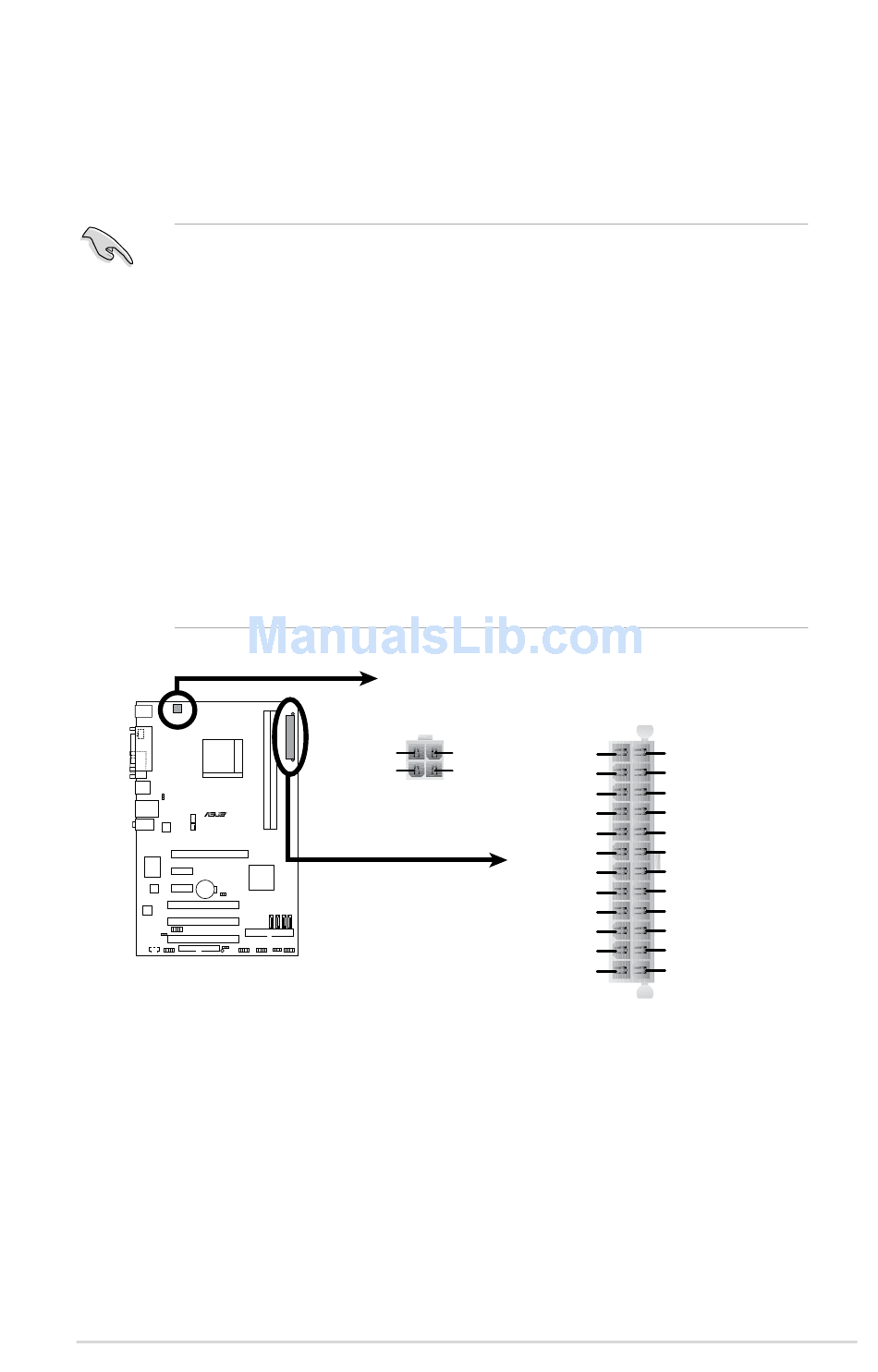

9. ATX power connectors (24-pin EATXPWR, 4-pin ATX12V)
These connectors are for an ATX power supply. The plugs from the power
supply are designed to fit these connectors in only one orientation. Find the
proper orientation and push down firmly until the connectors completely fit.
• We recommend that you use an ATX 12 V Specification 2.0-compliant
power supply unit (PSU) with a minimum of 300 W power rating. This PSU
type has 24-pin and 4-pin power plugs.
• If you intend to use a PSU with 20-pin and 4-pin power plugs, ensure that
the 20-pin power plug can provide at least 15 A on +12 V and that the PSU
has a minimum power rating of 300 W. The system may become unstable
or may not boot up if the power is inadequate.
• Do not forget to connect the 4-pin ATX +12 V power plug. Otherwise, the
system will not boot up.
• We recommend that you use a PSU with higher power output when
configuring a system with more power-consuming devices. The system
may become unstable or may not boot up if the power is inadequate.
• You must install a PSU with a higher power rating if you intend to install
additional devices.
R
M2N-X PLUS
M2N-X PLUS ATX Power Connector
ASUS M2N-X PLUS
ATX12V
+12V DC +12V DC
GND GND
EATXPWR
+3 Volts Ground
+12 Volts +5 Volts
+12 Volts +5 Volts
+5V Standby +5 Volts
Power OK -5 Volts
Ground Ground
+5 Volts Ground
Ground Ground
+5 Volts
Ground Ground
+3 Volts
+3 Volts +3 Volts
PSON#
-12 Volts
1-29
