1.10 Connectors

1.10.1

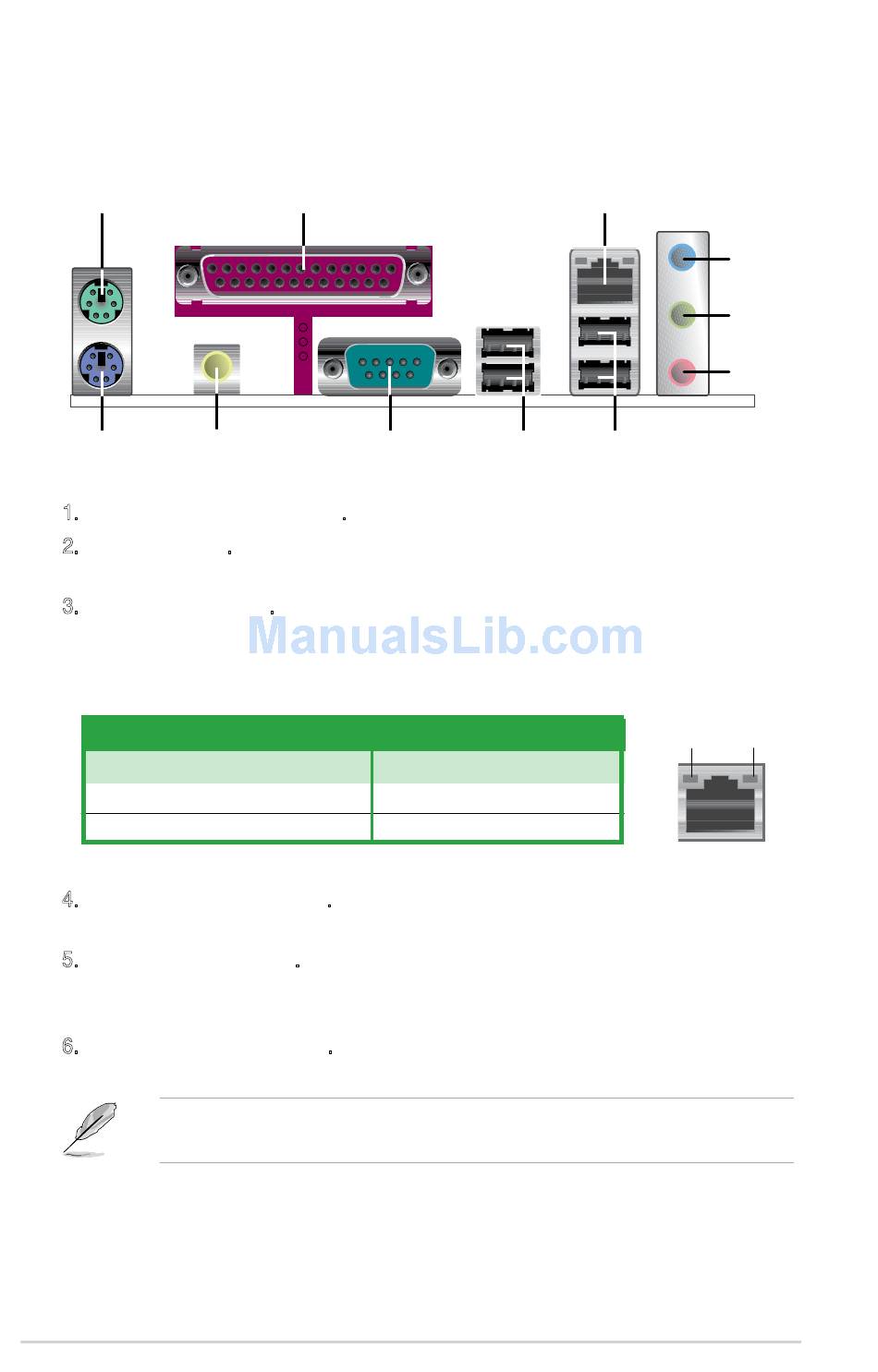

Rear panel connectors

1
11
PS/2 mouse port (green). This port is for a PS/2 mouse.
1.
Parallel port. This 25-pin port connects a parallel printer, a scanner, or other
2.
devices.
LAN (RJ-45) port. This port allows 10/100 PHY connection to a Local Area
3.
Network (LAN) through a network hub.
LAN port LED indications
LED (Orange)
Status
OFF
ORANGE 100 Mbps connection
Line In port (light blue). This port connects a tape, CD, DVD player, or other
4.
audio sources.
Line Out port (lime). This port connects a headphone or a speaker. In
5.
4-channel/ 6-channel configuration, the function of this port becomes Front
Speaker Out.
Microphone port (pink). This port connects a microphone.
6.
Refer to the audio configuration table for the function of the audio ports in 2, 4,
or 6-channel configuration.
1-22
2
10
Description
No link
9 8
LED (Green)
Status Description
OFF No link
GREEN 10 Mbps connection
3
7
LED
(Orange)
LAN port
